1080P AHD CVI TVI Video RS485 Data Converter
Introduction
OM615-4V↑1D↓WT/R fiber optic video converter is designed for transmitting AHD/HDTVI/HDCVI video signals.
Features
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 4ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
| RS485 Data | |
| Channel Quantity | 1ch, from control room to camera |
| Data Rate | 115Kbps |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Weight | 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
| Dimension-standalone | 179mm ×128.5mm ×28.5mm |
Ordering Details
| OM615-4V↑1D↓WT/R-FC20 | 4ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC connector |
| OM615-4V↑1D↓MT/R-FC5 | 4ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC connector |
Application
FAQ
1. What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.
2. How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
3. Do you do reselling or distribution?
Yes. Olycom has been in the telecommunication field for about 20 years and gained good reputation in the domestic market.
We are actively seeking overseas agents/reseller/distributors to promote our brand and products.

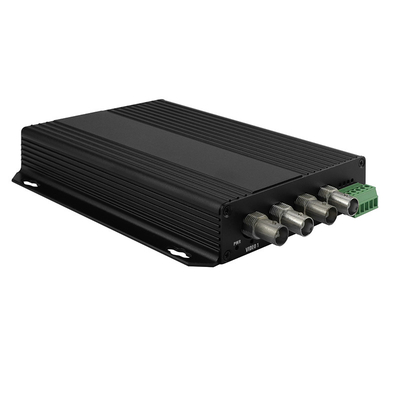

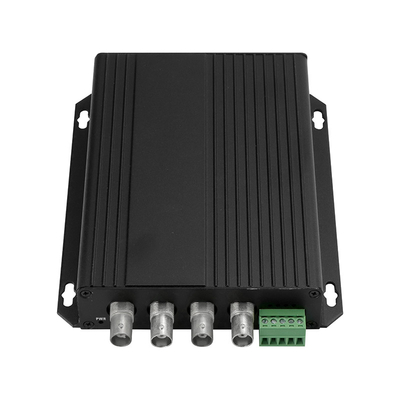

Product Images
