Fiber Optic Converter Fiber Modem Industrial Wall Mount
Introduction of Fiber Optic Converter
OM2101-RS232 is an industrial grade RS-232 to fiber optic converter which converts a standard RS-232 transceiver to a fiber optic link as to extend the serial signal up to 5Km on multimode fiber and 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.
Key Features of Fiber Optic Converter
Lead Time of Fiber Optic Converter
| Quantity(Pieces) | 1-100 | >100 |
| Time(Days) | 3 | To be negotiated |
Specification of Fiber Optic Converter
| Standard | EIA /TIA RS-232 |
| Fiber Connector | SC standard, ST/FC optional |
| Fiber Distance | 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km |
| Serial Connector | RS232:DB9 |
| Serial Distance | RS232: 5m |
| Rate | 0-500Kbps |
| Baud Rate | 300 Baud to 115,200 Baud |
| RS-232 | IN, OUT, GND |
| Power Supply | 110V ~ 240VAC to 5VDC with external power adapter |
| Power rate | 5-40V, 2W |
| Static protection | 15KV electric static discharge (ESD) protection |
| Operation Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions |
110mm*104mm*28mm |
| Weight | 0.3kg/pc |
Ordering Details of Fiber Optic Converter
| OM2101-RS232-M2-SC |
RS232 serial to fiber converter, DB9-RS232, MM, dual fiber, 2Km, SC
|
| OM2101-RS232-S20-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 20Km, SC
|
| OM2101-RS232-S40-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 40Km, SC
|
| OM2101-RS232-S60-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 60Km, SC
|
| OM2101-RS232-S80-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 80Km, SC
|
| OM2101-RS485/RS422-M2-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
|
| OM2101-RS485/RS422-S20-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
|
| OM2101-RS485/RS422-S40-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
|
| OM2101-RS485/RS422-S60-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 60Km, SC
|
| OM2101-RS485/RS422-S80-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 80Km, SC
|
| OM2101-FV24-M2-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
|
| OM2101-FV24 -S20-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
|
| OM2101-FV24-S40-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
|
| OM2101-FV24-S60-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 60Km, SC
|
| OM2101-FV24-S80-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 80Km, SC
|
*Above listed are the most frequently ordered items. Please contact us for other configurations.
Application of Fiber Optic Converter

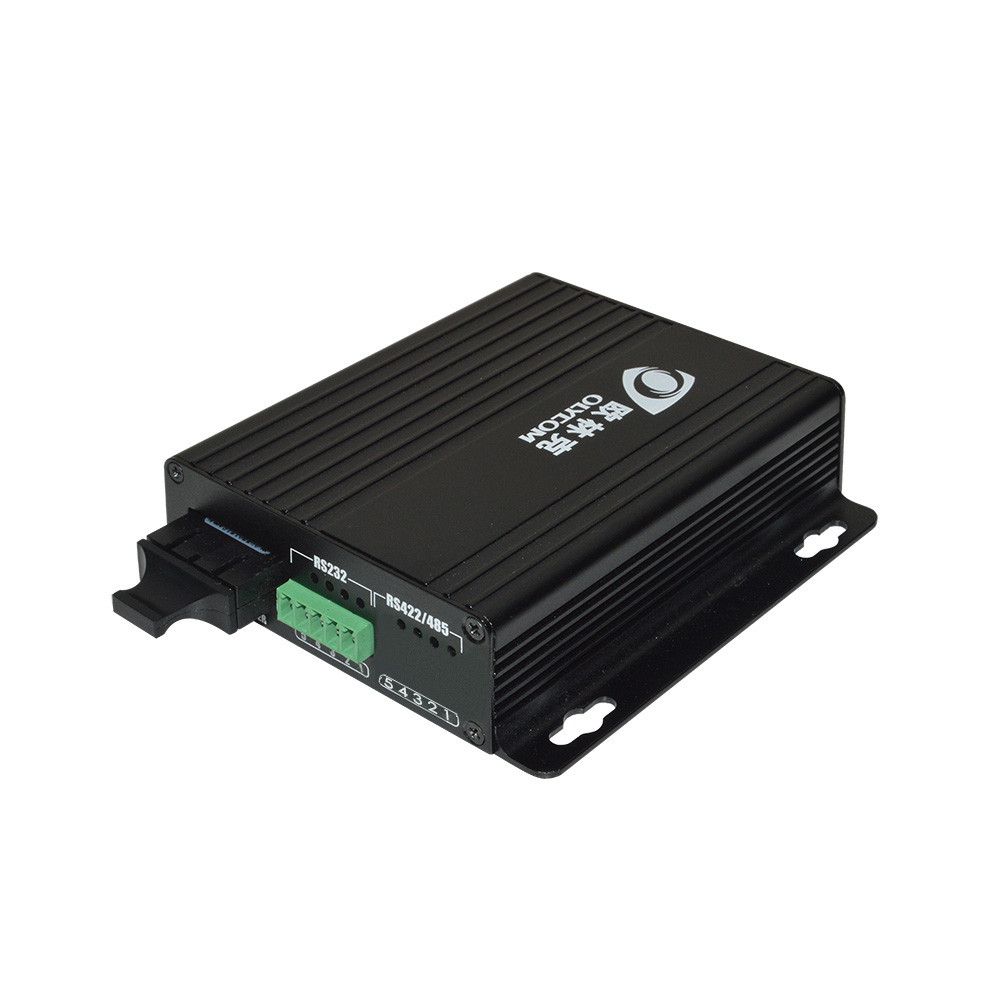

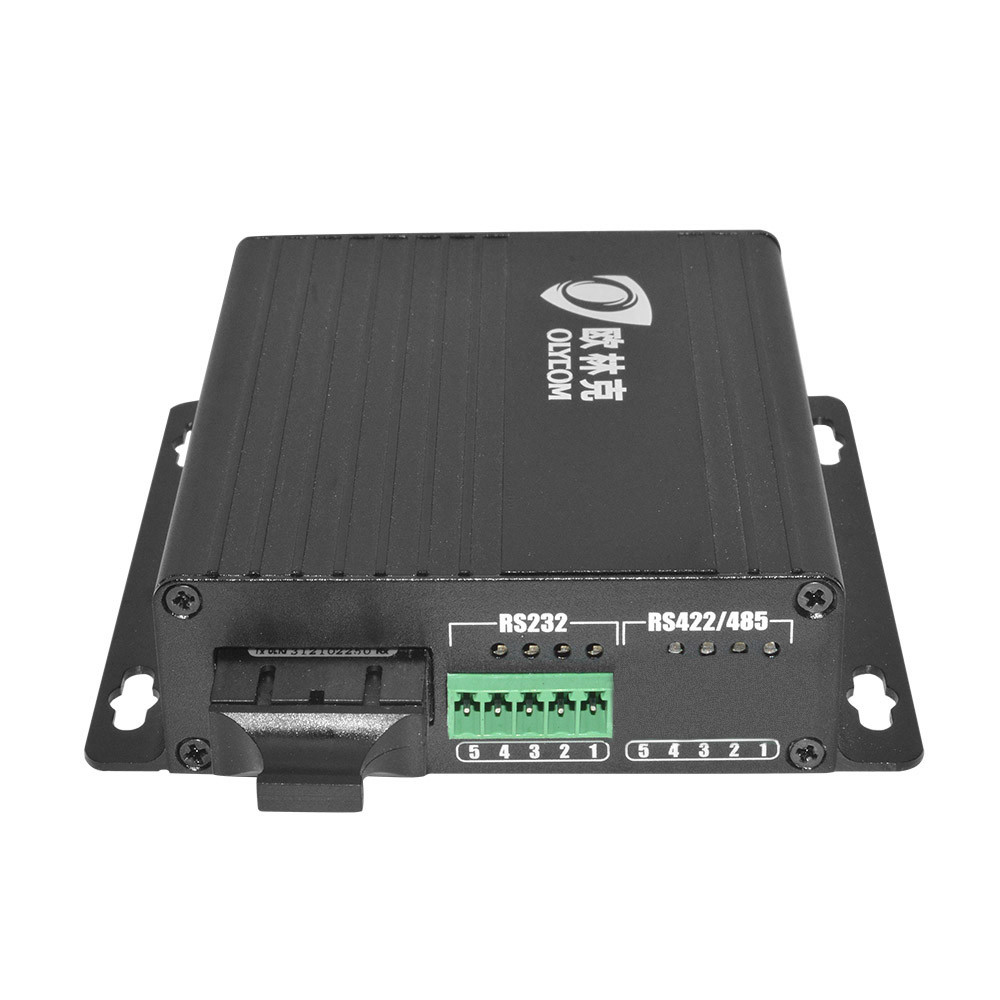

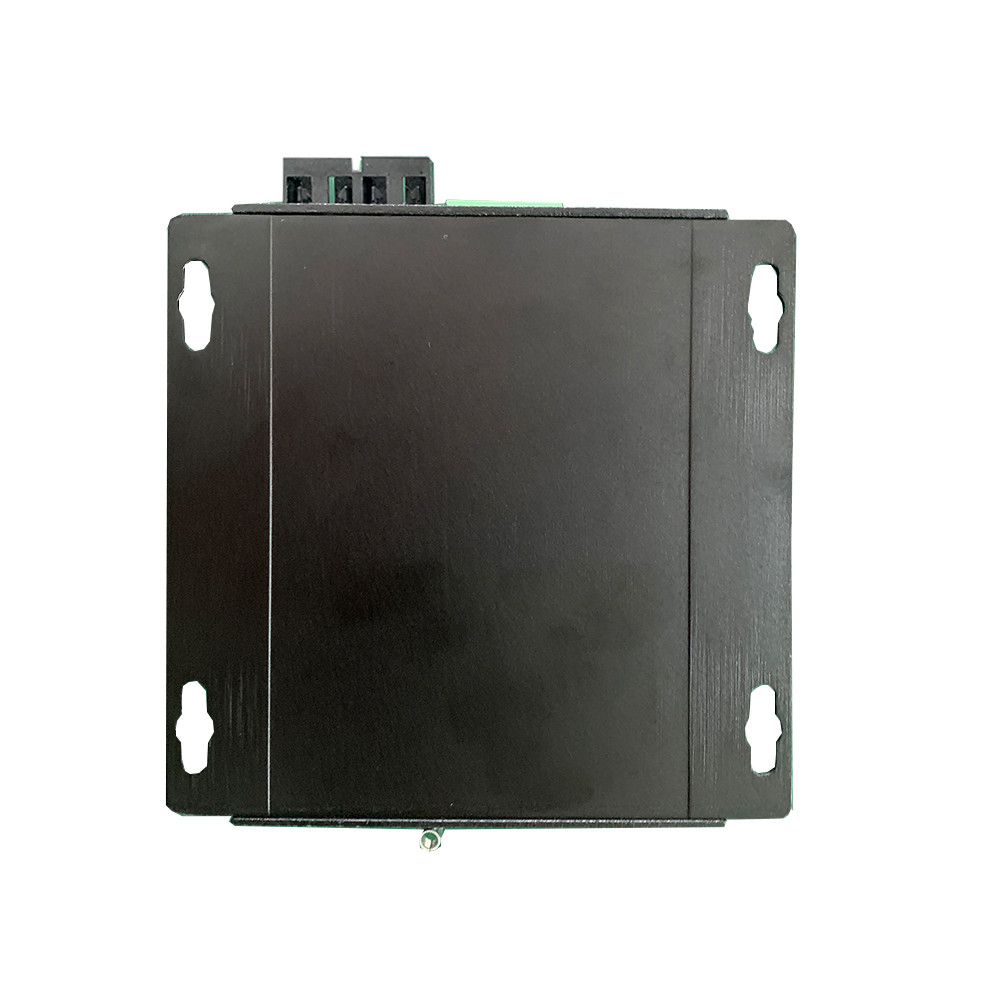

Photo of Fiber Optic Converter
