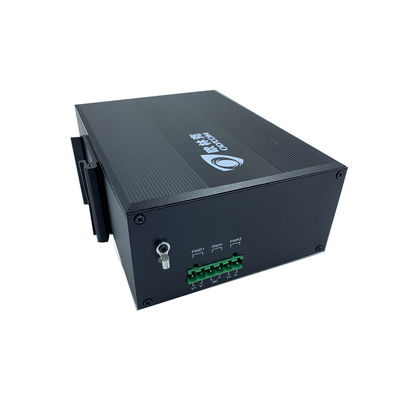

Din Rail 6 Port Industrial Gigabit Ethernet Switch With Two SFP Port
Introduction
IM-FS260GE is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features
Specification
| Product Name | Din Rail 6 Port Industrial Gigabit Ethernet Switch |
| Model No. | IM-FS260GE |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 6x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection: support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |

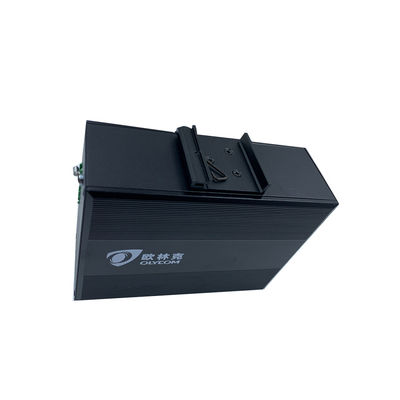

Shell: Corrugated metal shell Safety class: IP44 Dimension:158 x 114.8 x 60mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Packaging And Delivery
One 26*19.5*8cm box includes one Gigabit Ethernet Switch, one user manual, and one warranty card.
Delivery Time: usually three to five days, it depends on the quantity.
After-sales Service
1. 36 Months Manufacturer Warranty (Excluding contrived damage or misusage). We promise that all the products have been passed the functional test and aging test before delivery.
2. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.
Application
