Home /Products/Industrial Network Switch/DC24V Industrial Network Switch Gigabit 6 Port Ethernet SFP Fiber Unmanaged DIN Mounted

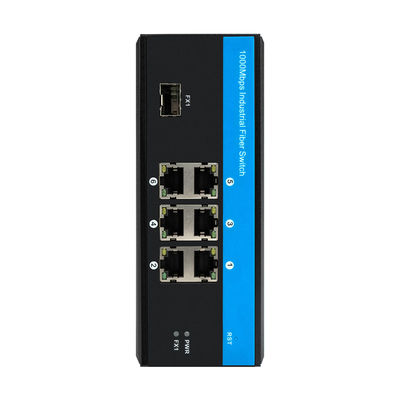

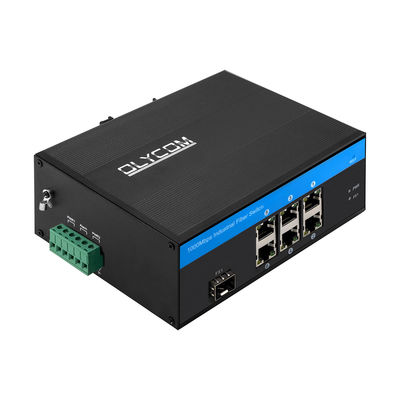

DC24V Industrial Network Switch Gigabit 6 Port Ethernet SFP Fiber Unmanaged DIN Mounted

1pc
MOQ
Negotiable
Price
DC24V Industrial Network Switch Gigabit 6 Port Ethernet SFP Fiber Unmanaged DIN Mounted
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Gigabit 6 Port Industrial Fiber Switch
Fiber: 1*1000M SFP Slot
Copper: 6*10/100/1000Mbps
Feature: Non-PoE, Unmanaged
Power Supply: 12-52VDC
Customization: Support
Highlight:

6 Port 40 gigabit ethernet switch

,

6 Port Ethernet Rail Switch

,

9VDC Ethernet Rail Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FS160GE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000 pieces per month
Product Description

DC12V Gigabit Fiber Network Switch Unmanaged


Key Features of Rugged Network Switch



  • 1x1000Mbps SFP fiber ports
  • 6x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 8 ports
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • DIN rail or Wall installation
  • Comply with FCC and CE standards
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C～75°C



Specification of Gigabit Fiber Switch



Product Name 10/100/1000Mbps Industrial Fiber Switch(1F+6TP)
Model No. IM-FS160GE
Port

1x1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

6x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 12Gbps (non-traffic jam)

Forwarding rate: 11.16Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On:PoE is working

Off:PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On:transmission speed is 1000Mbps

Blinking: in transmission

Off:Disconnected or working speed is 10/100Mbps
Power Supply

Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V

Reverse connection: support

Power Consumption: Full loading≤5W
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 158*115*60mm

Mounting method: Din-rail/Wall mounting

Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty 3 years, lifetime technical support



Application of Gigabit Unmanaged Switch


DC24V Industrial Network Switch Gigabit 6 Port Ethernet SFP Fiber Unmanaged DIN Mounted 0



Packing List



  • 1pc switch
  • 1pc user manual

Remark

Accessories(optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us



Shipping box information

Product size: 158*115*60mm

Inner box size: 25.3*20.8*8cm

Product weight: 0.75Kg

Packing weight: 0.9Kg



Master box size: 55.5*40*41cm

Packing quantity: 20Pcs

Packing weight: 20Kg



FAQ



1, What chip is it based?

Olycom: Realtek



2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)



3, Is it managed?

Olycom: No

Its just simple plug-and-play, but we have a managed model(IM-FS166GM)



Accessory



Industrial Optical Module
OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX(1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC12V1.67A AC220V to DC12V1.67A, -30℃～70℃
IM-DAC220/DC24V1A AC220V to DC24V1A, -30℃～70℃
