Compact Modular Design One-Stop 400G/800G DWDM Solution
Product Overview
OM5800 is an industry-leading innovative DCI OTN transmission platform launched by OLYCOM.
OM5800 has the characteristics of small size, large capacity service access, long distance transmission, Web GUI simple and convenient operation and management, reliable operation and energy saving and emission reduction, which effectively meets the needs of long-distance and large bandwidth user data center interconnection transmission.
The OM5800 features a modular design that enables both optical-electrical decoupling for cost reduction and integrated management within the same chassis.
With SDN capabilities, it creates an intelligent and open network architecture.
The system supports the YANG model interface based on the NetConf/YANG protocol, while also offering multiple management methods including Web GUI, CLI, NetConf,and SNMP for streamlined operations.
Key Features
1. Ultra-high integration:

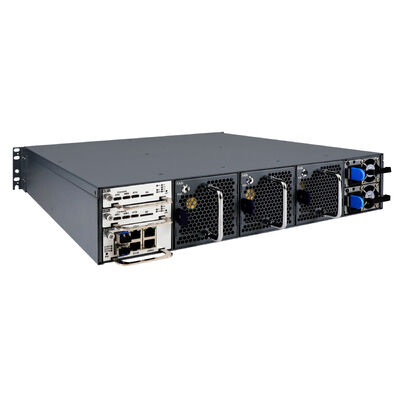

1U&2U Chassis,2U supports 4*1.6T service slots, 1U supports 2*1.6T service slots; service card is compatible
Client side:
Supports GE/10GE/10GWAN/STM64/OTU2/100GE/
OTU4/400GE etc(see the details of the card for details)
Line side:
Supports 100G/200G/400G/800Gbps per wave
2. Ultra large capacity:
A single chassis can carry up to 6.4T service capacity, reaching the industry-leading level
3. Extreme simplicity operations:
Flexible definition, web GUI intelligent maintenance,
improve the operability of remote operation and
maintenance
Supports remote network port and serial port
access, and supports remote cold and hot restart
Support remote upgrade of chassis and card, remote configuration import, and remote log download
4. White box design:
Support for Netconf protocols based on Yang model
Web GUI/CLI/SNMP
Wait for the open management interface, support Open API, and realize management decoupling
5. Suitable for data center and machine room environment:
Support hot plugging of service/main controller/Ethernet interface/fan/power card
The whole machine has forward air/after air design, with strong heat dissipation capacity
Master 1:1 backup, support for Gigabit Ethernet
management, support for OSPF networking
Compatible with AC/HVDC/-48V power supply for data center applications.
Product Specification
|
Project Name
|
Description
|
|
Transmission Capacity
|
96*200Gbps /60*400Gbps
|
|
Network Management Unit
|
-
2U/4U Chassis: dual master 1:1 backup protection
-
1U Chassis: single master
-
Management port: 2* RJ45 Gigabit Ethernet electrical port, 2*SFP Gigabit Ethernet optical port
1*Type-C USB Console Port
MUX ports: 2*Mux and Demux Device Management Port
|
|
Electrical Layer Card
|
200G TMUX supports dual 2*100G to 1*200G services
200G TMUX supports 20*10G to 1*200G services
200G TMUX supports 10*10G + 1*100G or 2*100G to 1*200G services
400G TMUX supports 4*100G to 1*400G services
400G TMUX supports 4*100G to 2*400G (1+1 protection) services
800G TMUX supports 8*100G to 1*800G services
800G TMUX supports dual 2*400G to 1*800G services
|
|
Optical Layer Card
|

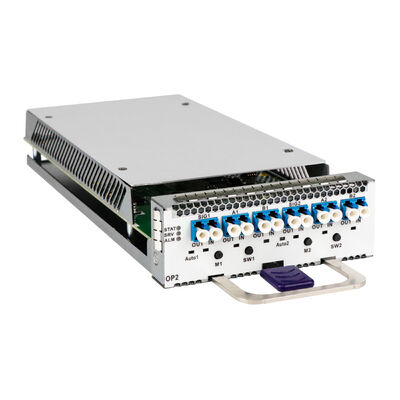

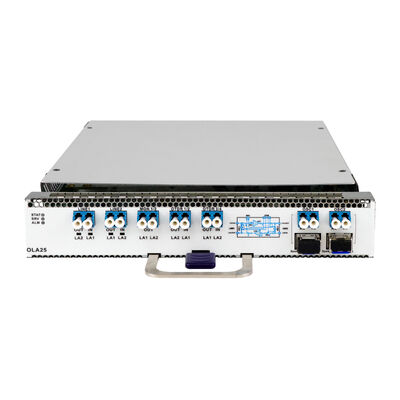

WSS card / TFF card / OP card / OTDR card / OCM card / OA card / OLA card / PTM card / 8-wave MUX /48-wave MUX / 48-wave VMUX /96-wave MUX card
|
|
Size
|
1/2 Service Card
|
216 mm (W) * 262 mm (D) * 40 mm (H)
|
|
1/4 Service Card
|
107 mm (W) * 262 mm (D) * 40 mm (H)
|
|
4U Chassis
|
Supports 16*1/4 slots or 8*1/2 slots
442mm (W) *485mm (D) * 176mm (H)
|
|
2U Chassis
|
Supports 8*1/4 slots or 4*1/2 slots
442mm (W) *485mm (D) * 88mm (H)
|
|
1U Chassis
|
Supports 4*1/4 slots and 2*1/2 slots
442mm (W) * 485mm (D) * 44mm (H)
|
|
Environment
|
Working Temperature
|
-5℃ ~ 45℃
|
|
Storage Temperature
|
-40℃ ~ 80℃
|
|
Humidity
|
5% ~ 95% no condensation
|
|
Power Source
|
Dual power 1:1 backup: AC220V/high voltage DC/-48V optional
|
|
Power Dissipation
|
4U<2300W,2U <1300W; 1U <800W (based on full layer power/fan at full speed),
|
Telecom QC Framework
1. Quality Standards
Comply with ISO9001, CE, FCC, RoHS, IEEE, ITU-T
Include customer-specific requirements
Define benchmarks: throughput, latency, power consumption, durability
2. QC Process
Incoming Inspection: Check optical modules, PCBs, power supplies, enclosures
Production Control: AOI inspection, soldering quality, optical alignment, port and PoE verification
Functional Testing:
Switch: throughput, VLAN, QoS, PoE output
DWDM: wavelength accuracy, OSNR, optical power levels
Environmental Testing: temperature (-40~75°C), humidity, vibration
Burn-in: high-load operation, monitor packet loss and stability
Final Check: appearance, labeling, full function re-test
3. Test Equipment
Optical Spectrum Analyzer (OSA)
Traffic Generator (throughput, latency)
Protocol Analyzer (TCP/IP, VLAN)
Environmental chambers & vibration tables
4. Documentation
Full test records (reports, calibration, certifications)
QC system for traceability and defect tracking
5. Continuous Improvement
Root Cause Analysis (RCA)
Customer feedback loop
Regular staff training
Outcome: higher reliability, lower failure rate, reduced after-sales cost.
