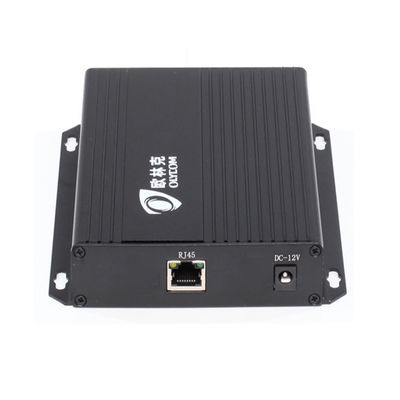

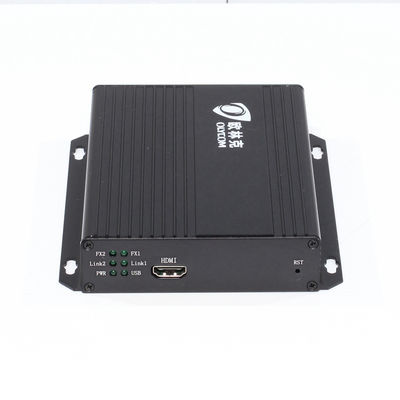

1080P HD DVI Fiber Optic Extender HDMI Extender Over Cat5e 120 Meters CE DC12V

1 pair
MOQ
Negotiable
Price
1080P HD DVI Fiber Optic Extender HDMI Extender Over Cat5e 120 Meters CE DC12V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 1080P HDMI Fiber Extender
Distance: 120m Over Cat5e Cat6
Power: 12V1A, 2A Optional
Dimension: 152.8mm*130mm*28.3mm
Video Resolution: 640X480 To 1080P
Weight: 0.45Kg Per Piece
Highlight:

1920*1080 HD Dvi Fiber Optic Extender

,

Auto MDI Hdmi Extender Over Cat5e

,

1920*1080 Hdmi Extender Over Cat5e
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-CH1R-T/R
Document: OLYCOM Industrial Networkin...25.pdf
Payment & Shipping Terms
Packaging Details: 1 pair in 1 carton. 1KG per carton
Delivery Time: 4~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pair per week
Product Description

Compressed 1080P HD Video To RJ45 Extender



Product Overview



OLYCOM HDMI extender compresses and converts 1080P HD video signal to network signal, so that HD video signal could be transmitted long distance by network cable.



Key Features



  • Support HDMI and other HD video signal interface

  • Support all of the video resolution from 640X480 to 1080P

  • Cascading, broadcast and other transmission ways are available

  • Use MJPEG format, reduce transmission bandwidth, to ensure smooth video playback, good color reproduction and short delay time



Specification



Video Compress Format

M-JPEG: Compress 1080P@60HZ video signal to 50Mbps

Video Interface

HDMI: Support HDMI1.1/1.2/1.3, HDCP1.1/1.2, Compatible with DVI

Protocol

TCP/IP: Standard TCP/IP network protocol

Transmission Delay

70ms: Direct transmission delay less than 70 ms.

Remote Control

UART,USB: RS232, USB

RJ-45 Port

Auto-MDI/MDIX

Video Resolution

VES & CEA-861: 640*480, 720*576, 800*600, 1024*600, 1024*768, 1152*864, 1280*600, 1280*720, 1280*768, 1280*800, 1280*960, 1280*1024, 1440*1050, 1440*900, 1600*900, 1660*1200, 1680*1050, 1920*1080

Audio

Digital Audio: 32khz,44.1khz,48khz.

Network Cable

120m: Cat5e and Cat6

Consumption

12V1A/2A

Working Temperature

0-70℃

Dimension

152.8mm*130mm*28.3mm



Application



  • Security System
  • Subway / Railway Advertising
  • Mall Advertising
  • Building Exhibition



Ordering Details



OM615-CH1RKM-T/R

Compressed HDMI Extender, one RJ45 ports, two USB ports

OM615-CH1R-T/R

Compressed HDMI Extender, one RJ45 port

OM615-CH1R1FKM-T/R

Compressed HDMI Video Optical Converter, one RJ45 ports,one fiber ports, two USB ports

OM615-CH1R1F-T/R

Compressed HDMI Video Optical Converter, one RJ45 ports,one fiber ports

OM615-CH1FKM-T/R

Compressed HDMI Video Optical Converter, one fiber ports, two USB ports

OM615-CH1F-T/R

Compressed HDMI Video Optical Converter, one fiber ports
