8 Port analog video converter multiplexer
Model: OM610-8V↑WT/R. We support your model
Product Overview

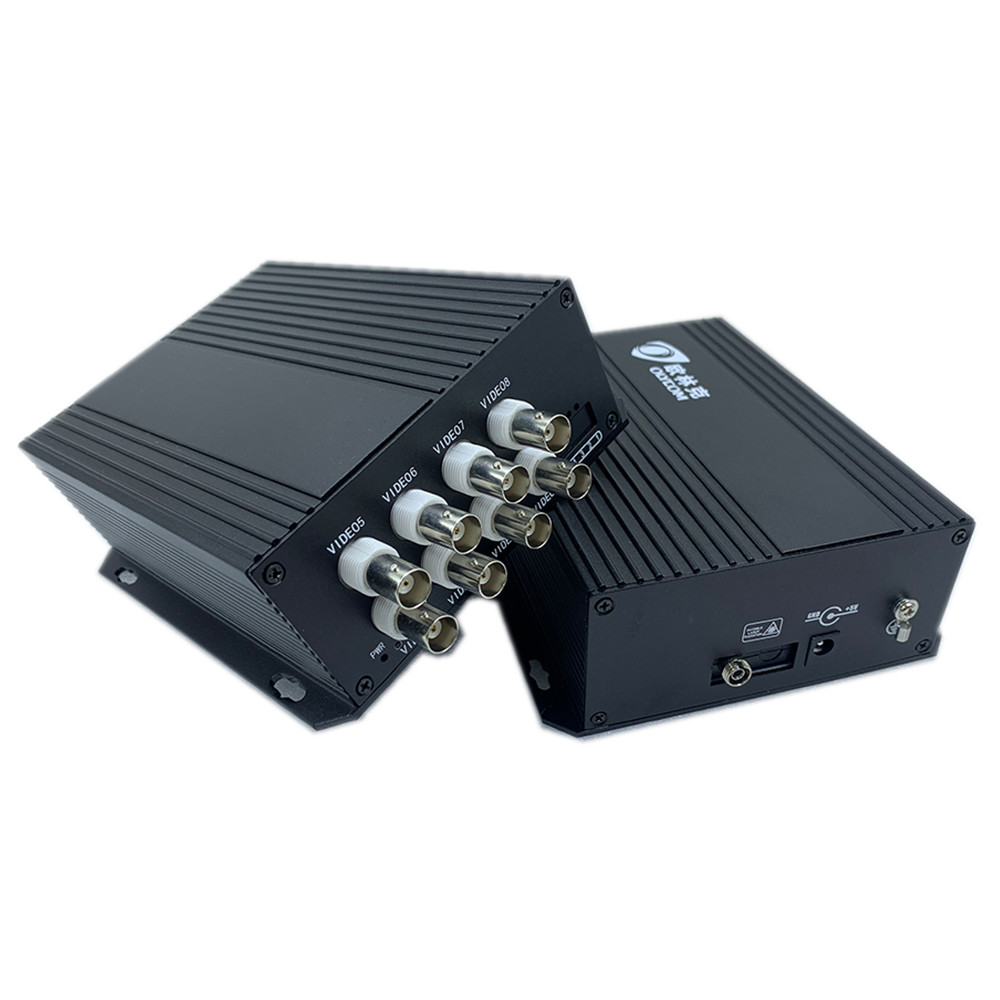

Olycom OM610-8V↑WT/R optical video transmitter and receiver transmit 8ch video signals on optical fiber.
On 9/125um Single mode fiber its working distance is 20Km to 80KM while on multimode fiber it’s 1Km.
Key Features
Parameters
|
Optical |
|
|
Wavelength |
1310nm/1550nm |
|
Output Power |
-8~3dBm |
|
Optic fiber |
Single mode (9/125um) 20Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
|
Receiving sensitivity |
-30dBm |
|

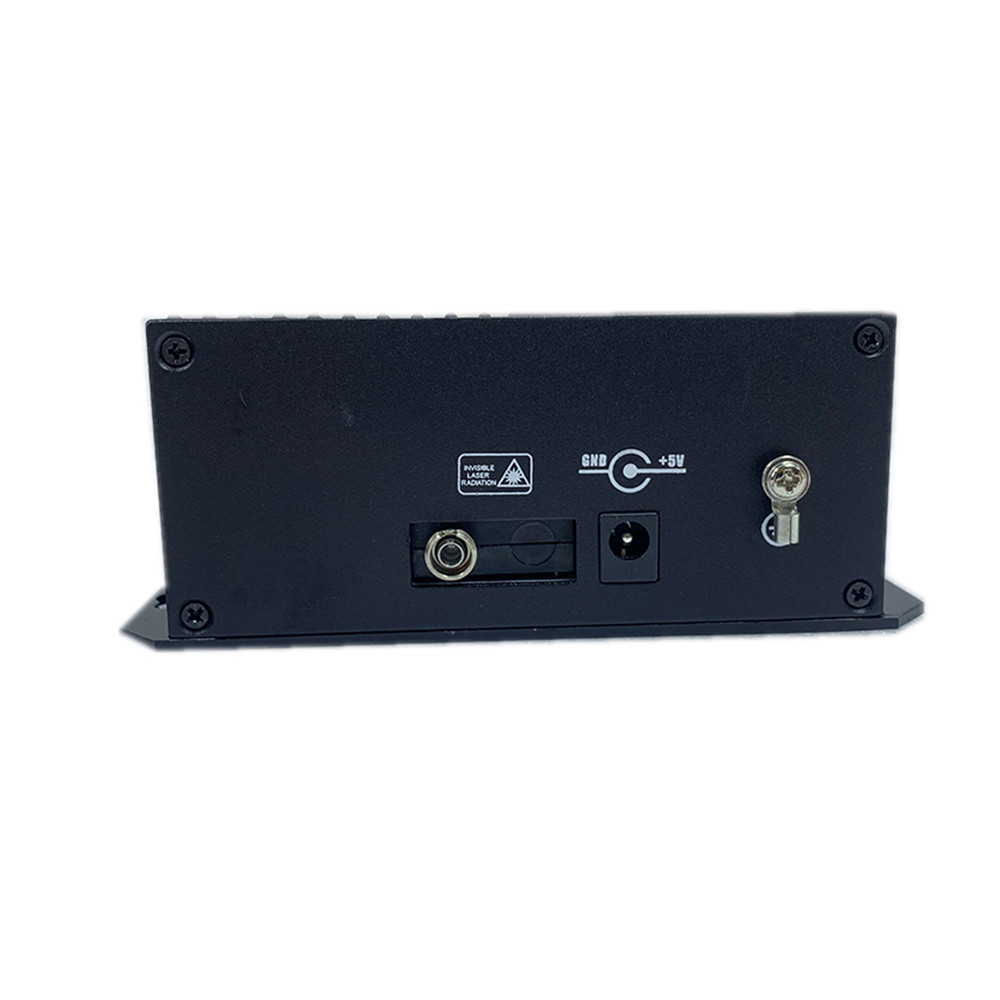

Interface |
FC standard, ST/SC optional |
|
Video |
|
|
Channel Quantity |
8ch, from camera to control center |
|
Compatible Systems |
NTSC/PAL/SECAM |
|
Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
|
Differential Gain |
< ±1% |
|
Differential Phase |
< ±1 |
|
S/N ratio |
>60dB(weighting)(8 bit) |
|

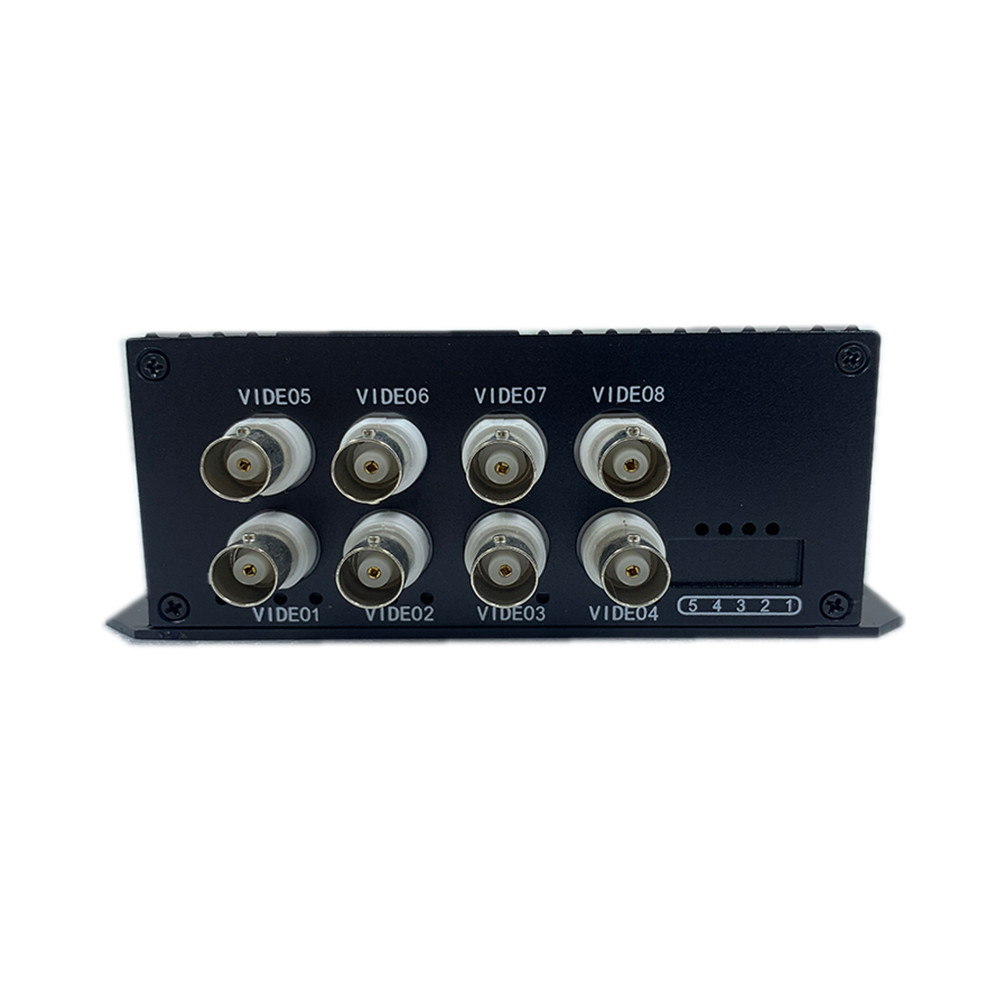

Interface |
BNC |
|
Electrical. Environmental. Mechanical |
|
|
Operating voltage |
DC5V1A |
|
Operating temperature |
-20℃～+70℃ |
|
Storage temperature |
-45℃～+85℃ |
|
Humidity |
0~95%non-condensing |
|
Dimension-standalone |
179mm*130.5mm*50mm |
|
Weight |
0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight) |
Application
Ordering Details
|
OM610-8V↑WT/R-FC20 |
8ch video Tx, single-mode, single fiber, 20Km, FC |
|
OM610-8V↑MT/R-FC1 |
8ch video Tx, multi-mode, single fiber, 1Km, FC |
FAQ
1. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. Do you accept sample order?
A: Yes. Sample order to check our services and quality.
3. Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.
4. What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
