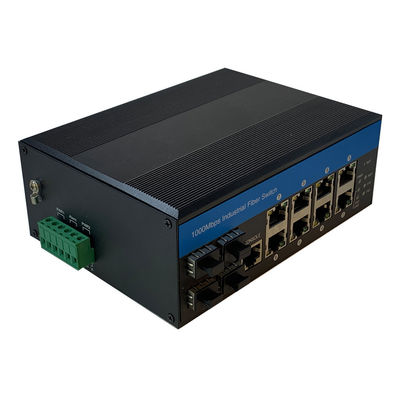

12 Port Poe Switch Managed Din Rail Smart Poe Switch 240W Max
Introduction
10/100/1000Mbps 12 port industrial POE managed gigabit Ethernet switch
Key Features
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management,
optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control
(input/output direction), storm suppression ,differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Technical Parameter
Model No. |
IM-FP488GW |
Port |
4 x 1000Mpbs SFP port |
Standard |
IEEE , I802.3EEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
Jumbo Frame |
9.6KB |
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
LEDs |
Power, network, fiber |
Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 30W (port 1~8) |
Mechanical information |
Shell:Corrugated metal shell; Safety class:IP44; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
