MDIX CCTV Media Converter With 2 Ethernet Ports SMF 100km Max
1 Pcs
MOQ
Negotiable
Price
MDIX CCTV Media Converter With 2 Ethernet Ports SMF 100km Max
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM310-GE
High Light:

SMF 100km Media Converter With 2 Ethernet Ports

,

MDIX Media Converter With 2 Ethernet Ports

,

SMF 100km cctv media converter

Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.96KG/pcs
Delivery Time: 3~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per week
Specifications
Product Name: Gigabit Fiber Optic To Cat6 Converter
Fiber: SC Port, Dual Fiber
Ethernet Rate: 10/100/1000Mbps
Distance: 20Km, Single Mode
Power: AC Input 220V
Weight: Net Weight: 0.74kg
Size: 173mm(W) X 128mm(D) X 32mm(H)
Warranty: 1 Year
Product Description

                      10/100/1000M 2 Port Gigabit Fiber Optic Ethernet Media Converter AC Input 220V

Introduction

Olycom Gigabit single mode Ethernet media converter features below


  1. Internal power supply
  2. 10/100/1000Mbps auto-sensing, auto-MDI/MDIX
  3. Utilize fiber optics to extend the physical distance range
  4. MMF 5KM max
  5. SMF 100km max
  6. Full- positioned LEDs to indicate power and network status


Key Features


  • 10K super data packet transmission
  • Full duplex-flow control, Half duplex-back pressure
  • Link fault pass through (LFPT)
  • Support AVB


Specification


Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
IEE802.3z 1000BASE- SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az

10/100/1000BASE-TSTP or UTP Category 5/5e/6 cable (Max. 100m)
1000BASE-FX

50/125um fiber cable (1km), 62.5/125um multimode fiber cable (0.5km)

9/125um singlemode fiber cable (20/40/60/80/100/120km)

Conversion Mode
Delay Time

Store-and-Forward < 10us, straight-through<0.9us
Flow controlFull duplex-flow control, Half duplex-back pressure
RJ-45 PortAuto-MDI/MDIX
Fiber ConnectorSC standard, ST/FC optional
Wavelength1310/1550nm
Dimensions173mm(W) x 128mm(D) x 32mm(H)
WeightNet weight : 0.74kg, Gross weight : 0.96kg
Input VoltageAC100 ~ 240V / 50-60HZ



Power Consumption<2.5W
MTBF50,000 hours
BER<1/1000000000
MAC Address Table4K
Buffer Size1.75M
Operating Temperature0℃~50℃
Storage Temperature-40℃~70℃
Storage Humidity5%~90% non-condescending


Ordering Details


OM310-GE/SC-SX10/100/1000M, Standalone, dual fiber, multimode, SC, 0.5km, internal power supply
OM310-GE/SC-2510/100/1000M, Standalone, dual fiber, single mode, SC, 25km, internal power supply
OM310-GE/SC-4010/100/1000M, Standalone, dual fiber, single mode, SC, 40km, internal power supply
OM310-GE/SC-6010/100/1000M, Standalone, dual fiber, single mode, SC, 60km, internal power supply
OM310-GE/SC-8010/100/1000M, Standalone, dual fiber, single mode, SC, 80km, internal power supply
OM310-GE/SC-10010/100/1000M, Standalone, dual fiber, single mode, SC, 100km, internal power supply
OM310-GE/SC-12010/100/1000M, Standalone, dual fiber, single mode, SC, 120km, internal power supply


Application

MDIX CCTV Media Converter With 2 Ethernet Ports SMF 100km Max 0

  1. Schools, offices, Cyber bars
  2. FTTX Projects
  3. Telecommunication networks

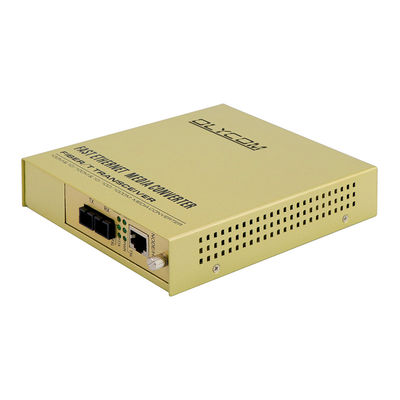

Product Images

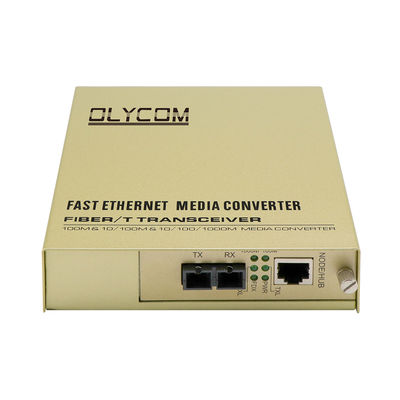

MDIX CCTV Media Converter With 2 Ethernet Ports SMF 100km Max 1

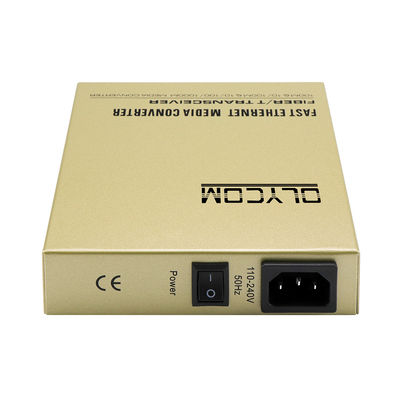

MDIX CCTV Media Converter With 2 Ethernet Ports SMF 100km Max 2
