Gigabit 8 Port Solar Poe Switch DC12-48V Unmanaged Poe Switch 240W for Solar Power System or Vehicle

Gigabit 8 Port Solar Poe Switch DC12-48V Unmanaged Poe Switch 240W

for Solar Power System or Vehicle

Key Features of Gigabit 8 port Solar PoE Switch:

• Provides reliable PoE power for IP cameras and wireless access points over Cat5/5e/6 Ethernet cables.
• PoE output power: 15.4W per port under IEEE 802.3af, 30W per port under IEEE 802.3at (ports 1–8).

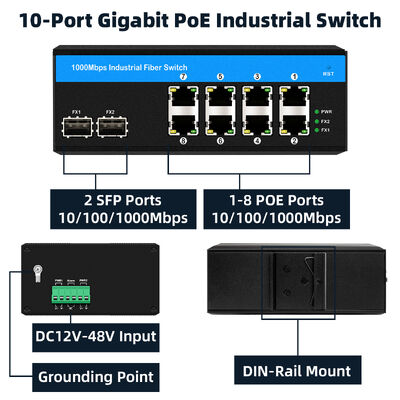

• 8x Gigabit RJ45 ports with auto-negotiation and Auto MDI/MDIX support.
• 2x 1G SFP fiber ports for flexible uplink and long-distance network connectivity.

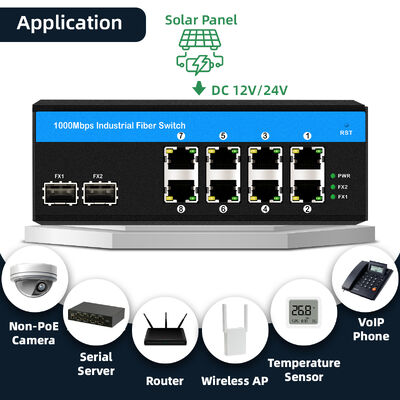

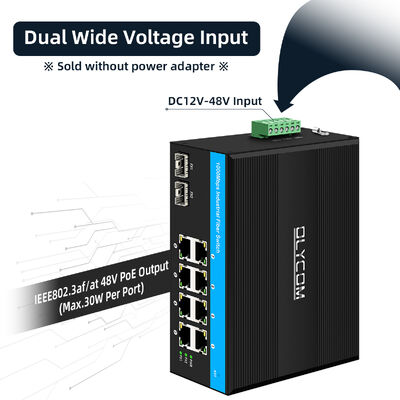

• Built-in voltage booster supports 12–48V DC input, suitable for solar power systems, trunk networks, VoIP systems, and CCTV security deployments.
• Robust surge protection: 6kV Ethernet surge safeguard for harsh outdoor environments.
• Flow control support: Full-duplex with IEEE 802.3x standard, half-duplex with back pressure standard.
• Standards compliant: IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX.
• Store-and-forward switching ensures reliable and low-latency data transmission.
• Automatic PoE detection: Supplies correct power to connected devices, maximizing compatibility.
• Extreme operating temperature range: -40°C to +75°C for industrial environments.

Specification of Unmanaged PoE Switch


Packing box of Din rail unmanaged switch:



FAQ:


1. Q: How does this Industrial 10 Ports Gigabit POE Fiber Switch compare to other standard POE switches?

A: This 10 port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this industrial 10 ports PoE switch support 24VDC power output?

A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Is it a managed industrial network switch?

A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.

4. Q: What's is the PoE Pin Assignment of this Industrial 6 Ports POE  Fiber Switch?

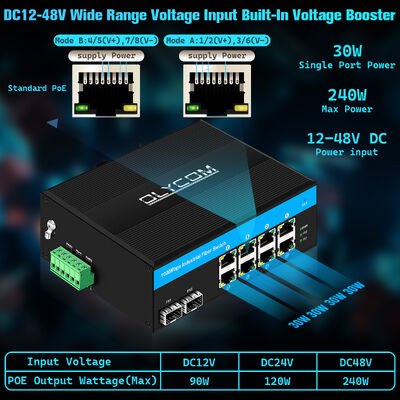

A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

5. Q: Can i use it with one Non-PoE devices?

A: Yes, sure. If one Non-PoE devices is connected with this industrial 6 port PoE switch. The industrial 6 port PoE switch will provide data only, and don't provide power any more.
