Factory price Optical bypass switch

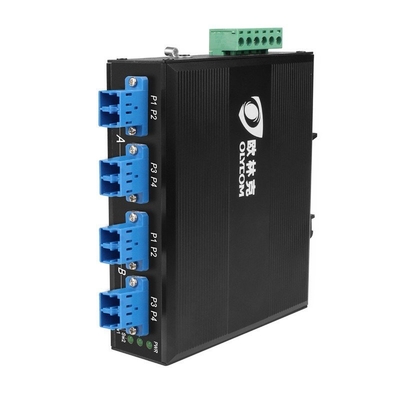

2*2B Fiber Bypass Switch LC/SC SM/MM
Introduction of Fiber bypass switch
- The Fiber Bypass has the characteristics of low loss, high stability and high reliability.
- For different optical path needs, optical switch modules can be customized to meet the optical path needs of complex test systems and improve product test efficiency.
- It is an indispensable core product for the monitoring and protection of optical communication system, which can be connected to high-density optical communication systems.
Specification of Optical Bypass Switch
| Product Name |
2*2B Bypass Switch
|

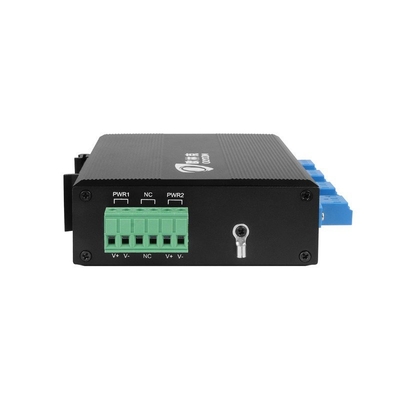

| Power Interface |
Standard industrial terminal block. |
| Polarity Protection |
Support |
| Optical Fiber Interface |
LC/SC |
| Wavelength Range |
850±40/1300±40nm; 1260~1650nm |
| Test Wavelength |
850/1300nm; 1310/1550nm |
| Insert Loss |
Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss |
MM≥30 dB SM≥50 dB |
| Channel Crosstalk |
MM≥35 dB SM≥55 dB |
| Polarization Loss |
≤0.05 dB |
| Wavelength Loss |
≤0.05 dB |
| Temperature Loss |
≤0.05 dB |
| Repeatability |
≤0.05 dB |
| Service life |
≥100000000 times |
| Switching time |
≤10 ms |
| Transmission optical power |
≤500 mw |
| Environment |

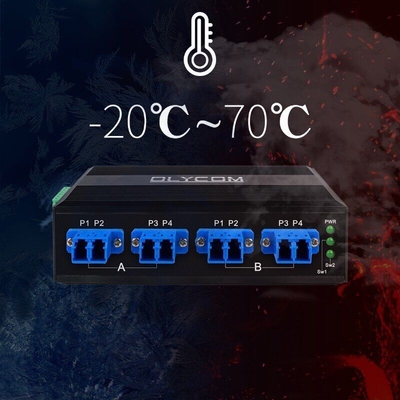

Working temperature:-20°～ 70°C
Storage temperature:-40°～ 85°C
|

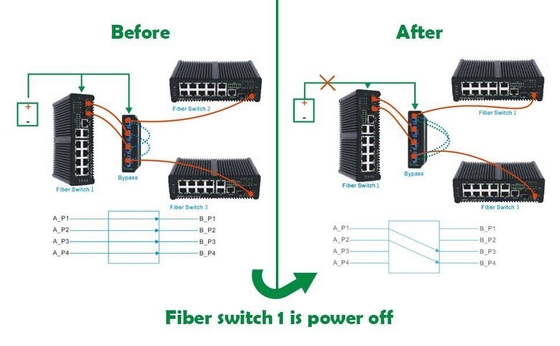

Connection diagram of Optical Fiber Bypass
Applicaiion
About Olycom
- Olycom manufactures and markets fiber optic connectivity devices.
- Olycom provides solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
- Olycom currently focuses on
Industrial Networking
Optical Bypass
WDM Equipment
Optical Monitoring Systems
POE++

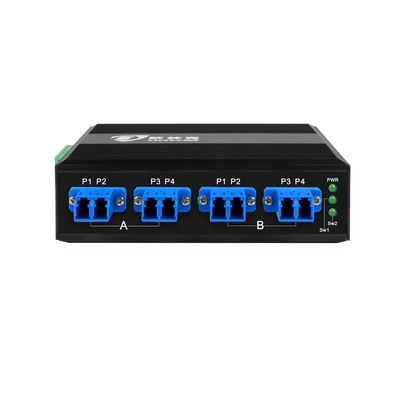

Actual Photos of Bypass fiber switch
FAQ
Q: What's the function of this bypass fiber switch?
A: This product is to protect the fiber path. If the protected fiber switch is powered off, the optical path will skip the fiber switch and directly connect to the next fiber switch through the bypass optical switch. Make sure that when one of the fiber switches is powered off, the other fiber switches can still work normally.
Q: Does it include the power supply?
A: No, doesn't include one power adapter, and need to buy the power adapter separately. The input voltage is 9V-52VDC.
Q: What temperature range can this device handle?
A: The operating temperature is -20～70℃(-4～158°F)
Q: Does it come with a small din rail?
A: The switch supports 35mm din rail, but the din rail is not included.
Q: Is it a managed product?
A: No, This is an unmanaged product.
The Fiber Bypass has the characteristics of low loss, high stability, and high reliability. For different optical path needs, optical switch modules can be customized to meet the optical path needs of complex test systems and improve product test efficiency. It is an indispensable core product for the monitoring and protection of optical communication systems, which can be connected to high-density optical communication systems.
Package List:
- 1pc Bypass Mechanical Optical Switch
- 1pc User Manual
- Removable Terminal Block
