Industrial DIN Power Supply 12V

Introduction

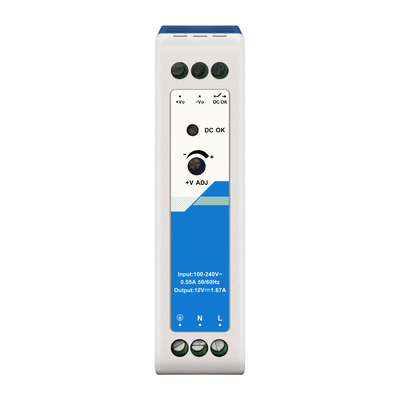

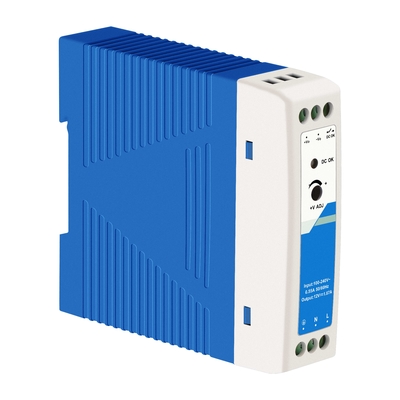

IM-DAC220/DC12V1.67A converts AC220V to DC12V for industrial PoE switches featuring

• cost-effective
• energy efficient
• Universal 85 - 264VAC or 120 - 370VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -30℃ to +70℃
• High efficiency up to 86%, high reliability
• DC OK function
• Output short circuit, over-current, over-voltage, over-temperature protection
• Operating altitude up to 5000m

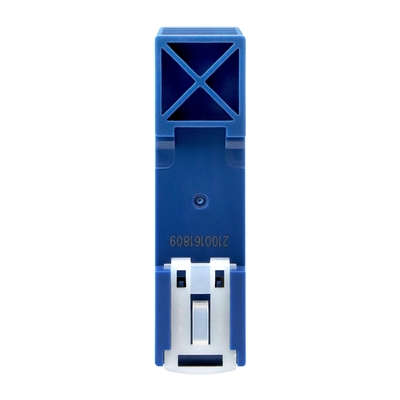

• DIN rail TS-35/7.5 or 15 mountable
• Withstand 305VAC input voltage 5S
• Safety according to UL/EN/IEC/BS EN62368,UL61010,UL508

With good EMC performance, immunity to noise and reliability, it could ensure stable and continuous operation of the automation system.

Technical Data

Output
Item		Operating Conditions			Min.	Typ.		Max.		Unit
Output Voltage Accuracy		Full load range/48V				±1.0				%
Line Regulation		Rated load				±1.0
Load Regulation		230VAC				±1.0
Minimum Load		0
Ripple & Noise		20MHz bandwidth (peak-to-peak value)				100		120		mV
Temperature Coefficient						±0.03				%/℃
Hold-up Time		115VAC				20				ms
		230VAC				50
DC OK Signal		Output voltage adjustable range ADJ			9-13.5V/40mA
Over-current Protection					≥125% Io, constant current mode, self-recovery
Short Circuit Protection					Constant current mode recovers automatically after fault condition is removed
Over-voltage Protection					≤16.2V	Output voltage hiccup
General
Item			Operating Conditions			Min.	Typ.		Max.	Unit
Isolation Test	Input-		Electric strength test for 1min., leakage current <10mA			4000				VAC
	Input-Output					2000
	Output-					500
Insulation Resistance	Input-		Test voltage: 500VDC			100				MΩ
	Input-Output
	Output-
Operating Temperature						-30			+70	℃
Storage Temperature						-40			+85
Storage Humidity			Non-condensing			10			95	%RH
Operating Humidity						20			90
Switching Frequency			230VAC, 100% load				65			kHz
Power Derating			Operating temperature derating	50℃ to -70℃		2.5				%/℃
			Input voltage derating	85VAC-100VAC		1.33				%/VAC
Safety Standard						Design refer to UL/EN/IEC/BS EN62368-1, UL61010-1, UL508
Safety Class						CLASSI
MTBF			MIL-HDBK-217F@25℃			>300,000h

Testing Standards and Results

Note

1.With an AC input voltage between 85-100VAC and a DC input between 120-140VDC the output power must be derated as per the temperature derating curves

2.This product is suitable for applications using natural air cooling

Ordering Options
