Industrial 90W 802.3bt PoE++ Injector Gigabit DC12V DC24V DC48V Input Mini Size

Olycom 12~48VDC Gigabit Industrial PoE Injector

Key Features

• 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
• Support 90W PoE++ Power Sourcing Equipment
• Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
• Support 10/100/1000Base-TX
• Extensive LED indicators for PoE diagnostics
• 12~48V DC wide range power input with power booster function
• Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
• Supports DIN-Rail and Wall-mount installation
• Environmentally Hardened -40℃ to 80℃

Technical Data

Basic Information

• The IMPJ-48-90W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt/PoE++ 90W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster.
• It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
• Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 90W PoE output.

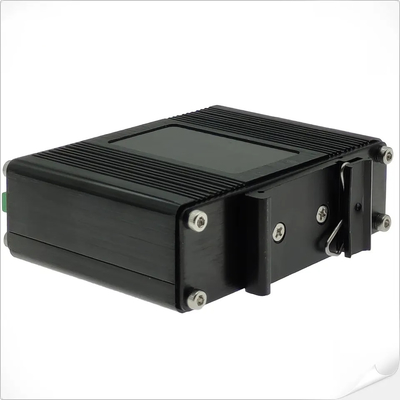

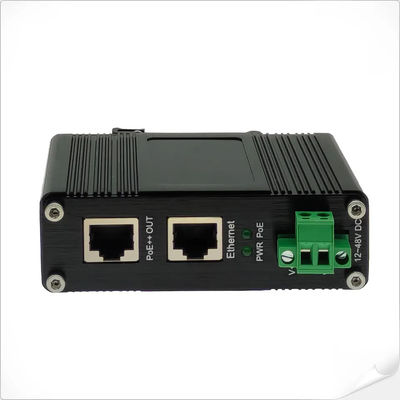

Product Photos
