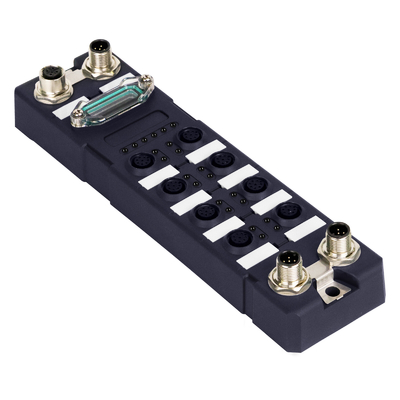

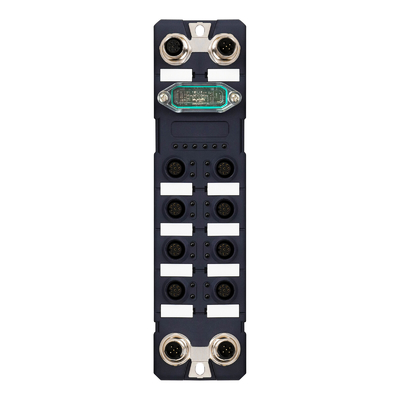

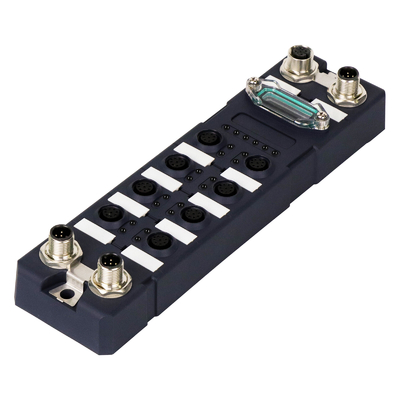

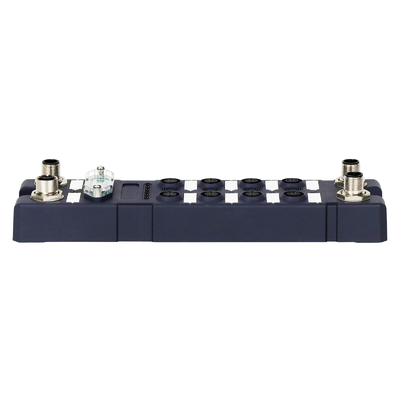

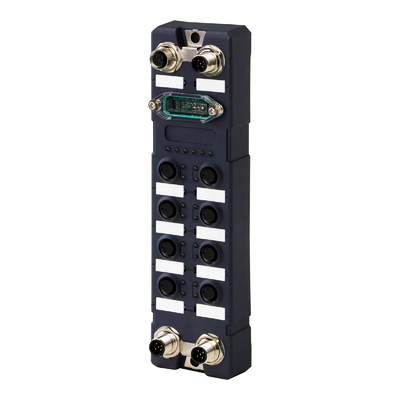

Robust IP67 waterproof 8 port gigabit Industrial Ethernet Switch
managed M12 Railway ethernet switch
Introduction of 8 port IP67 ethernet switch
IM-WS080WGM series is the 10/100/1000 Mbps waterproof M12 switch, operating temperature -40 ℃ to + 75 ℃, support web management, meet IP67 protection degree and EMC industrial grade requirements,pass through dangerous environmental certification and comply with FCC and CE standards. The reliable waterproof industrial design could ensure continuous and stable operation of the automation system.
Specification of Industrial Full Gigabit Switch
| Product Name |
10/100/1000Mbps Managed Industrial Waterproof Switch (8TP) |
| Model No. |
IM-WS080WGM |
| Port |
8 x 10/100/1000M M12 network ports , M12(Female), 8-Pin A-Code, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning |
| Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2 DHCP ClientTFTP, HTTP, HTTPS, Telnet, Syslog SSH, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB, |
| Managed |
☆ Jumbo frame processing: 9k
☆ Report buffer: 64K
☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression
☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb
☆ ITU-802.3/Y1344 ERPS
☆ Multicast protocol: IGMP Snooping
☆ Port management: support port isolation and port aggregation
☆ DHCP management: support DHCP Snooping, option 82
☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities
☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection
|
| Switching Features |
Exchange capacity: 20Gbps Packet forwarding rate: 14.8Mpps
MAC address table: 4K Swap delay: <5μs
Transmission method: store and forward
|
| Power supply |
Input voltage:DC12-52V
Reverse connection: support
Overload protection: support
Redundant protection: support
|
| Environment |
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;
Working humidity:5%～95%, non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
|
| Mechanical information |
Safety class:IP67
Dimension:125 x 60x 25mm. Weight: 0.5kg
|
| Warranty |
3years |
Key Features of Managed Function
- Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
- Support ITU-802.3/Y1344 ERPS ring protocol.
- Support SNMPv1, v2Web management, support user login password protection and other device configuration methods
- Support 9k Jumbo frame, MAC restriction
- Support VLAN: support port VLAN and 802.1Q Tag
- Support QoS priority, DSCP remapping, Priority and Queue Mapping, Port Priority, Q queue weight
- Support IGMP port bandwidth control, broadcast storm suppression
- Support Port Aggregation, Port Mirroring, Port isolation, Bandwidth control
- Support MIB library opening to meet the requirements of operation and maintenance
- Support WEB, CLI, Telnet, Windows utility and SNMP management methods
- Reset: Support restart and restore default configuration

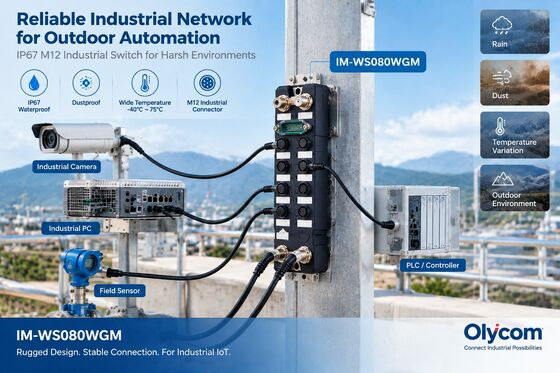

Application of IP67 Waterproof switch:
Accessories
| Power Cable and Connector |
| M12 L-code 4pin, 10A max, female connector with cable, Length:1m |
| M12 L-code 4pin, 10A max, dual connectors female-male connector with cable, Length:1m |
| M12 L-code 4pin, 10A max, female connector, unshielded TPU casing |
| M12 L-code 4pin, 10A max, male connector, unshielded TPU casing |
| Signal Cable and Connector |
| M12 A-code 8pin, male connector with cable, Length:1m |
| M12 A-code 8pin, male connector with cable, Length:1m |
| M12 B-code 8pin, male connector with cable, Length:1m |
| M12 B-code 8pin, male connector with cable, Length:1m |
FAQ:
1. What is IM-WS080WGM used for?
IM-WS080WGM is an IP67 managed industrial Ethernet switch designed for outdoor and harsh industrial environments.
It is suitable for applications such as:
- Outdoor automation systems;
- Industrial equipment networking;
- Machine vision systems;
- Industrial monitoring applications.
2. Why is IM-WS080WGM suitable for outdoor applications?
IM-WS080WGM features an IP67 protection rating and metal housing design, helping protect the switch in environments where dust, moisture, and temperature changes may occur.
It supports an operating temperature range of -40°C to 75°C, making it suitable for various industrial field applications.
3. What is the advantage of the M12 Ethernet interface?
IM-WS080WGM uses M12 industrial Ethernet connectors instead of standard RJ45 ports.
The M12 interface is designed for industrial applications requiring:
- Protected connections;
- Machine-side installation;
- Outdoor equipment networking.
4. How many Ethernet ports does IM-WS080WGM have?
IM-WS080WGM provides 8 × 10/100/1000Mbps M12 Ethernet ports.
It can connect multiple industrial Ethernet devices, such as controllers, cameras, and field equipment.
5. Is IM-WS080WGM a managed Ethernet switch?
Yes. IM-WS080WGM is a managed industrial Ethernet switch.
It supports management functions including:
- WEB management;
- SNMP;
- VLAN;
- QoS;
- Port isolation.
These features help engineers configure and maintain industrial networks.
