L2 L3 Managed Gigabit Industrial Ethernet Switch Poe Switch 90w 2*2.5G SFP+8*RJ45 Ports Outdoor Switch

L2 L3 Managed gigabit Industrial ethernet Switch poe switch

90w 2*2.5G SFP+8*RJ45 Ports outdoor switch

Key Features of 2.5G managed Industrial Network Switch

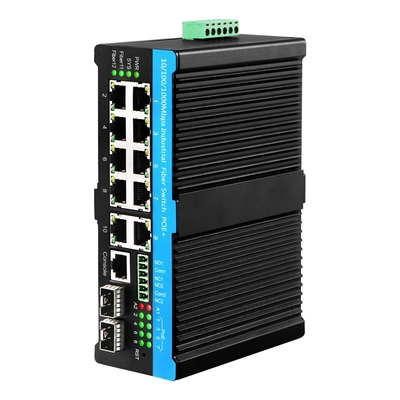

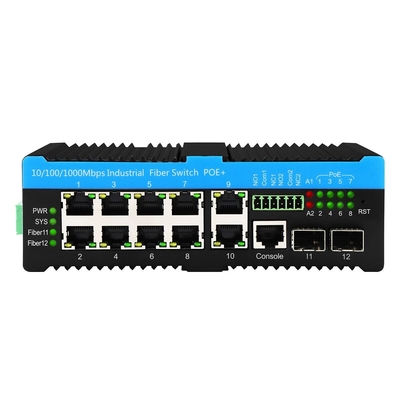

▪8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-FX SFP Fiber

▪2 Copper/MSA Fiber Combo ports ( Port 9, 10, and FX1, FX2)

▪Supports negative RS-232 console port

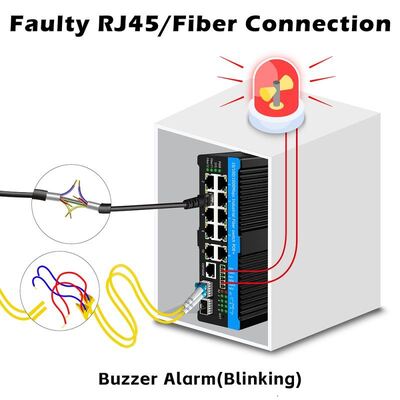

▪Cable diagnostic, Measuring cable normal or broken point distance

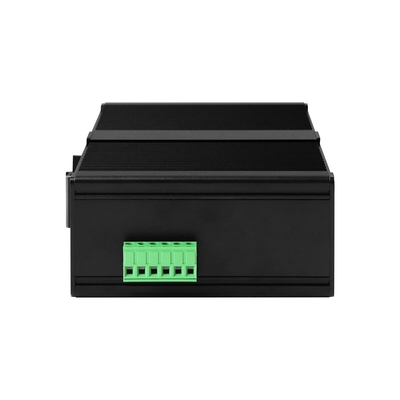

▪Redundant input power 48VDC (48~57VDC) or 100-240VAC

Management Interface

▪STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling

▪Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption

▪DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82

▪QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ

▪IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR

▪Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation

▪IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2

▪Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2

▪Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure

▪Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port

▪RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, IEEE802.1ab LLDP

▪Supports IPv6 Telnet server /ICMP v6

▪CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management

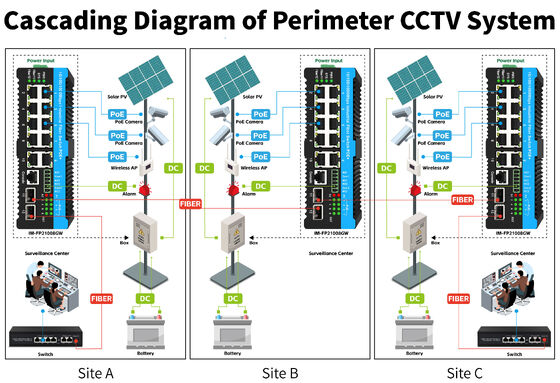

Application

Packing List:

FAQ:

Q1: How many PoE ports does the IM-FP21008GW industrial PoE fiber switch provide?

A:
The IM-FP21008GW provides 8x 10/100/1000Base-T RJ45 PoE ports and 2x 100/1000/2500Base-FX SFP fiber ports. The 8 copper ports support PoE power delivery for industrial network devices.

Q2: What is the maximum power output per PoE port?

A:
The IM-FP21008GW supports IEEE 802.3af/at/bt PoE standards:

• IEEE 802.3af: up to 15.4W
• IEEE 802.3at: up to 30W
• IEEE 802.3bt: up to 90W

Each PoE port can deliver up to 90W power for high-power PoE devices.

Q3: What devices can be powered by the 90W PoE ports?

A:
The 90W PoE ports are designed for high-power industrial and outdoor PD devices, including:

• PTZ dome cameras
• Outdoor wireless access points
• LED lighting systems
• Industrial PoE terminals

The switch is designed to provide power for demanding PoE applications such as PTZ domes, LED lighting, and wireless products.

Q4: Does the IM-FP21008GW support PoE management?

A:
Yes. The IM-FP21008GW is a managed industrial PoE switch supporting Web-based management, CLI, SNMP, and Telnet management interfaces.

Users can configure network parameters and monitor switch status through centralized management.

Q5: Can the switch monitor connected Powered Devices (PD)?

A:
Yes. The IM-FP21008GW supports management and monitoring functions for connected PoE devices.

It allows administrators to check connected PD status and diagnose network conditions, making it suitable for outdoor surveillance, wireless communication, and smart lighting applications.
