Name: 100G QSFP28 OEO Transponder 3 In 3 Out Multiplexing Incoherent 3R Regeneration
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM3800-OEO100G
Price: 57.00 USD
Availability: InStock

100G QSFP28 OEO Transponder 3 In 3 Out Multiplexing Incoherent 3R Regeneration

1pc

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 100G DWDM Transponder

Port: QSFP28, 3 In 3 Out

Coherent: No, Incoherent

Dimension: 0.5U In OM3800 Series

Highlight:

100G QSFP28 OEO Transponder

3 In 3 Out OEO Transponder

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM3800-OEO100G

Document: DWDM OTN SYSTEM OLYCOM.pdf

Payment & Shipping Terms

Packaging Details: 1 piece in a box, 1Kg G.W.

Delivery Time: 3~7 days

Payment Terms: T/T, PayPal

Supply Ability: 1500pcs/month

Gallery

100G QSFP28 OEO Transponder 3 In 3 Out Multiplexing Incoherent 3R Regeneration

Product Description

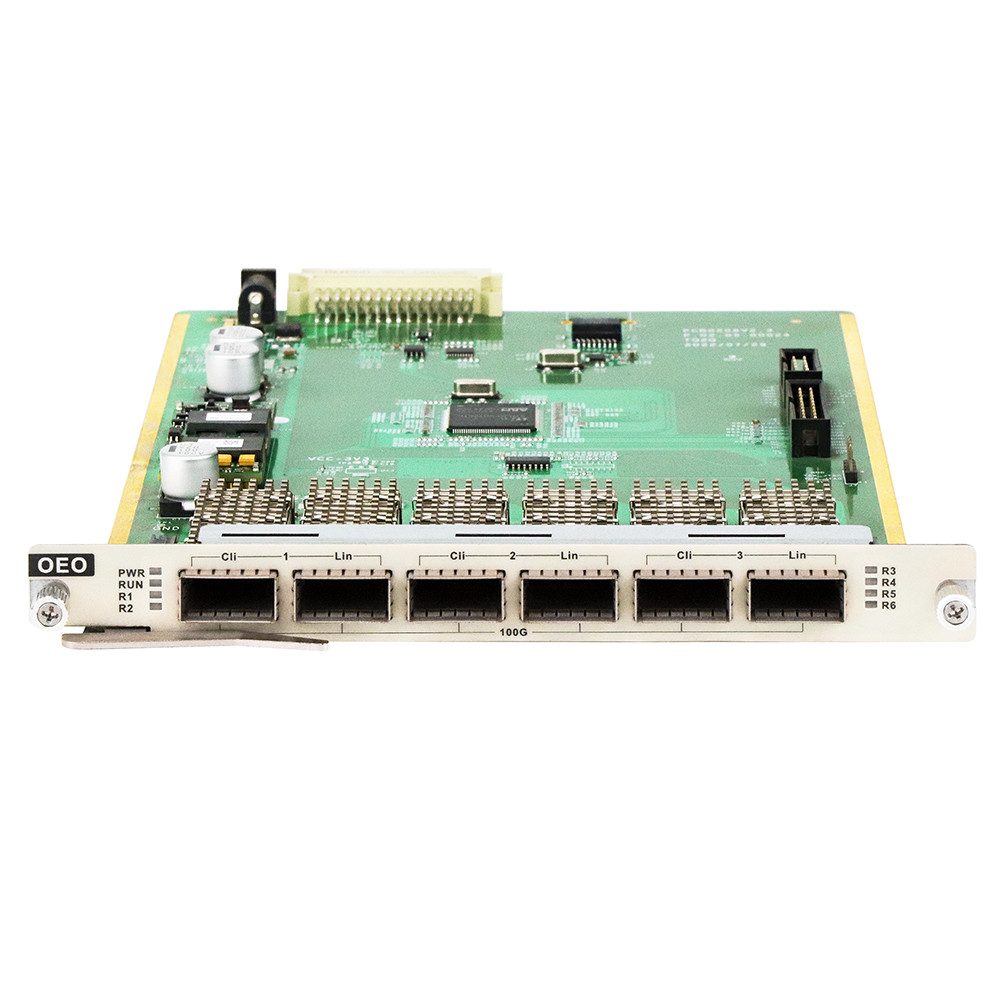

100G QSFP28 OEO Transponder Card

100G QSFP28 OEO Transponder 3 In 3 Out Multiplexing Incoherent 3R Regeneration 0

Function	Note
Application	100G wavelengths transform
interface	Client-side interface: 3 QSFP28 hot-pluggable WDM-side interface: 3 QSFP28 hot-pluggable
Line mode	Supports three 100G service transparent transmissions, which can transform three 100G service optical signals into two WDM standard wavelength optical signals
Support service type	100GE OTU4
Relay mode	Support 40G&100G wavelength electrical relay Optical signal single, multi-mode transform
WDM technology	Support DWDM: C band 100GHz 40/48 waves,50GHZ 80/96 waves
Occupied slot number	Support OM3800 series chassis, occupy 1 slot , (0.5U)
Network management function	Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. Support port loopback and port shutdown
Max power consumption	30W (including Module)
MTBF	＞100000 hours

Introduction

The 100G incoherent OEO service card supports three 100GE bilingual service access.
Its main function is to perform 3R regeneration of three 40GE or 100GE service signals that are accessed, and can be transformed into three WDM standard wavelength optical signal, so that the multiplexer unit performs wavelength division multiplexing on optical signals of different wavelengths, and at the same time implements the inverse process of the above process.
It’s suitable for short-range transmission of wavelength division in metro areas at 100G rates.

What is DWDM?

It is a technology helping increase the bandwidth of over existing fiber optic cables and making it ideal for long-haul transmission.

What does it do?

It can be integrated with existing fiber optic cables, allowing providers to increase data capacity as optical technology improves.
