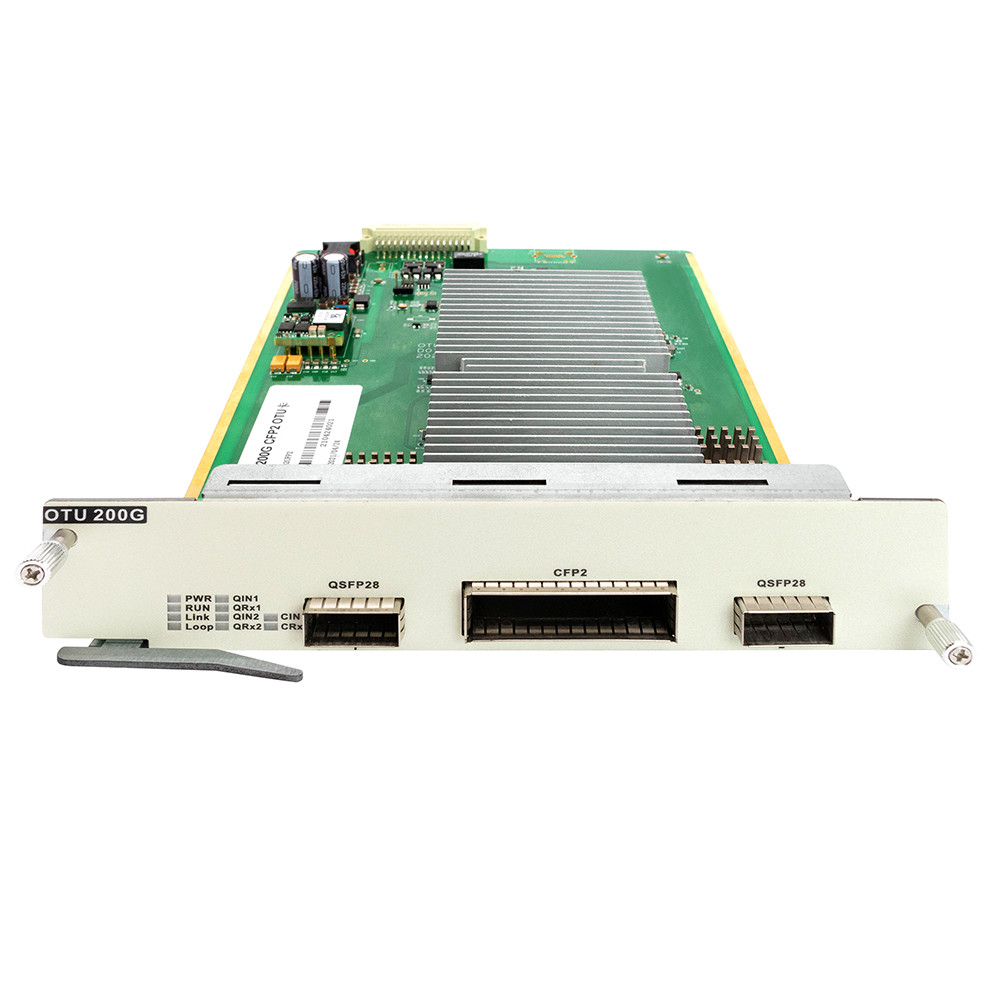

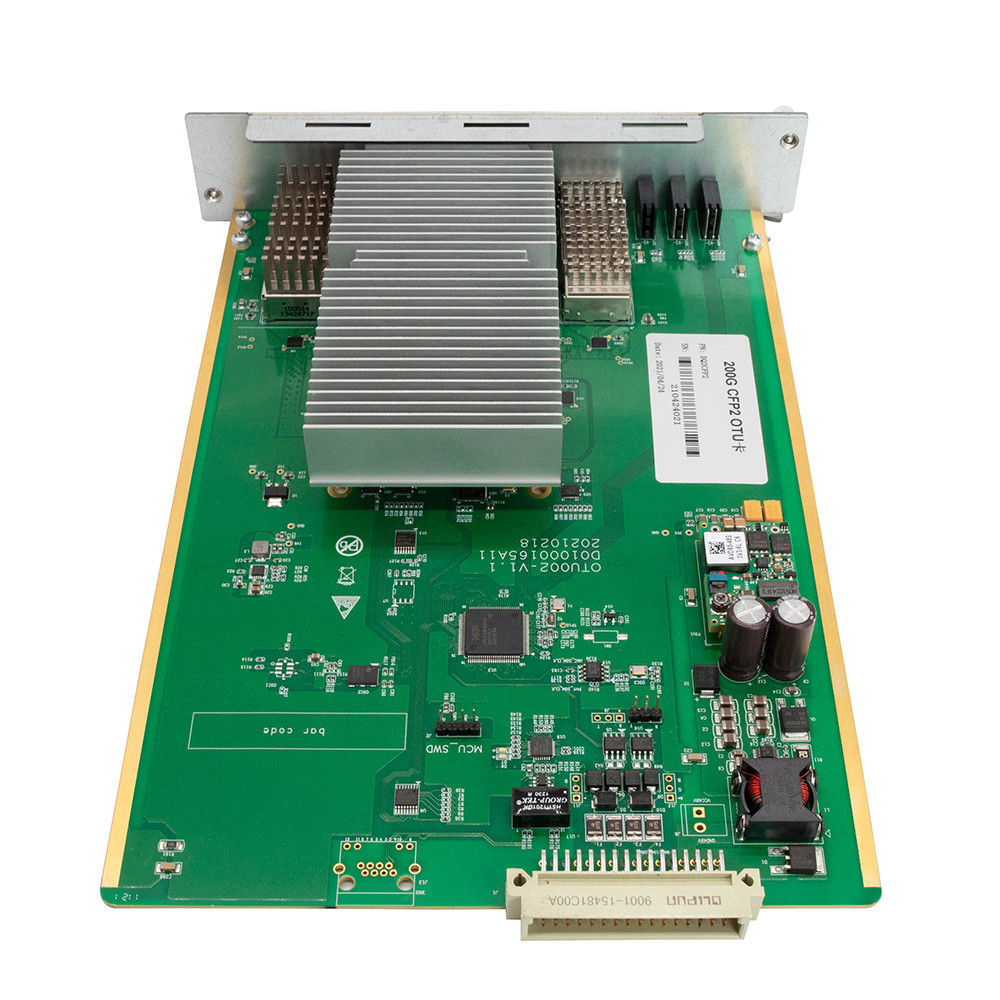

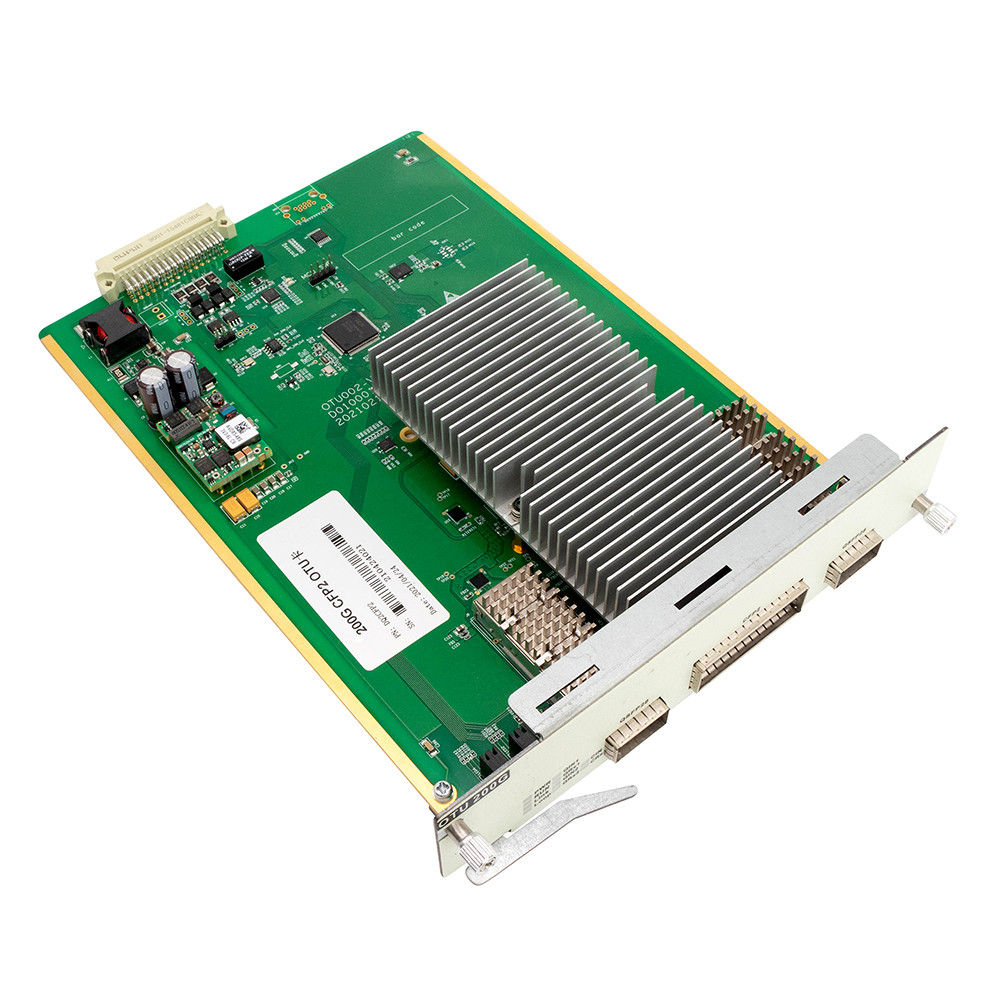

200G OTN Coherent Muxponder
| Function | Note |
| Interface |
Client-side interface: 2 QSFP28 ,hot-pluggable
WDM-side interface: 1 100G/200G CFP2 , hot-pluggable, coherent QPSK |
| Line mode | Support one 200GE service transmission, transform two 100GE service optical signal into one 200G rate DWDM standard wavelength optical signal |
| Relay mode | Support 200G wavelength electrical relay |
| Support service type |
100GE |
| WDM technology | Support DWDM: C band 50GHz 96 wavelengths adjustable |
| FEC technology | Support oFEC |
| Occupied slot number | Support OM3800 series chassis, occupy 2 slots,(1U) |
| Network management function |
Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, error code statistics, etc.
Support port loopback and port shutdown |
| Max power consumption | 50W (including Module) |
| MTBF | ＞100000 hours |
The 200G coherent TMUX service card supports two 100GE service access, adopts advanced technologies such as QPSK modulation and coherent reception, and overcomes the transmission physical effects of high-speed transmission systems on OSNR requirements, CD tolerance, PMD tolerance, and nonlinearity.
It can realize 200GE business over 1200 kilometers of non-relay transmission, and the line side interface supports C-band 96-wave (50GHz) tunable.
