10/100/1000Mbps Managed Industrial POE Fiber Switch 9.6KB Jumbo Frame

10/100/1000Mbps Managed Industrial POE Fiber Switch 9.6KB Jumbo Frame
Features Gallery Product Description Request A Quote
Warranty: 3 Years
VLAND ID: 4096
Jumbo Frame: 9.6KB
MAC Address Table Size: 8K
LEDs: Power, Network, Fiber
Input Power: 48-52VDC
High Light:

Managed Industrial POE Fiber Switch


1000Mbps POE Fiber Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: IM-FP288GW
Payment & Shipping Terms
Packaging Details: 1pc in box
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 6000pcs per month
Product Description

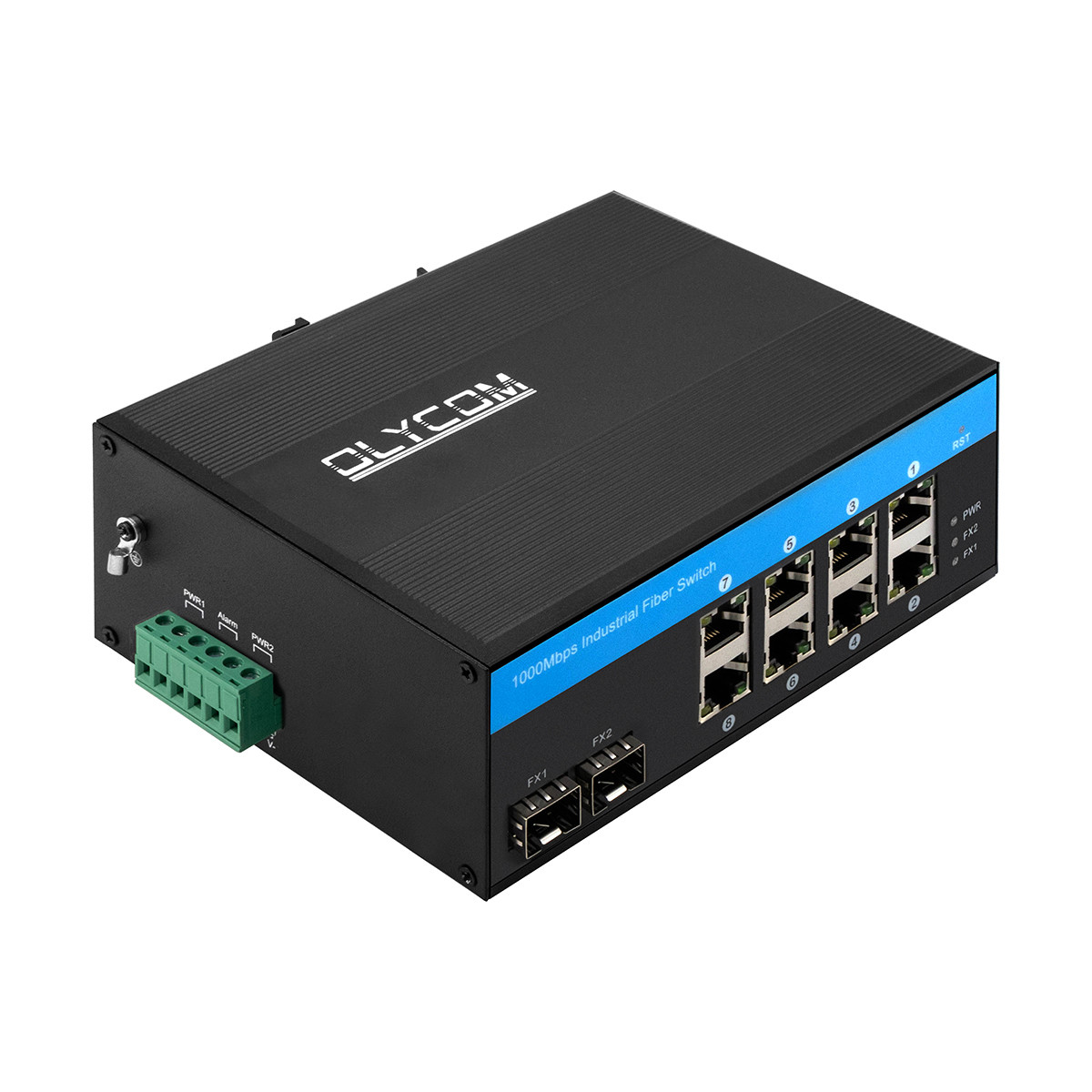

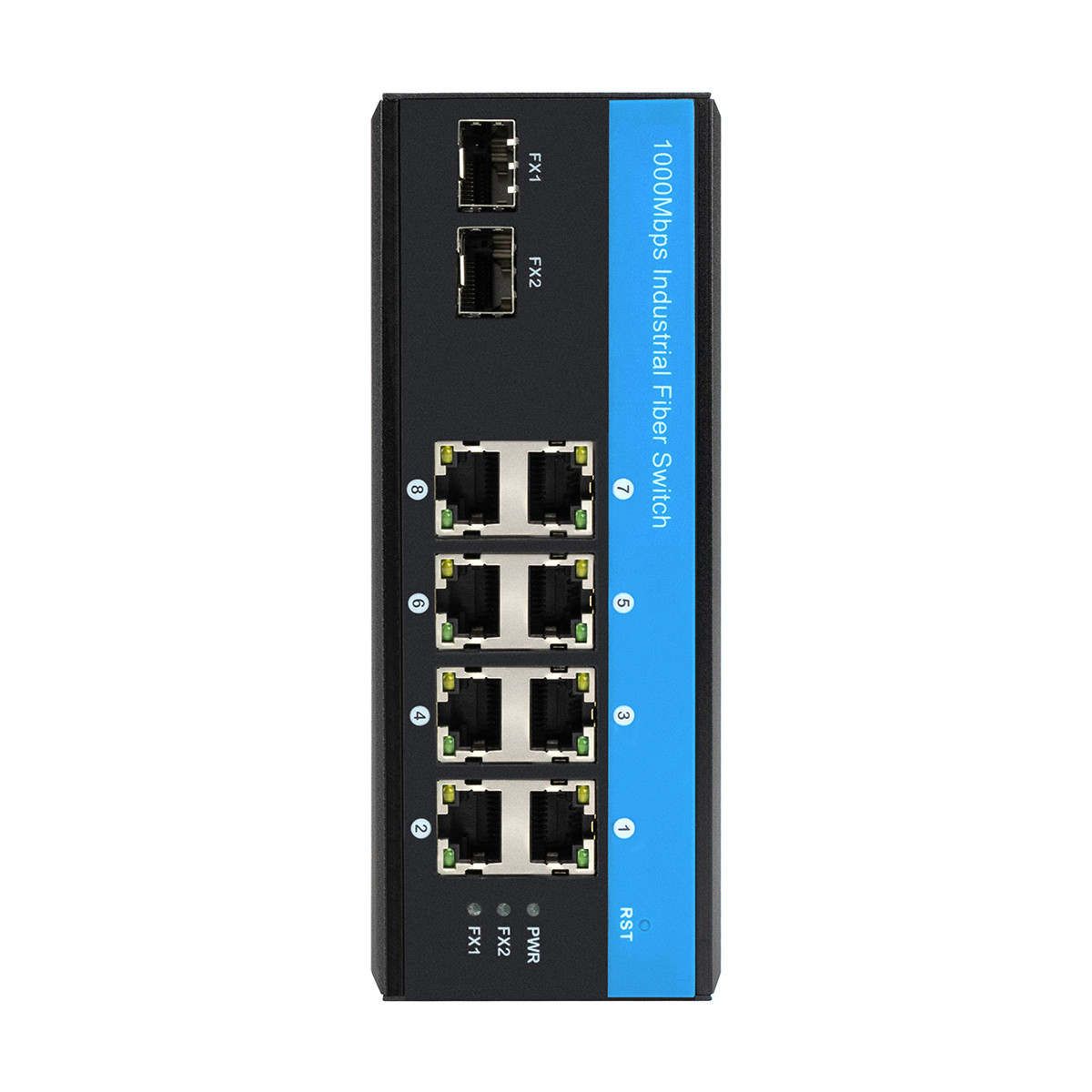

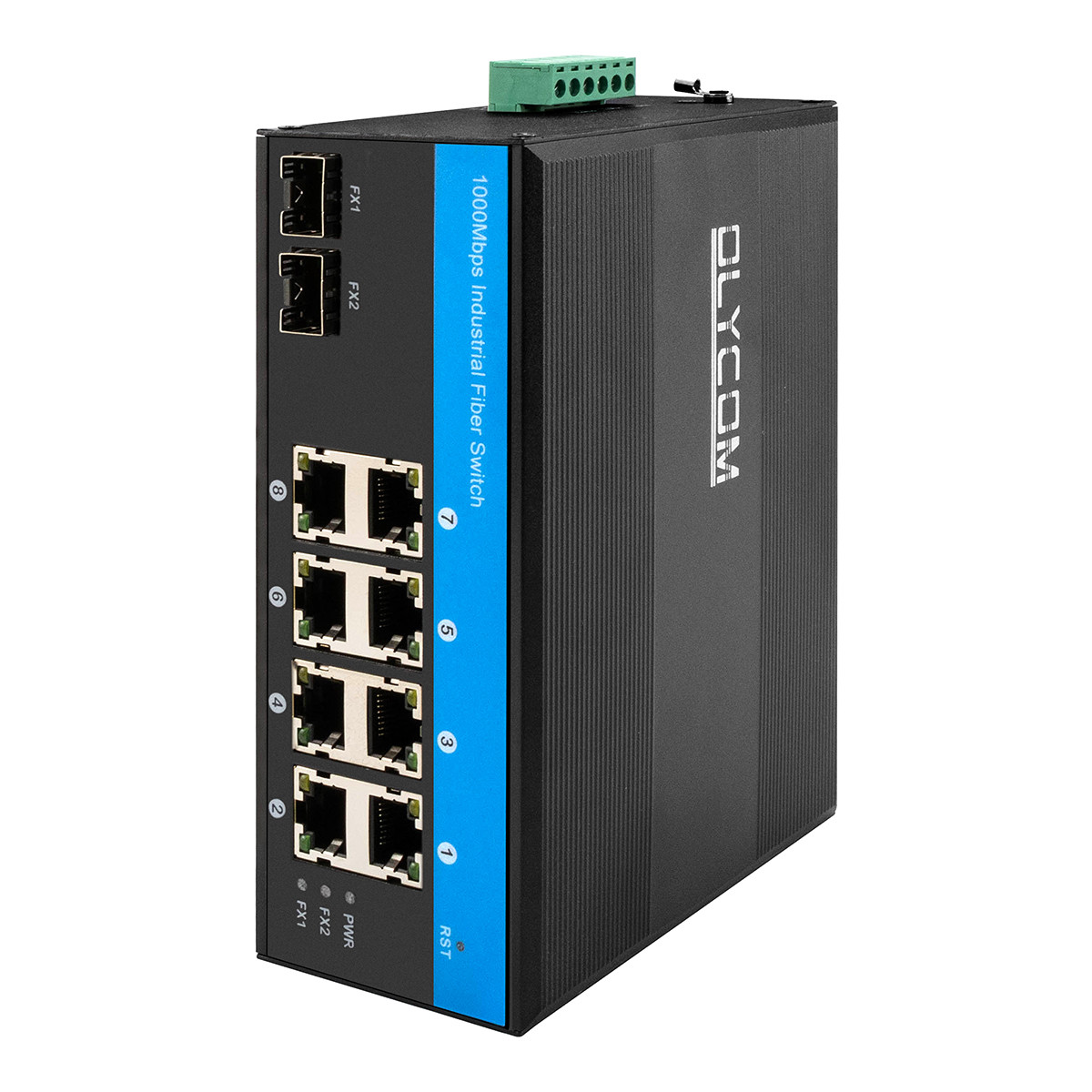

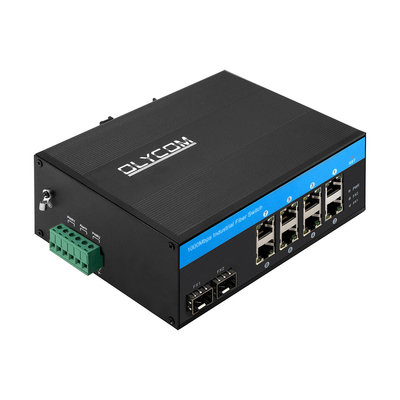

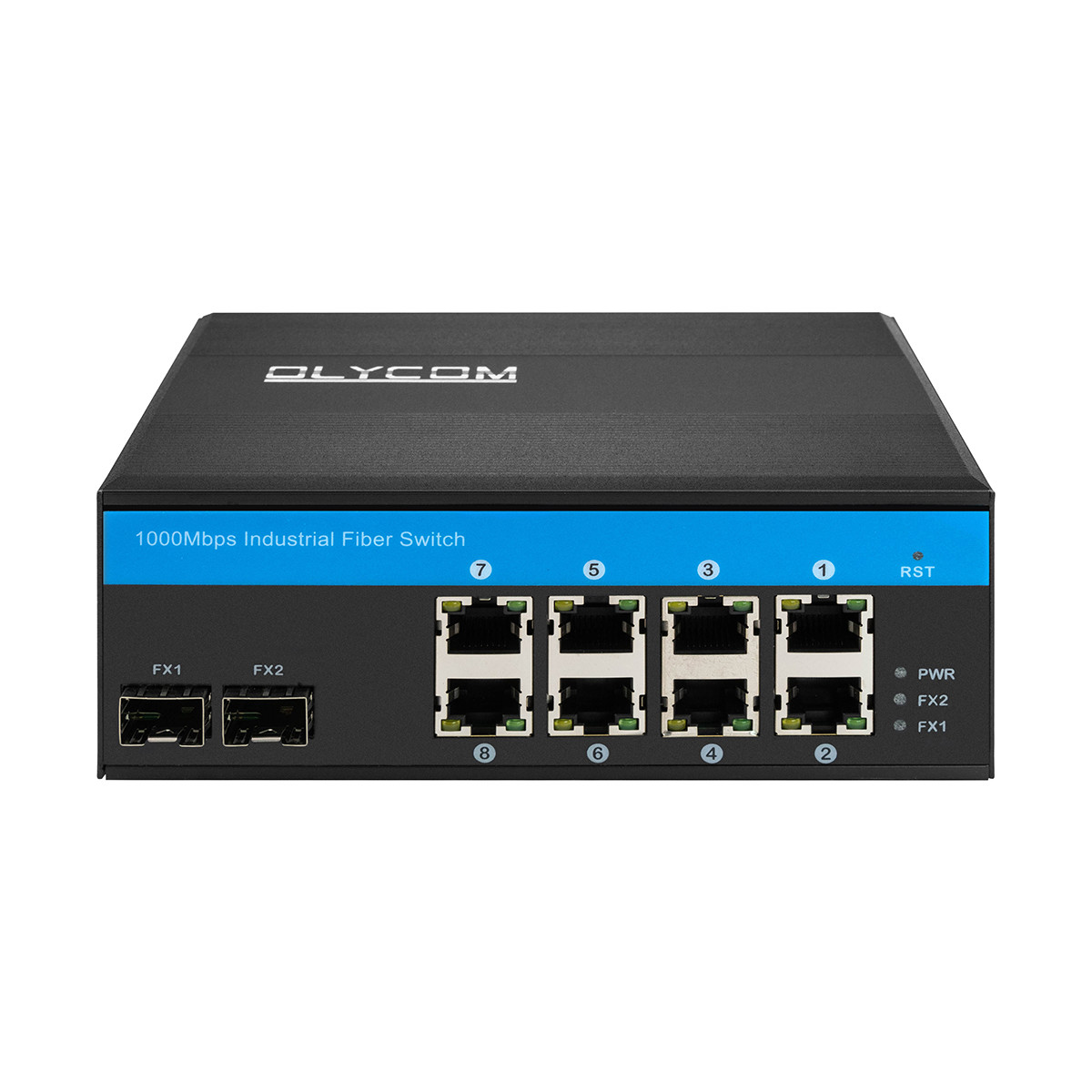

8 Port Industrial Fiber Switch

10/100/1000Mbps Managed Industrial POE Fiber Switch




Introducing the IM-FP288GW series - a cutting-edge 10/100/1000 Mbps 8 Port POE+ L2 Managed Fiber Optic Switch from Shenzhen O-link Technology Co., Ltd. This high-performance switch is designed to comply with IEEE802.3af/at standards, making it ideal for powering POE IP cameras via Ethernet cables. With a robust construction and a power range of up to 100 meters, this switch is guaranteed to perform flawlessly in harsh conditions. It operates seamlessly in temperatures ranging from -40 ℃ to + 85 ℃, boasts an IP40 protection degree, and meets stringent EMC industrial grade requirements. The switch is easy to install via DIN rail installation and has gone through rigorous testing to pass dangerous environmental certifications, FCC, and CE standards. With its reliable industrial grade design, the IM-FP288GW series promises to deliver continuous, stable, and efficient operation for your automation system.




Product Name 8 Port POE+ L2 Managed Fiber Optic Switch
Model No. IM-FP288GW

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

8 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber

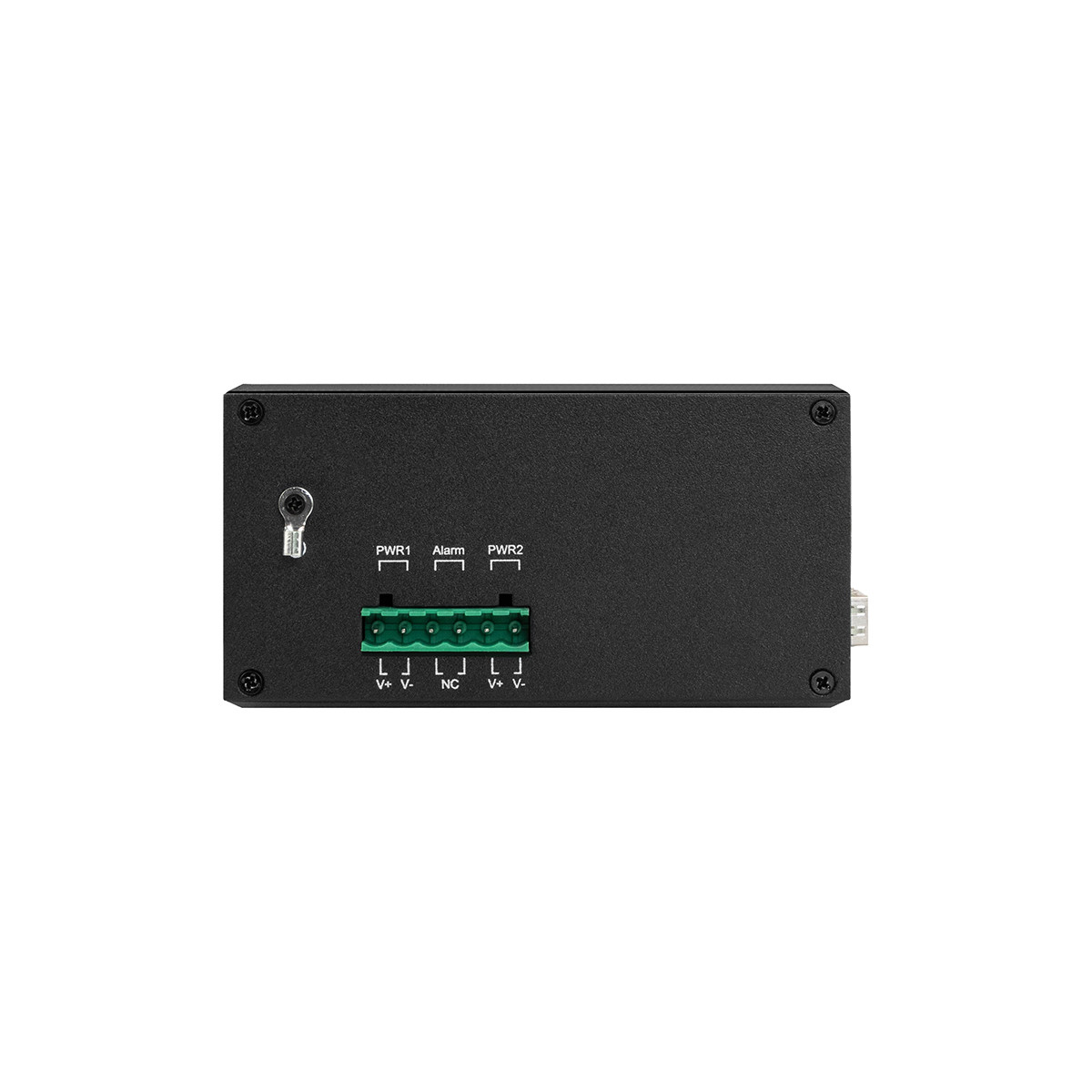

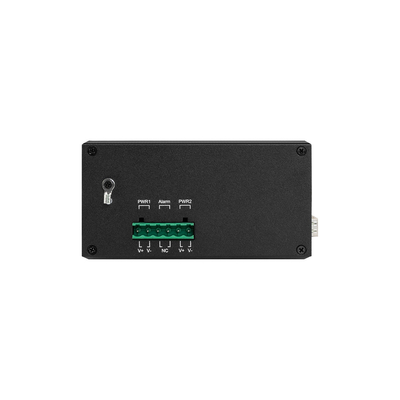

Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

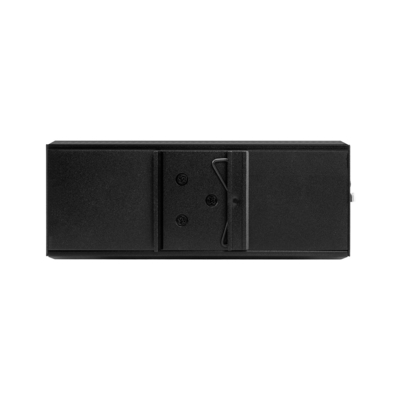

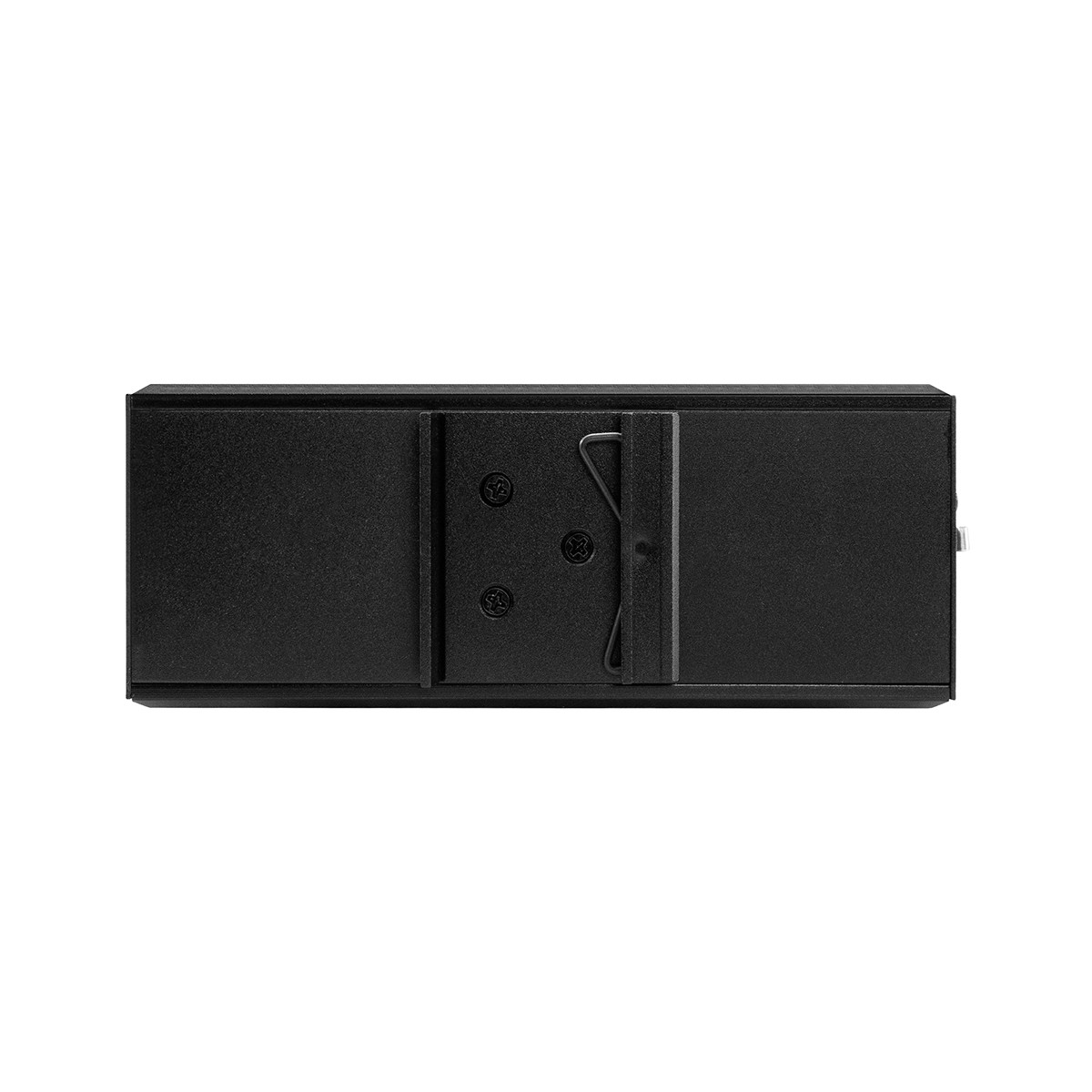

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 5 years repairing


10/100/1000Mbps Managed Industrial POE Fiber Switch 9.6KB Jumbo Frame 0
