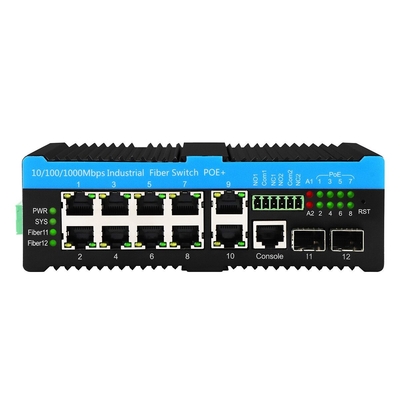

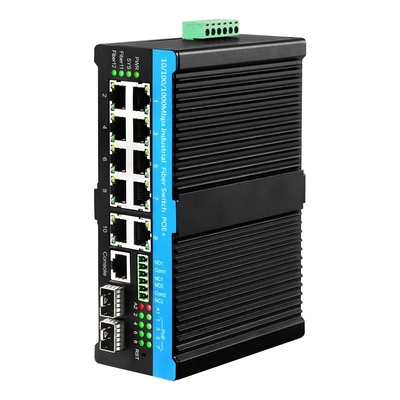

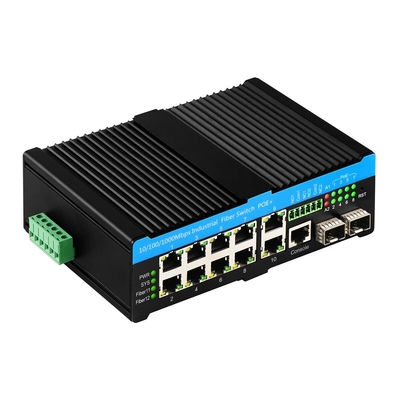

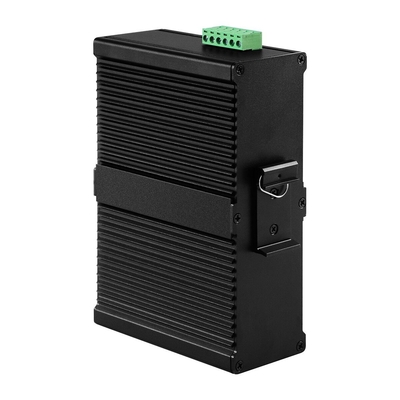

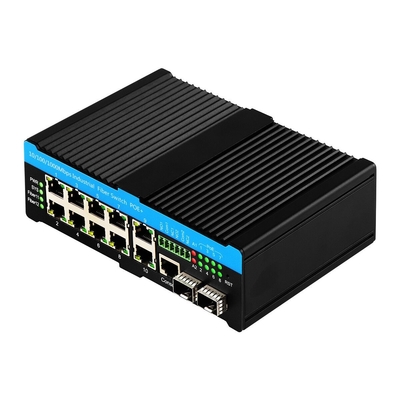

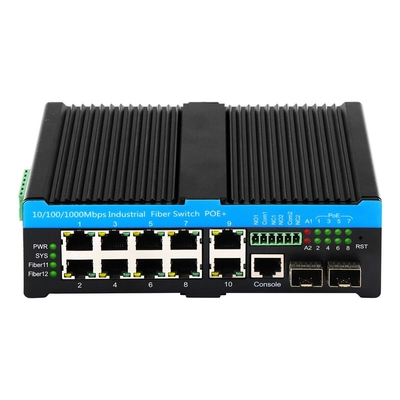

90w managed DC48v Industrial Poe Switch
Gigabit Fiber switch Din Rail for outdoor
Introduction of 90w managed switch
IM-FP21008GW is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.IM-FP21008GW provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 750W ,This enables it to provide power for the most demanding PoE applications for PTz domes,LED lighting and wireless products. It is compliant to G.8032 ERPS V1/V2 Ring protocol.The .IM-FP21008GW is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis ,6kv surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the IM-FP21008GW from excessive heat.
Key Features of managed poe switch

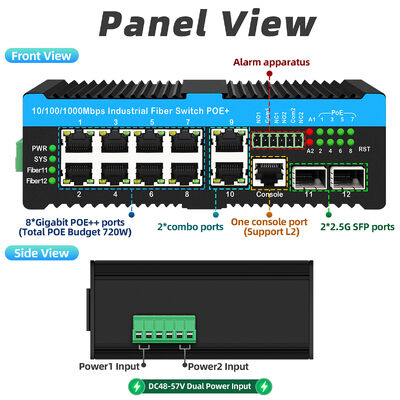

▪8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-FX SFP Fiber
▪2 Copper/MSA Fiber Combo ports ( Port 9, 10, and FX1, FX2)
▪Supports negative RS-232 console port
▪Cable diagnostic, Measuring cable normal or broken point distance
▪Redundant input power 48VDC (48~57VDC) or 100-240VAC
▪STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
▪Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
▪DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
▪QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
▪IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
▪Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
▪IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
▪Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
▪Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
▪Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
▪RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, IEEE802.1ab LLDP
▪Supports IPv6 Telnet server /ICMP v6
▪CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management

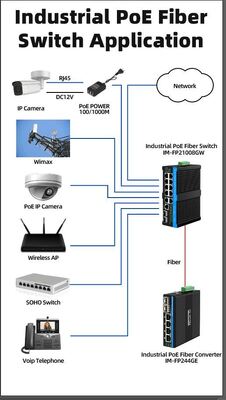

Application

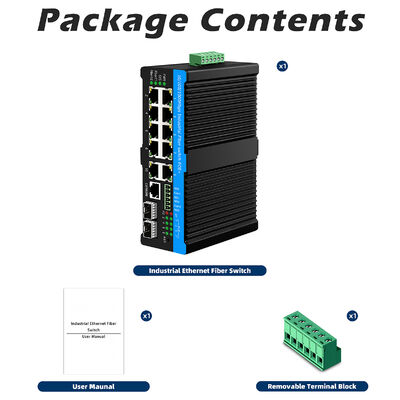

Packing List:
Our advantage:
1. Manufacturing: We are a powerful factory and has been in this industry about 20 years
2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.
3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
4. Small order accepted: Low MOQ accepted. 1pcs are available.
5. Insurance: Industrial-grade products 3 years warranty, other products 1 years warranty.
