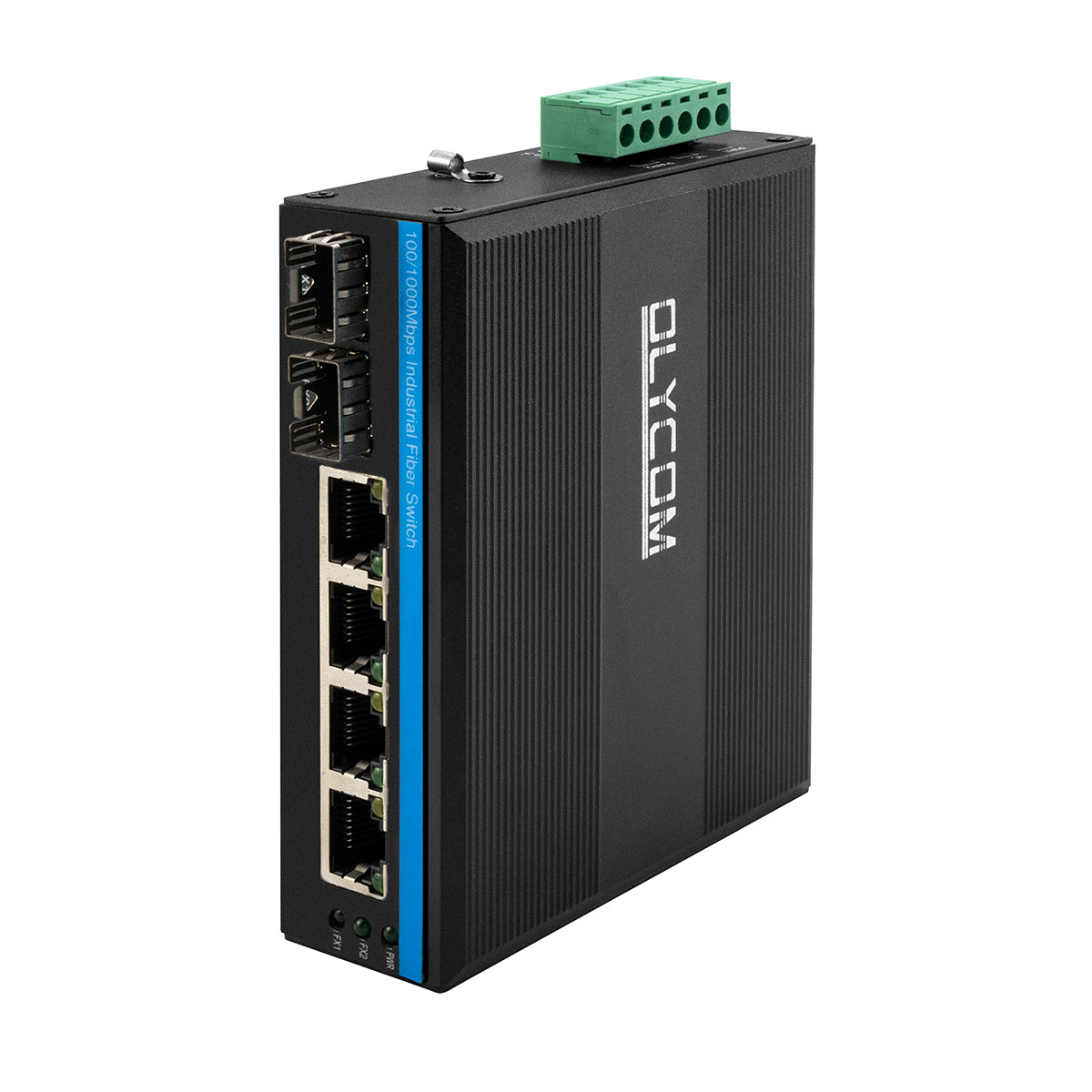

Dc 48-52v Industrial Unmanaged Poe Switch Gigabit Ethernet 6 Port Rj45 Fiber Din Rail

1 pc
Dc 48-52v Industrial Unmanaged Poe Switch Gigabit Ethernet 6 Port Rj45 Fiber Din Rail
Features Gallery Product Description Request A Quote
Power Supply: DC 48-52V
Working Temperature: -45~85℃
Product Name: Industrial Poe Fiber Swtich
Dimension: 113.8 X 93 X 34.9mm
Applciation: Traffic Control And Transportation
High Light:

dc 48v industrial unmanaged poe switch


industrial unmanaged poe switch din rail


dc52v unmanaged poe ethernet switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP244GE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

Industrial Gigabit Ethernet 6 port RJ45 unmanaged POE fiber Switch with din-rail

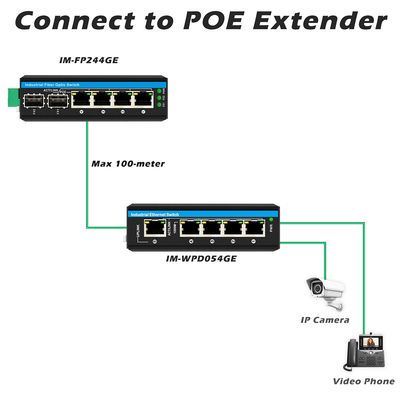

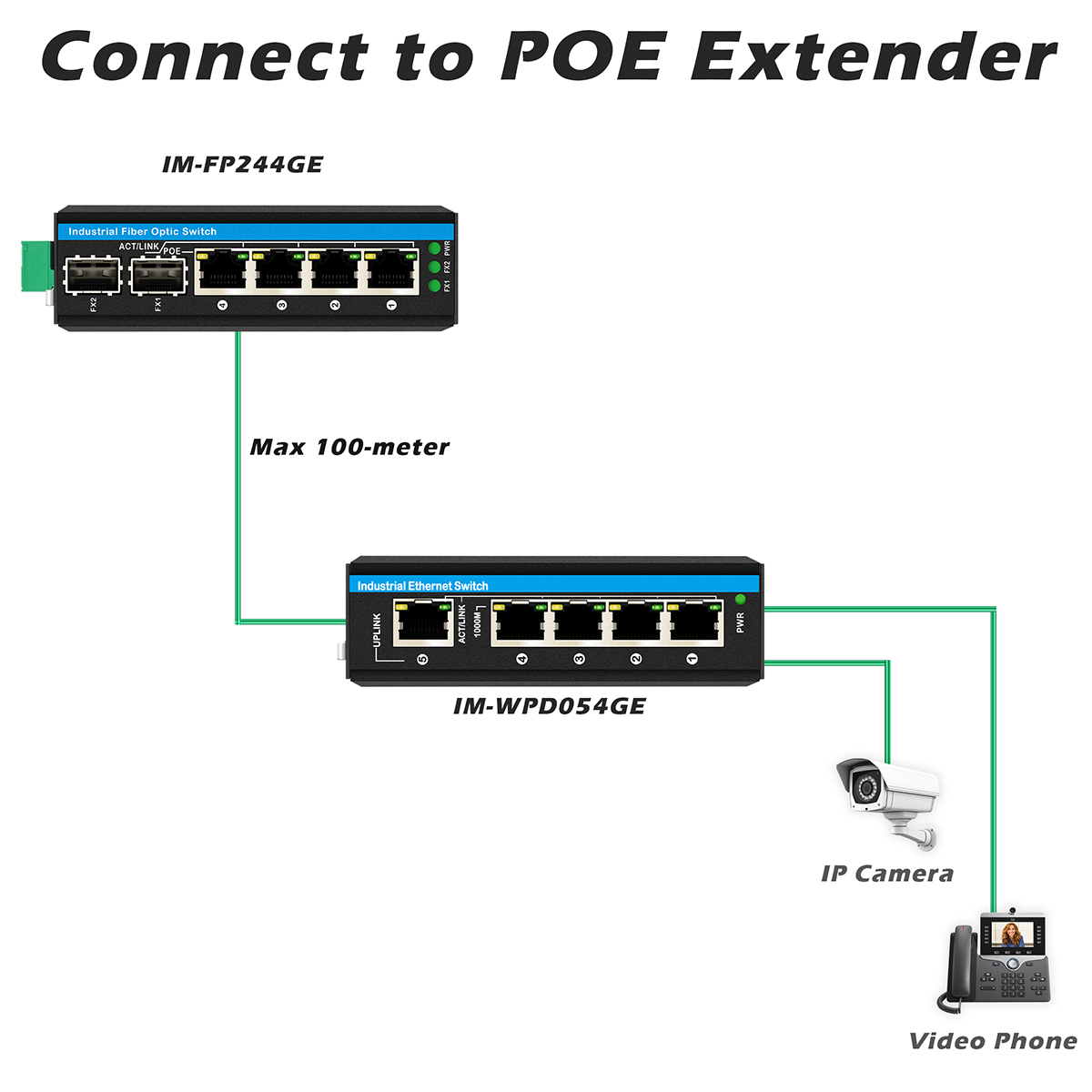

IM-FP244GE series is the 10/100/1000Mbps industrial POE fiber switch, comply with 15.4w/30w/60w power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 , meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliale industrial grade design could ensure continuous and stable operation of the automation system.


Key Features of Industrial poe fiber switch


  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • POE output power 15.4W/30W/60W for 1 ~ 4 RJ45 ports

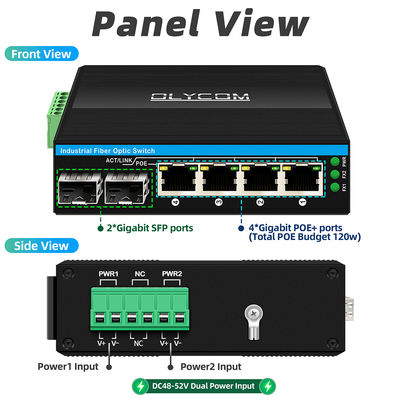

  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports, 2 x 1000Mbps SFP fiber port

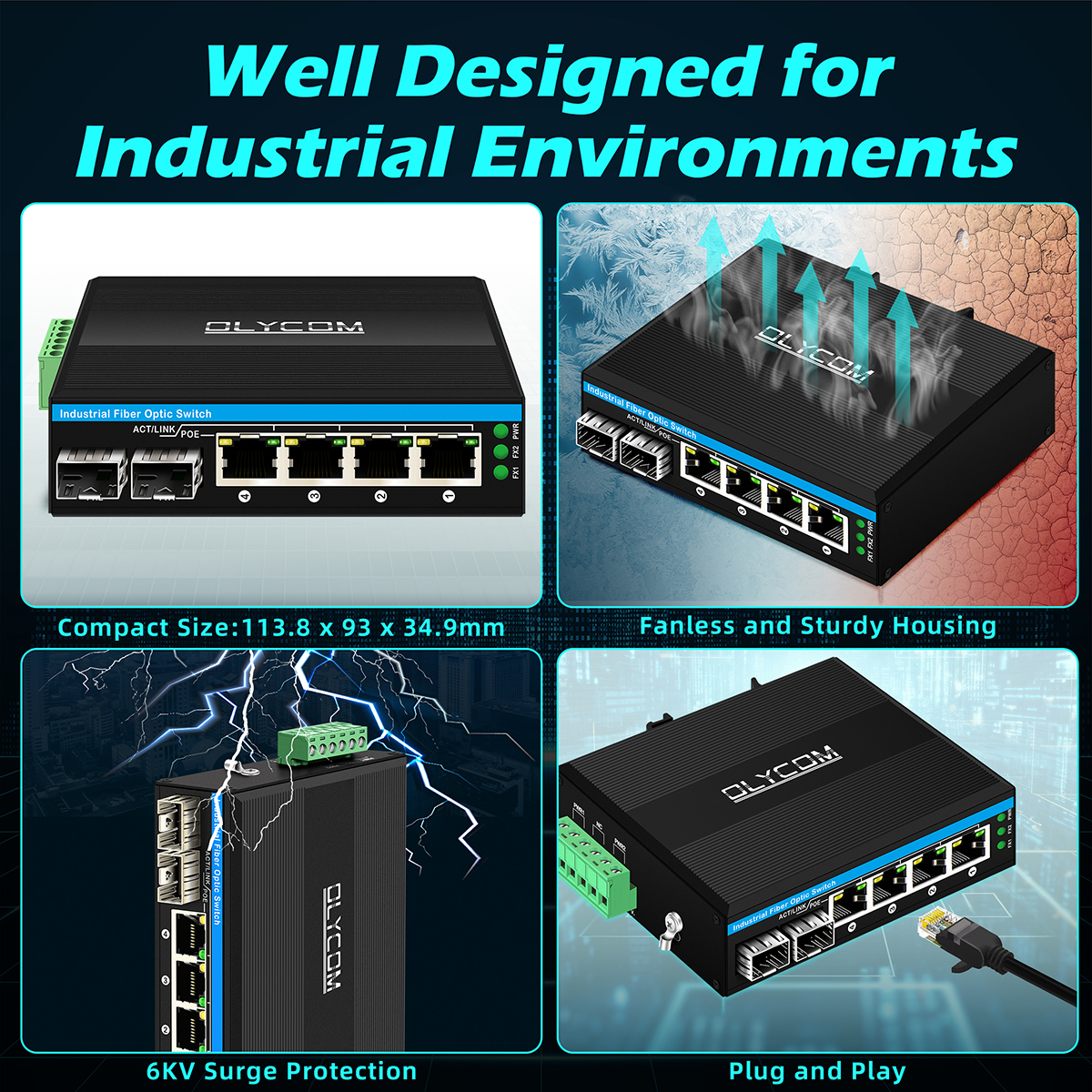

  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism
  • Operating environment temperature: -40 ° ~85 ° c


Specification of Industrial Full Gigabit Switch


Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch(2F+4TP)
Model No. IM-FP244GE

2 x 1000Mpbs SFP port

SM: 1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM: 1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x , IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X, IEEE 802.3ad, ITU-T G.8032 ERPS, IEEE802.3af, IEEE802.3at
Protocol IGMPv1/v2,GVRP,SNMPv1/v2c/v3,DHCP Client TFTP,SMTP,RMON,HTTP,HTTPS,Telnet,Syslog,GVRP SSH,SNMP Inform,LLDP,SNTP Server/Client,PVLAN
Switching Features

Priority queue: 4

Number of VLANs: 256

VLAN ID: 1~4094

Number of multicast groups: 256

MAC table: 4K

Packet buffer: 1Mbit

Packet forwarding rate: 14.88Mpps

Exchange delay: <5μs

Alarm Output One relay alarm output: support IP/MAC conflict, power supply, port and ring alarm
Power supply

Input voltage: DC 48-52V

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W/30W (port 1~4)

Support reverse connection, overload protection and redundant protection


Working Temp: -40°~ 75°C ; Storage Temp: -40°~ 75°C;

Working humidity: 5%~95%, non-condensing

Industry Standards

EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A

EMS: IEC61000-4-2(ESD) ±8kV(contact),± 15kV(air)

IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

IEC61000-4-6(CS) 3V(10kHz~150kHz);10V(150kHz~80MHz)

IEC61000-4-16 30V(cont.),300V(1s)

IEC60068-2-6, IEC60068-2-27, IEC60068-2-32

IEC61000-6-2 EN50155,EN50121-4 NEMA TS-2

Mechanical information

Shell: Corrugated metal shell; Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

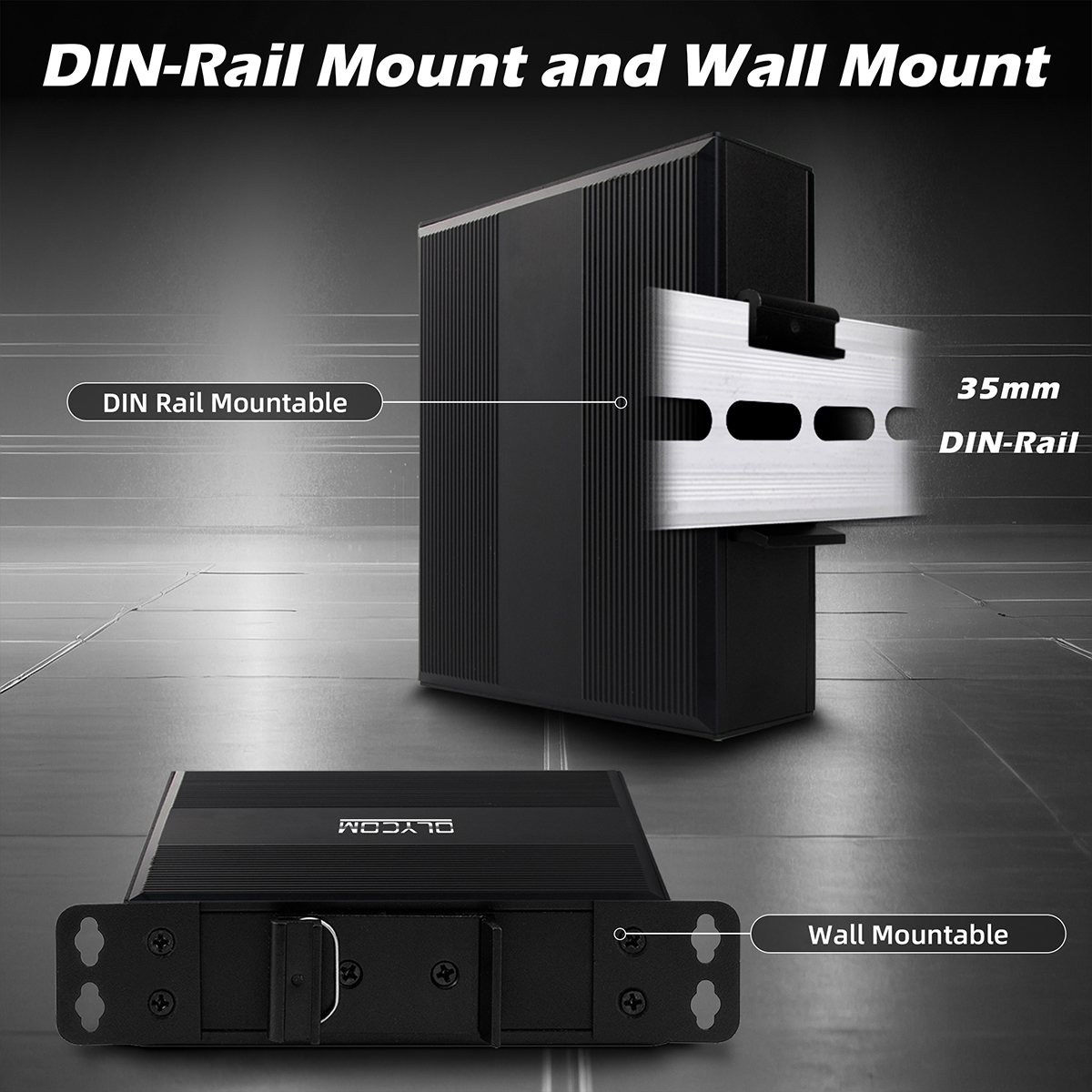

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing


Dimension of unmanaged gigabit switch


4 Port POE Din Managed Network Switch Gigabit Based Mini 48V Dual Input 1


Packing box of Din rail unmanaged switch


Dc 48-52v Industrial Unmanaged Poe Switch Gigabit Ethernet 6 Port Rj45 Fiber Din Rail 1

  1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

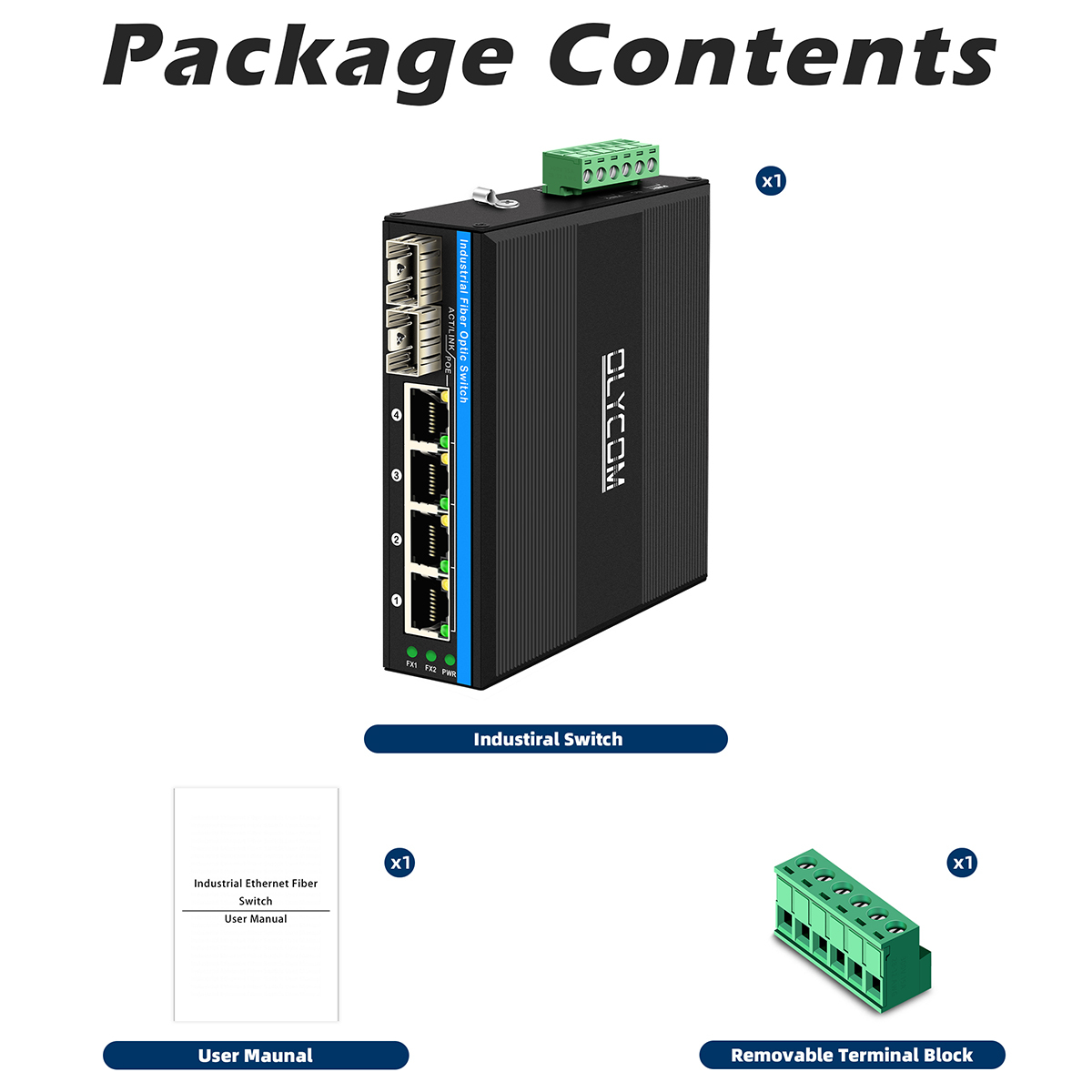

  2. The standard packing usually contains a main device, a warranty card and a user manual.
  3. Packing box dimension for 1pc: 23*16.5*5.8cm
  4. 40pcs in a packing box of 67*33*47cm dimension.


  • Production steps

Welding: Weld the necessary components

Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.

Assembling: Builds up components of a product, like panels, screws, PCB boards.

Testing: To make sure the product is basically working fine after assembling

Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.

Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.

QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.

When all above is done, the product will go to market.
