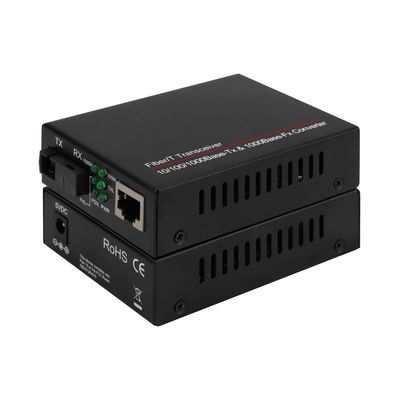

Mini Single Core 100/1000M Unmanaged Media Converter Single Mode Black

1 pair
Mini Single Core 100/1000M Unmanaged Media Converter Single Mode Black
Features Gallery Product Description Request A Quote
Product Name: Single Mode Media Converter
Dimension: 93*70*25mm
Fiber Port: SC Connector
Wavelength: 1310/1550nm
Input Voltage: DC5V1A
Distance: 20KM
High Light:

SC Connector Unmanaged Media Converter


Single Core Ethernet Media Converter


20KM Ethernet Media Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: TA510-GE V1
Payment & Shipping Terms
Packaging Details: 1 pair in a carton, 0.8kg
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 1500 pairs/month
Product Description

Unmanaged gigabit single mode fiber media converter 20km


Key Features of single fiber Ethernet optic converter


  • 1000BASE-FXFIBER to 10/100/1000BASE-T COPPER Ethernet conversion
  • 1600byte super data packet transmission
  • Full- positioned LEDs to indicate power and network status
  • Available for 14slots rack
  • Full duplex-flow control, Half duplex-back pressure
  • Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
  • DC5V1A(external), CE RoHS compliant
  • Black, visually nice outlook
  • It is fine to make it POE version based on this same PCBA.


Specification of 20KM media converter



IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),

IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control),

IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree

10/100/1000BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
1000BASE-FX 9/125um singlemode fiber cable (20/40/60/80/100/120km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Dimensions 70mm(W) x 93mm(D) x 25mm(H)
Weight Net weight : 0.16kg; Gross weight : 0.42kg
Input Voltage DC 5V1A with External power adapter
Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 1K
Buffer Size 128K
Operating Temperature 0℃~50℃
Storage Temperature -40℃~70℃
Storage Humidity 5%~90% non-condescending


Introduction of simplex media converter


  1. Olycom TA510-GE series Gigabit Ethernet media converters feature 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology, utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km.
  2. It’s often applied in school, cyber bars, offices, and telecommunication networks.


Application of Gigabit Media Converter


Mini Single Core 100/1000M Unmanaged Media Converter Single Mode Black 0

Mini Single Core 100/1000M Unmanaged Media Converter Single Mode Black 1




1 What is your competitive advantage

Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS/TNT.

Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces


2 Tell me something about your packing

It is all neutral packing box. If you need to do some change, we support it.


3 Do you accept sample order?

MOQ is 1pcs/set. It is good to test sample quality for long-term cooperation.


4 Q: What is warranty time?

A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
