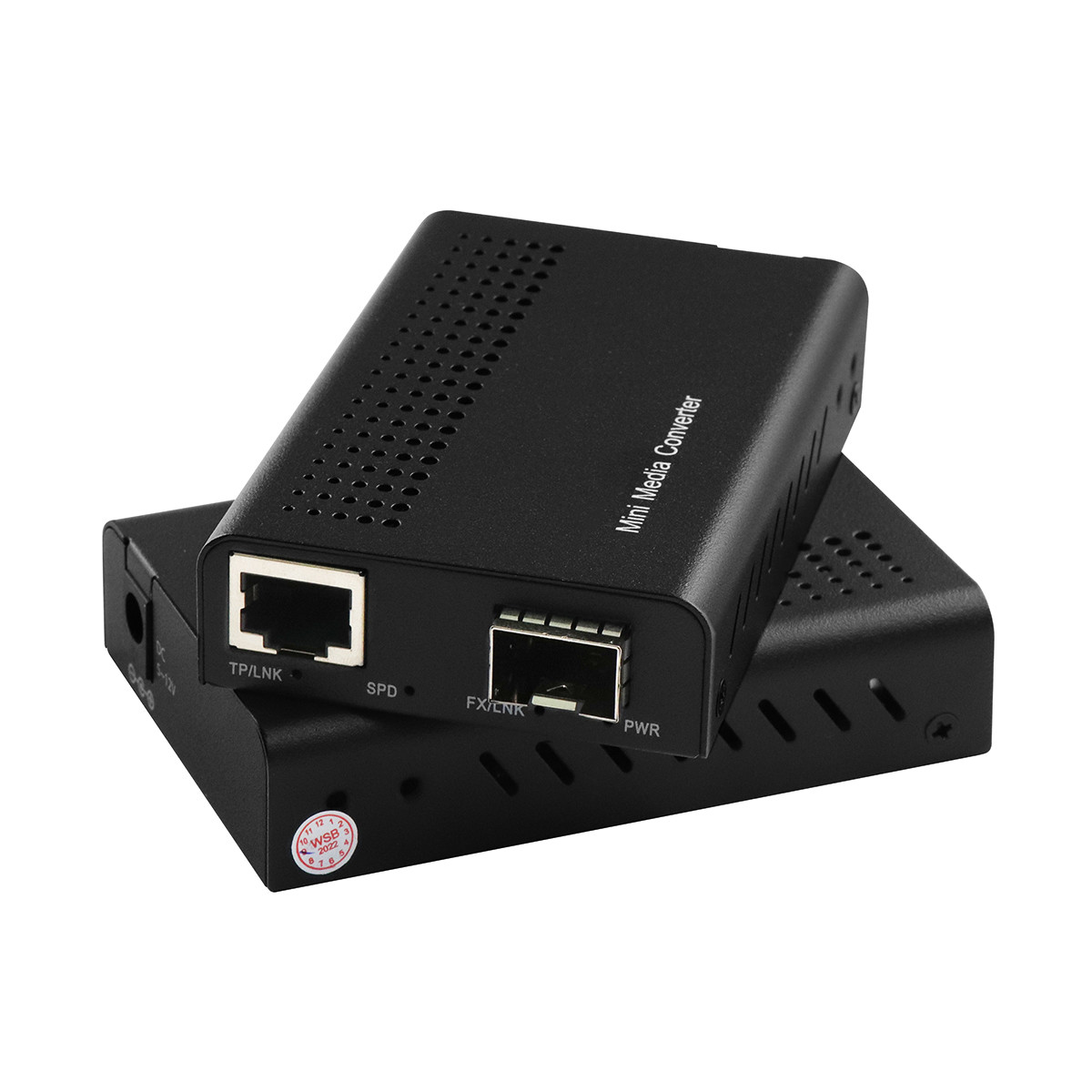

Introduction of 10G media converter
Key Features of unmanaged fiber Ethernet converter
Specification of SFP+ fiber optic converter
| Transmission Speed | 10M/100M/1.25G/2.5G/5G/10Gb/s |
| Protocols | IEEE802.3an(10Gbase-T) ,IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
| Interface Type | Type: RJ45 To/From SFP+ |
| Transmission Distance |
Up to SFP module (Max 40Km) Up to SFP+ module (Max 80Km) Up to SFP module (Max 40Km) Up to XFP module (Max 80Km) 10Gbase-T: 100meters Cat .6a cable |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
| Power Requirement |
Standalone: DC 5-12V (external power) Power consumption: ≤5W |
| MAC Address | 2K |
| Jumbo Frame | 10K |
| Cable Type(Fiber) | Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm |
| Cable Type(Copper) | UTP Cat 5, 5e, 6,6a Cable |
| DIP Switch | LFP/ALS/Media Conversion Mode(see bottom table) |
| LED Indicatiors | TP/LNK,SPD,FX/LNK,PWR |
| Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90%(non-condensing) |
| Housing | Metal, IP30 |
| Dimension | Standalone :60 (W) x 20 (H) x 90 (L) (mm) |
| Weight | 0.12kg |
| Function | Status | Description |
| LFP | Off | LFP Disable |
| On | LFP Enable | |
| ALS | Off | Disable |
| On | Enable | |
| Media Conversion Mode | Off | 1:TP=10G,FX=10G 2:TP=10/100/1000M, FX=1G |
| On | ||
| Off | TP=10/100/1000M/10G, FX=10G | |
| On |
Notes:
1. LFP: Link fault pass through, When enabled, the UTP receiver is passed to the fiber transmitter to make the media converter appear transparent to the connected end devices. It uses link fault passthrough to indicate when far-end fault issues occur. If a fault occurs, the end device indicates a failure for troubleshooting.
2. ALS: automatic laser shutdown is a procedure to automatically shut down the laser when there is no input light and stop emitting optical signals.
3. FX: Optical Fiber Port
4. FX Reset: When enabled, the PoE will restart if there is no data input to the UTP receiver.
Application of fiber media converter
Dimension of 10G commercial optical converter
