Gigabit fully managed gigabit industrial Ethernet switch 8 port
Introduction
IM-WS080GW series is the 10/100/1000 Mbps industrial Ethernet switch
Key Features
Specification
| Product Name | 10/100/1000Mbps Managed Industrial Ethernet Switch (8TP) |
| Model No. | IM-WS080GW |
| Port | 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode: storage and forward System bandwidth:16Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply |
Input voltage: DC12-52V No-load power:5W; Reverse connection: support |
| Environment |
Working Temp:-40°～ 75°C Storage Temp:-40°～ 85°C Working humidity:10%～90%, non-condensing Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |

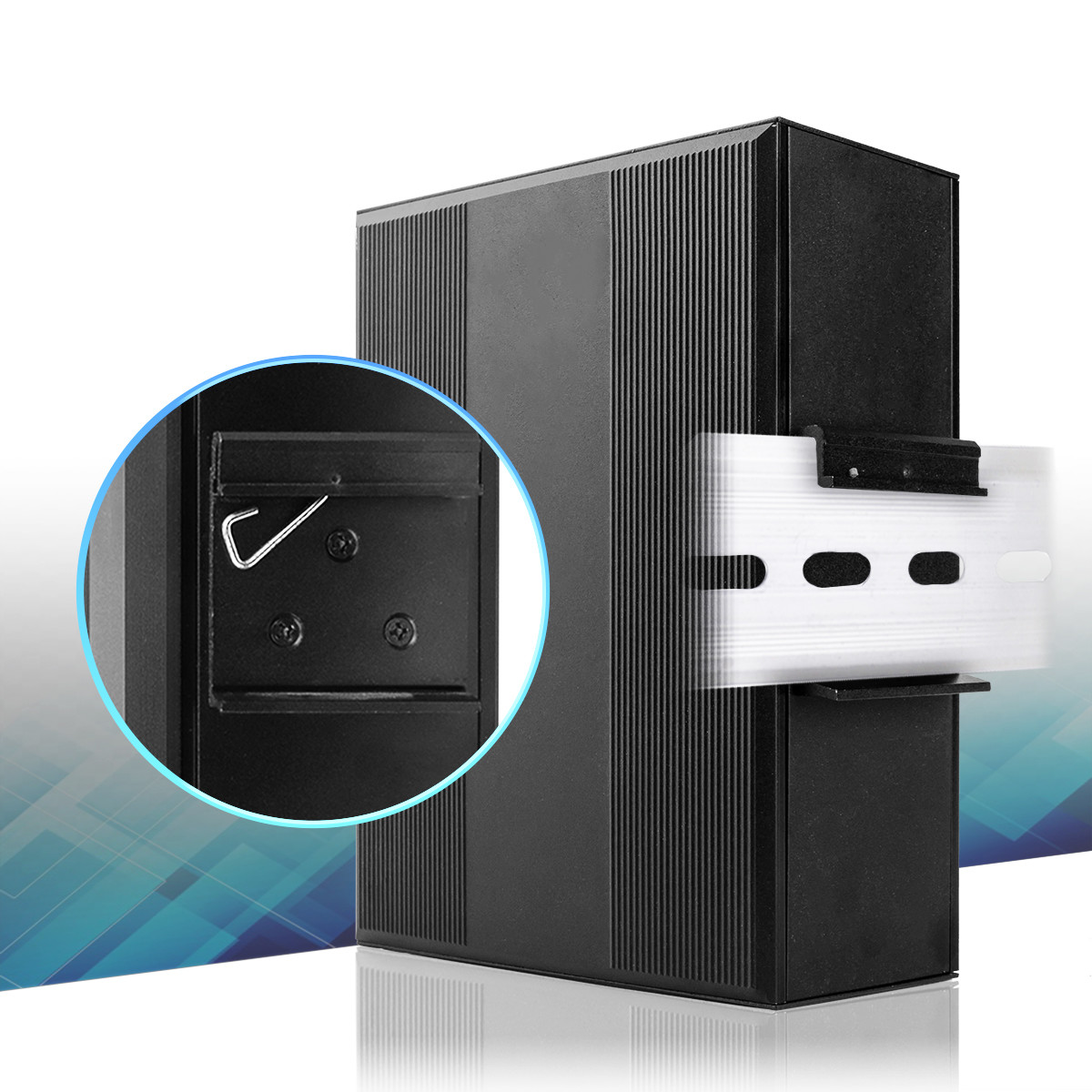

Shell: Corrugated metal shell Safety class: IP40 Dimension:158 x 115 x 60mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 3 years repairing |
PCB Board Photos
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5 Q: Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.
