Home /Products/Fiber Optic Ethernet Media Converter/Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max

Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max

1 Pcs
MOQ
Negotiable
Price
Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gigabit Fiber Optic Ethernet Converter
Fiber: SC Port, Dual Fiber
Ethernet Rate: 10/100/1000Mbps
Distance: 20Km, Single Mode
Power: AC Input 220V
Weight: Net Weight: 0.74kg
Size: 173mm(W) X 128mm(D) X 32mm(H)
Warranty: 1 Year
Highlight:

SMF 100km Media Converter With 2 Ethernet Ports

,

MDIX Media Converter With 2 Ethernet Ports

,

SMF 100km cctv media converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM310-GE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.96KG/pcs
Delivery Time: 3~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per week
Product Description

220V Gigabit Fiber Optic Ethernet Media Converter


Introduction

Olycom Gigabit single mode Ethernet media converter features below

  1. Internal power supply
  2. 10/100/1000Mbps auto-sensing, auto-MDI/MDIX
  3. Utilize fiber optics to extend the physical distance range
  4. MMF 5KM max
  5. SMF 100km max
  6. Full- positioned LEDs to indicate power and network status


Key Features


  • 10K super data packet transmission
  • Full duplex-flow control, Half duplex-back pressure
  • Link fault pass through (LFPT)
  • Support AVB


Specification


Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
IEE802.3z 1000BASE- SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az
10/100/1000BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
1000BASE-FX

50/125um fiber cable (1km), 62.5/125um multimode fiber cable (0.5km)

9/125um singlemode fiber cable (20/40/60/80/100/120km)

Conversion Mode
Delay Time

Store-and-Forward < 10us

straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Dimensions 173mm(W) x 128mm(D) x 32mm(H)
Weight Net weight : 0.74kg, Gross weight : 0.96kg
Input Voltage AC100 ~ 240V / 50-60HZ



Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 4K
Buffer Size 1.75M
Operating Temperature 0℃~50℃
Storage Temperature -40℃~70℃
Storage Humidity 5%~90% non-condescending


Ordering Details


OM310-GE/SC-SX 10/100/1000M, Standalone, dual fiber, multimode, SC, 0.5km, internal power supply
OM310-GE/SC-25 10/100/1000M, Standalone, dual fiber, single mode, SC, 25km, internal power supply
OM310-GE/SC-40 10/100/1000M, Standalone, dual fiber, single mode, SC, 40km, internal power supply
OM310-GE/SC-60 10/100/1000M, Standalone, dual fiber, single mode, SC, 60km, internal power supply
OM310-GE/SC-80 10/100/1000M, Standalone, dual fiber, single mode, SC, 80km, internal power supply
OM310-GE/SC-100 10/100/1000M, Standalone, dual fiber, single mode, SC, 100km, internal power supply
OM310-GE/SC-120 10/100/1000M, Standalone, dual fiber, single mode, SC, 120km, internal power supply


Application

Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max 0

  1. Schools, offices, Cyber bars
  2. FTTX Projects
  3. Telecommunication networks



FAQ



Are you a manufacturer?

Yes, we have our production line and R&D team.

Please visit us via below VR link to see our office and production area.

https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html



What is the leadtime if I order?

After receiving the payment, we start production.

If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.

If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.



Do you accept sample order?

Yes. Sample order to check our services and quality.



Can I have any discounts?

Discounts will be given to repeat orders, regular clients and discount products.


Product Images

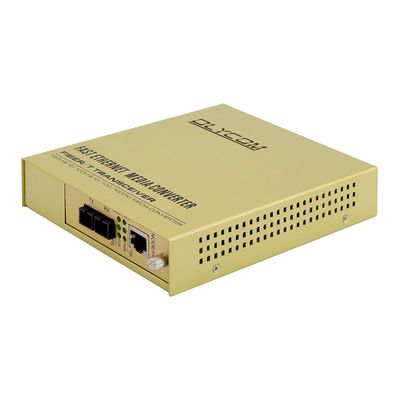

Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max 1

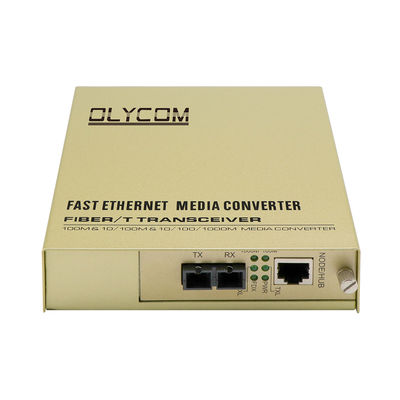

Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max 2

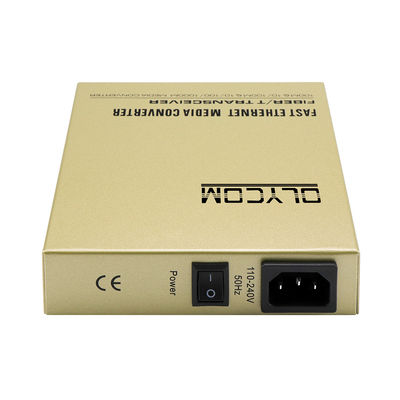

Gigabit Unmanaged Media Converter AC Input 2-Core Singlemode SC Port 100KM Max 3
