AHD CVI TVI Fiber Optical Video Extender
Introduction

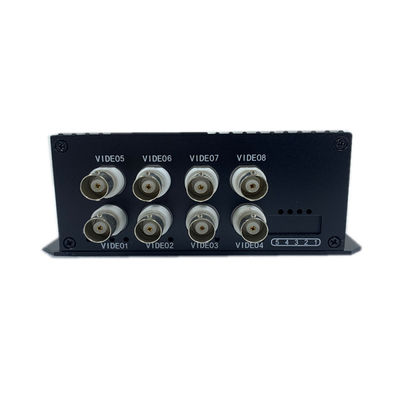

Olycom OM615-8V↑WT/R AHD/TVI/CVI optical video transmitter and receiver will help you
720P, 960P, 1080P videos, it is auto-adaptive
achieve high-definition video transmission, without delay and compression, with high reliability
Data, contact closure, audio, phont and Ethernet funtions
Key Features
Parameters
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 179mm ×130.5mm ×50mm |
| Weight | 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight) |
| Video | |
| Channel Quantity | 8ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
Application
Company Profile
We manufacture and market fiber optic connectivity devices.
We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
We are a 20-year-old manufacturer with production lines and basically provide
2 4 6 8 10 12 16 port din-rail gigabit industrial L2 L3 managed switch
Normal POE fiber optic Ethernet media converter
14 slots 16 slots media converter chassis rack
AHD TVI CVI Analog video to fiber converter
Customized data video Ethernet phone audio contact closure over fiber optic extender converter SFP copper fiber transceiver
Serial to fiber optic converter
FAQ
1. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
Product Photos
