10/100/1000BASE-T RJ45 SFP Module Transceiver 100m Over Cat5 UTP Cable Hot Pluggable
1Pcs
MOQ
Negotiable
Price
10/100/1000BASE-T RJ45 SFP Module Transceiver 100m Over Cat5 UTP Cable Hot Pluggable
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OST01
High Light:

SFP Module Transceiver 100m

,

Cat5 SFP Module Transceiver

,

sfp rj45 transceiver 100m

Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.2KG/pcs
Delivery Time: 3~7 working days
Payment Terms: T/T, Paypal
Supply Ability: 4000Pcs per week
Specifications
Product Name: Gigabit Rj45 SFP Transceiver
Distance: 100m
Rate: 1.25Gb/s
Operating Temp: -40°C To +85°C
Feature: Hot-pluggable
Application: 1.25Gb/s Bi-directional Data Links
Product Description

10/100/1000BASE-T RJ45 SFP Copper Transceiver 100m Over Cat-5 UTP Cable Hot Pluggable



Product Overview



  1. OST01 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module.
  2. Compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab,
  3. Supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable
  4. The OST01 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals.
  5. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The OST01 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol.
  6. The physical IC can also be accessed via 2-wire serial bus at address ACh.



Features



  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Extended case temperature range (-40°C to +85°C )
  • Fully metallic enclosure for low EMI
  • Low power dissipation
  • Compact RJ-45 connector assembly
  • Detailed product information in EEPROM
  • +3.3V single power supply
  • Access to physical layer IC via 2-wire serial bus
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • Compliant with SFP MSA
  • Compliant with IEEE Std 802.3TM-2002
  • Compliant with FCC 47 CFR Part 15, Class B



Applications



  1. 1.25 Gigabit Ethernet over Cat 5 cable
  2. Switch/Router to Switch/Router Link
  3. High speed I/O for file severs



Ordering



Part No. Data Rate(Mbps) Reach(km) Temperature
OST01 10/100/1000Mbps, with SGMII interface, enable the auto-negotiation default, support Rx_LOS as link indication function, 0.1 -40℃~85℃
OST01N 10/100/1000Mbps, with SGMII interface, enable the auto-negotiation default, does not have a link indication feature (RX_LOS is internally grounded) 0.1 -40℃~85℃



















Parameters



Pin Signal name Description MSA Notes
1 VEET Transmitter ground (common with receiver ground)
2 TFAULT Transmitter Fault. Not supported Note 1
3 TDIS Transmitter Disable. PHY disabled on high or open Note 2
4 MOD_DEF(2) Module Definition 2. Data line for Serial ID. Note 3
5 MOD_DEF(1) Module Definition 1. Clock line for Serial ID. Note 3
6 MOD_DEF(0) Module Definition 0. Grounded within the module. Note 3
7 Rate Select No connection required
8 LOS Loss of Signal - High Indicates Loss of Signal
9 VEER Receiver Ground (common with transmitter ground)
10 VEER Receiver Ground (common with transmitter ground)
11 VEER Receiver Ground(common with transmitter ground)
12 RD- Receiver Inverted DATA out. AC Coupled Note 5
13 RD+ Receiver Non-inverted DATA out. AC Coupled Note 5
14 VEER Receiver Ground (common with transmitter ground)
15 VCCR Receiver Power Supply Note 6
16 VCCT Transmitter Power Supply Note 6
17 VEET Transmitter Ground (Common with Receiver Ground)
18 TD+ Transmitter Non-Inverted DATA in. AC Coupled. Note 7
19 TD- Transmitter Inverted DATA in. AC Coupled. Note 7
20 VEET Transmitter Ground(common with receiver ground)





















































Product Photos

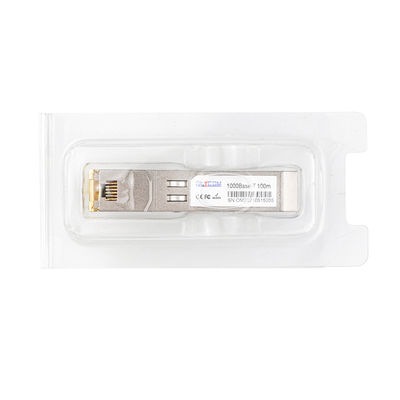

10/100/1000BASE-T RJ45 SFP Module Transceiver 100m Over Cat5 UTP Cable Hot Pluggable 0

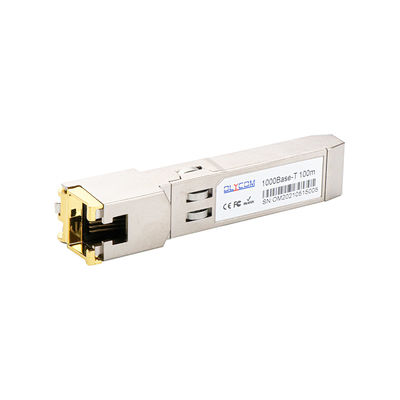

10/100/1000BASE-T RJ45 SFP Module Transceiver 100m Over Cat5 UTP Cable Hot Pluggable 1

10/100/1000BASE-T RJ45 SFP Module Transceiver 100m Over Cat5 UTP Cable Hot Pluggable 2
