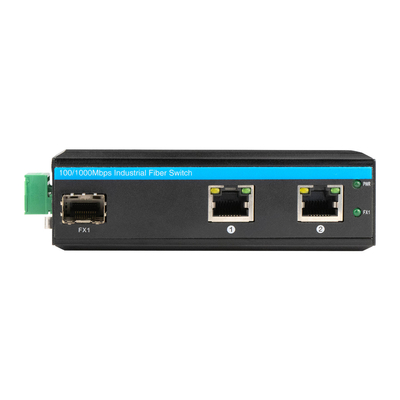

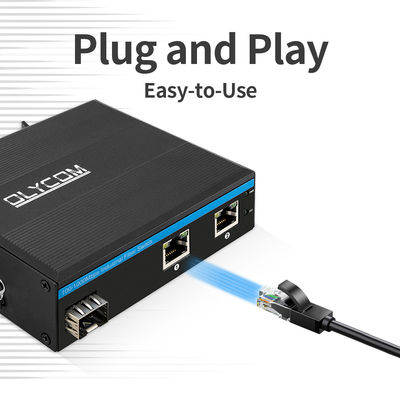

Industrial Compact Ethernet 4 Port Gigabit unmanaged switch
Key Features of industrial switch 24V
Port: 1 Fiber to 2 UTP
Speed: 2 x 10/100/1000Mbps auto-sensing RJ45 ports, support Auto MDI/MDIX
Optical: 1 x 100/1000Mbps SFP fiber port, it is fine to choose 1*9 fixed module
Certification: comply with FCC and CE standards
Mounting method: din rail, wall or desktop use
Voltage input: DC12V~DC52V
Specification of hardened network switch
| Product Name |
10/100/1000Mbps Industrial Fiber Switch (1F+2TP) |
| Port |
1 x 1000Mpbs SFP port
SM:1310nm/1550nm,20Km; 1490nm/1550nm,40~120Km
MM:1310nm, 2Km; 850nm, 500-meter
2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage:DC12-52V
No-load power: 5W
Reverse connection:support
|
| Environment |

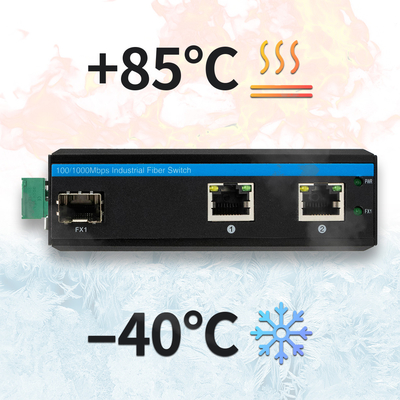

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell:Corrugated metal shell
Safety class:IP40
Dimension: 114 x 93 x 35mm
Mounting method:Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
Application of mini rugged switch
Our Advantages
- Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
- Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.
- Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
- In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
1 Q: Do you accept sample order?
A: Yes. Sample order to check our services and quality.
2 Q:Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.
3 Q:Tell me something about your packing.
A: It is neutral packing. If you have your own packing box, we support it.
Shipping&Packing
We deliver goods by Express like DHL, UPS or FedEx.
It takes around 2~4 working days to deliver an order by DHL, UPS or FedEx.
The standard packing usually contains a main device, a warranty card and a user manual.
Packing box dimension for 1pc: 23*16.5*5.8cm
40pcs in a packing box of 67*33*47cm dimension.
