AC input 3G-SDI video Ethernet Bidi half-duplex RS485 RS422 data over fiber converter
Robust metal case
Low optical link loss–max 30dB
Lightning-proof solution
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
High quantification level of 8 BIT
Hot plug-and-play with switch power supply
Available in standalone and cabinet systems
|
Optical |
|
|
Wavelength |
1310nm/1550nm |
|
Fiber Type and Distance |
multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km |
|
Transmitting Power |
-5dBm to -10dBm |
|
Receiving Sensitivity |
-26dBm to -30dBm |
|
Return Loss |
> 14dB |
|
Jitter |
< 0.2UI |
|
Interface |
SC |
|
Video |
|
|
Signal type |
HD-SDI, SDI, and 3G-SDI digital video signals |
|
Gain |
Unity |
|
Resolution |
8 or 10 bits, automatic |
|
Data rates |
270 Mbps, 1.485 Gbps, 2.970 Gbps |
|
Operation standards |
SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120 |
|
Auto data rate lock |
Yes |
|
Data |
|
|
Data Protocol |
RS232, RS485, Manchester, BIPHASE data |
|
Bandwidth |
0~300kbps |
|
Error rate |
10-9 |
|
Interface |
Phoenix terminal |
|
Audio |
|
|
Impedance / Voltage |
600ohm(unbalanced) / 2.0Vp-p |
|
Frequency Response |
10~20kHz |
|
Total Harmonic Distortion |
<0.05% |
|
Differential Phase |
< ±1 |
|
S/N ratio |
>95dB(weighting) |
|
Interface |
Phoenix terminal |
|
Sample Rate |
48k Hz |
|
Resolution |
16 bits |
|
Contact Closure |
|
|
Signal Input |
Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button |
|
Signal Output |
Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output |
|
Interface |
Phoenix terminal |
|
Ethernet |
|
|
Work Mode |
Full duplex / half duplex, autosensing |
|
Network Speed |
10/100Mbps, autosensing |
|
Interface |
RJ45 |
|
Electrical. Environmental. Mechanical |
|
|
Operating Voltage |
Rack: dual 11~240V AC |
|
Operating Temperature |
-35℃～+75℃ |
|
Storage Temperature |
-45℃～+85℃ |
|
Humidity |
0~95% non-condensing |
Application
Express way security protection and toll station system
HD CCTV
Television Studio
City traffic monitoring system
Live Broadcast
Ordering Details
Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions (video, audio, data, telephone, alarm, and Ethernet).
The flexible configurations are open to customization and ODM to cater various needs.
| OM610-1V↑2D↓2A↑1E WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-1V↑2D↓2A↑2K↑WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
| OM610-2P1EWT/R | 2ch Telephone + 1ch 10/100M Ethernet |
| OM610-2V↑1D↓1P1E WT/R | 2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-2V↑2D↓2A↑1E WT/R | 2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-4EWT/R | 4ch 10/100M Ethernet |
| OM610-4P2D↓WT/R | 4ch Telephone+ 2ch RS485 data Rx |
| OM610-4V↑1D↓4E WT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet |
| OM610-4V↑1D↓4PWT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch Telephone |
| OM610-4V↑12D↓WT/R | 4ch video Tx + 12ch RS485 data Rx |

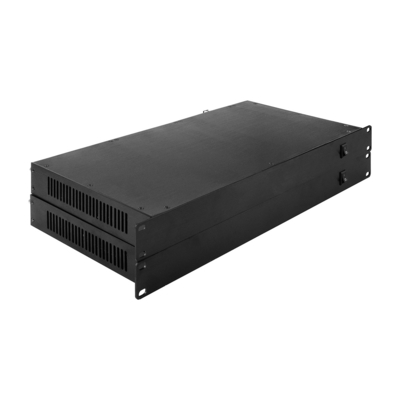

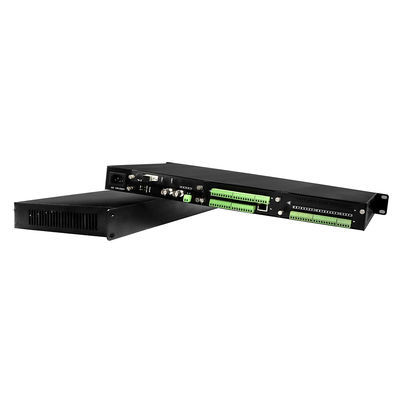

More Product Images
