Single Core Single Mode Fiber Optic Media Converter SC Port 1310/1550nm AC Input
Introduction
Olycom Gigabit Ethernet media converter features
Key Features
Link fault pass through (LFPT)
Support AVB
Specification
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 9/125um singlemode fiber cable (20/40/60/80/100/120km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 173mm(W) x 128mm(D) x 32mm(H) |
| Weight | Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage | AC100 ~ 240V / 50-60HZ |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 4K |
| Buffer Size | 1.75M |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Ordering Information
| OM511/2-GE/SC-20 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 20km, internal power supply |
| OM511/2-GE/SC-40 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 40km, internal power supply |
| OM511/2-GE/SC-60 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 60km, internal power supply |
| OM511/2-GE/SC-80 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 80km, internal power supply |
| OM511/2-GE/SC-100 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 100km, internal power supply |
| OM511/2-GE/SC-120 | 10/100/1000M, Standalone, Single fiber, Single mode, SC, 120km, internal power supply |
Above listed are most frequently ordered items.

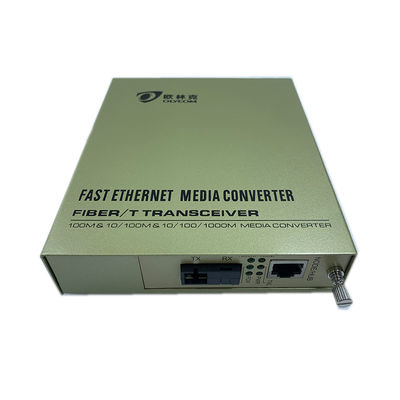

Product Photos
