SFP Media Converter 10 100M Ethernet To Fiber For SM MM Modules AC Input 220V
Product Overview
Olycom OM230-FE series Megabit Ethernet SFP fiber media converters are for fiber to copper Ethernet conversion applications.
The SFP slot is good for different transmission rates, working distances, and fiber network types by changing the the hot-plug-and-play SFPs.
Key Features
100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
Techinical Parameters
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| SFP | SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | LC (duplex), LC/SC(simplex) |
| Wavelength | 1310/1550nm |
| Dimensions | 173mm(W) x 128mm(D) x 32mm(H) |
| Weight | Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage | AC100 ~ 240V / 50-60HZ |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Ordering Options
Below listed are most frequently ordered items. Please contact us for other configurations
| OM230-FE/XX-XX | 10/100M, Standalone, fiber media converter, with SFP slot but without SFP, internal power supply |
| OM230-FE/LC-A2 | 10/100M, Standalone, fiber media converter, with SFP , multi mode, LC, 2km, internal power supply |
| OM230-FE/LC-20 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 20km, internal power supply |
| OM230-FE/LC-40 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 40km, internal power supply |
| OM230-FE/LC-60 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 60km, internal power supply |
| OM230-FE/LC-80 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 80km, internal power supply |

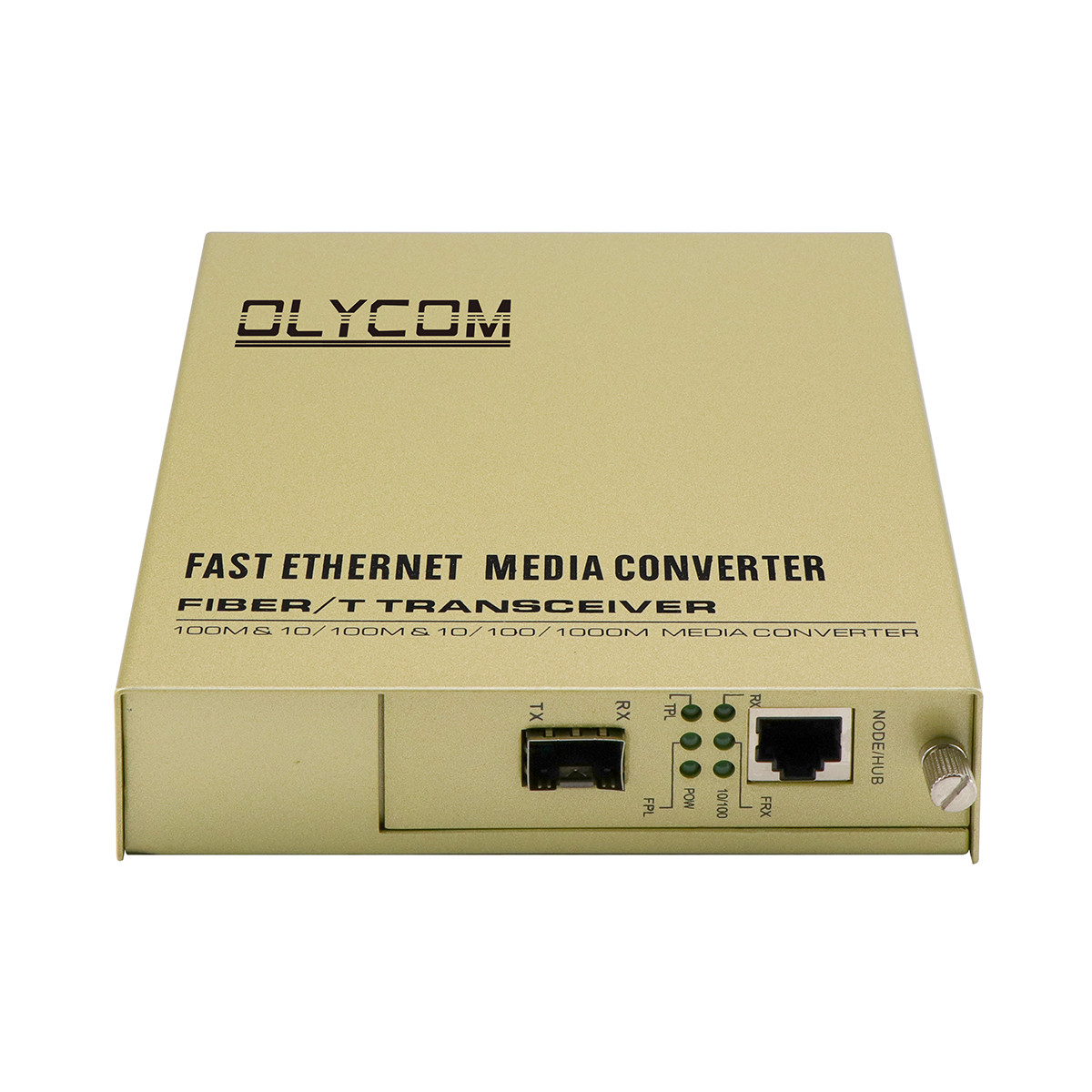

Product Images
