10/100/1000Mbps Din Rail Network Switch 4 Port With Industrial Operating Temperature
Introduction of Network Switch
IM-FS220GE is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Network Switch
Specification of Network Switch
| Product Name | 10/100/1000Mbps Industrial Din Rail Network Switch (2F+2TP) |
| Model No. | IM-FS220GE |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection: support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark , commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1year; 3 years repairing |
Packaging & Delivery of Network Switch
Packaging Details: One product, one user manual are inside one box
Port: Shenzhen
Delivery term: EXW
Lead Time: 3-5 days. It depends on the quantity.
FAQ of Network Switch
Q: What is the warranty time?
A: One year for HD video optical converter, normal switch, fiber media converter, network booster
Three years for industrial fiber switch and SFP transceiver
Lifetime repair service is provided.
Q: Are you the real factory?
A: Yes, we are the real factory with 18 years of history.
Application of Network Switch

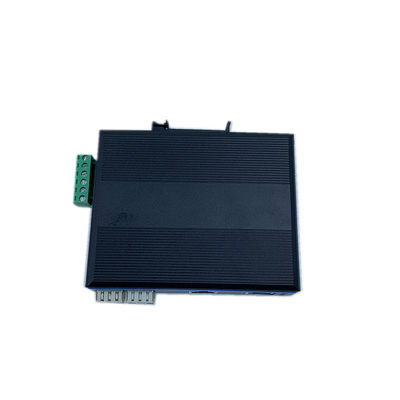

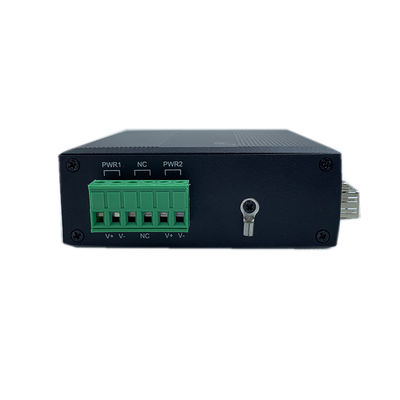

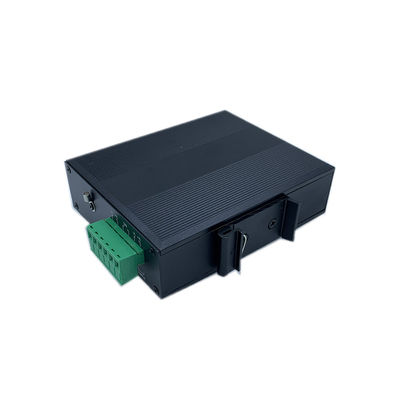

Photo of Network Switch
