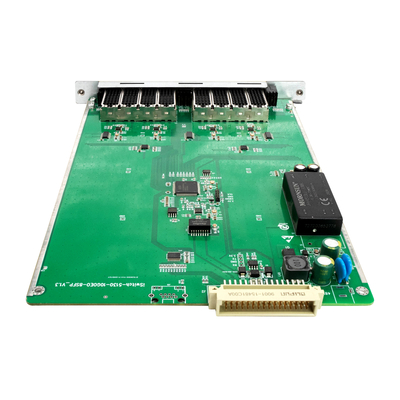

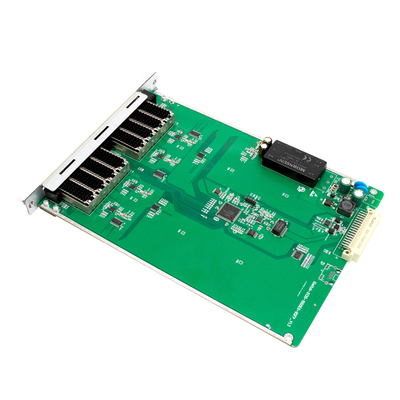

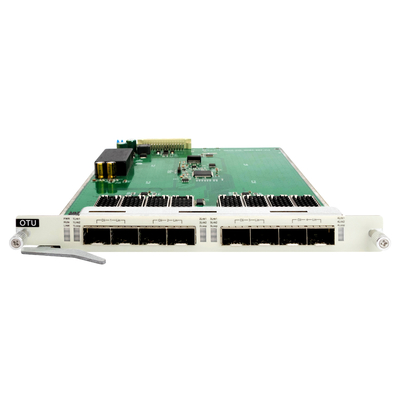

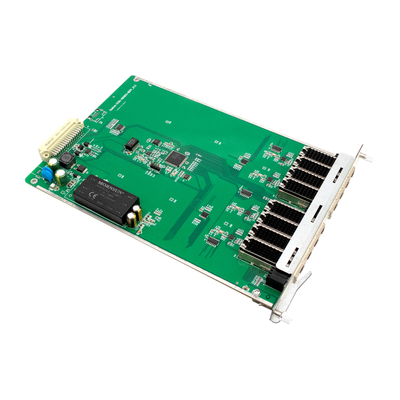

DWDM Transmission 8*SFP+ Multi-Rate OTU Transponder 1/2/4/8/10G Muxponder board
Introduction
10G OTU service card launched by Shenzhen Olycom Technology Co. ,Ltd. supports four types of service access with 42M~11.3G rates.,its main function is to finish the 3R regeneration of any 4-channel
signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.
Diagram
Functional structure
Product Features
1. 3R signal regeneration:
Retransmission
Reshaping
Retiming
2. Multi-rate supports:1Gbps ~ 10Gbps
3.Supports Loopback Test
4. Supports LFP
5.Flexible transmission of various protocols
6. Fibre Channel 1/2/4/8 /10Gbps
CPRI;2/3/4/5/6/7
1G/10G Ethernet
SDH STM-4/16/64
Specification
| Function | Note | |
| Card type | 10G OTU-3R | 10G OTU-2R |
| interface |
|
|
| Line mode | Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. | |
| Relay mode | Support 42M~11.3G wavelength electrical relay | |
| Support service type |
l GE, 10GE l 1/2/4/8/10G FC l STM-16/64 l CPRI-2/3/6/7 |
l FE, GE, 10GE l 1/2/4/8/10G FC l STM-1/4/16/64, OTU1/OTU2/OTU2e l CPRI-1~8, 42M~11.3G Any |
| WDM technology |
l Support CWDM: 18 waves l Support DWDM: C band 50GHz 96 waves |
|
| Occupied slot number | Support OSP3800 series chassis, occupy 1 slot,(0.5U) | |
| Network management function | Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. | |
| Power consumption | 16W (max, including transceiver) | |
| MTBF | ＞100000 hours | |
Advantage:
1. Manufacturing: We are a powerful factory and has been in this industry about 20 years
2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.
3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
4. Small order accepted: Low MOQ accepted. 1pcs are availabel.
5. Insurance: all products 3 years warranty.
