19" 5U OTN/DWDM 100G 200G Optical Transmission Network Solutions
Introduction

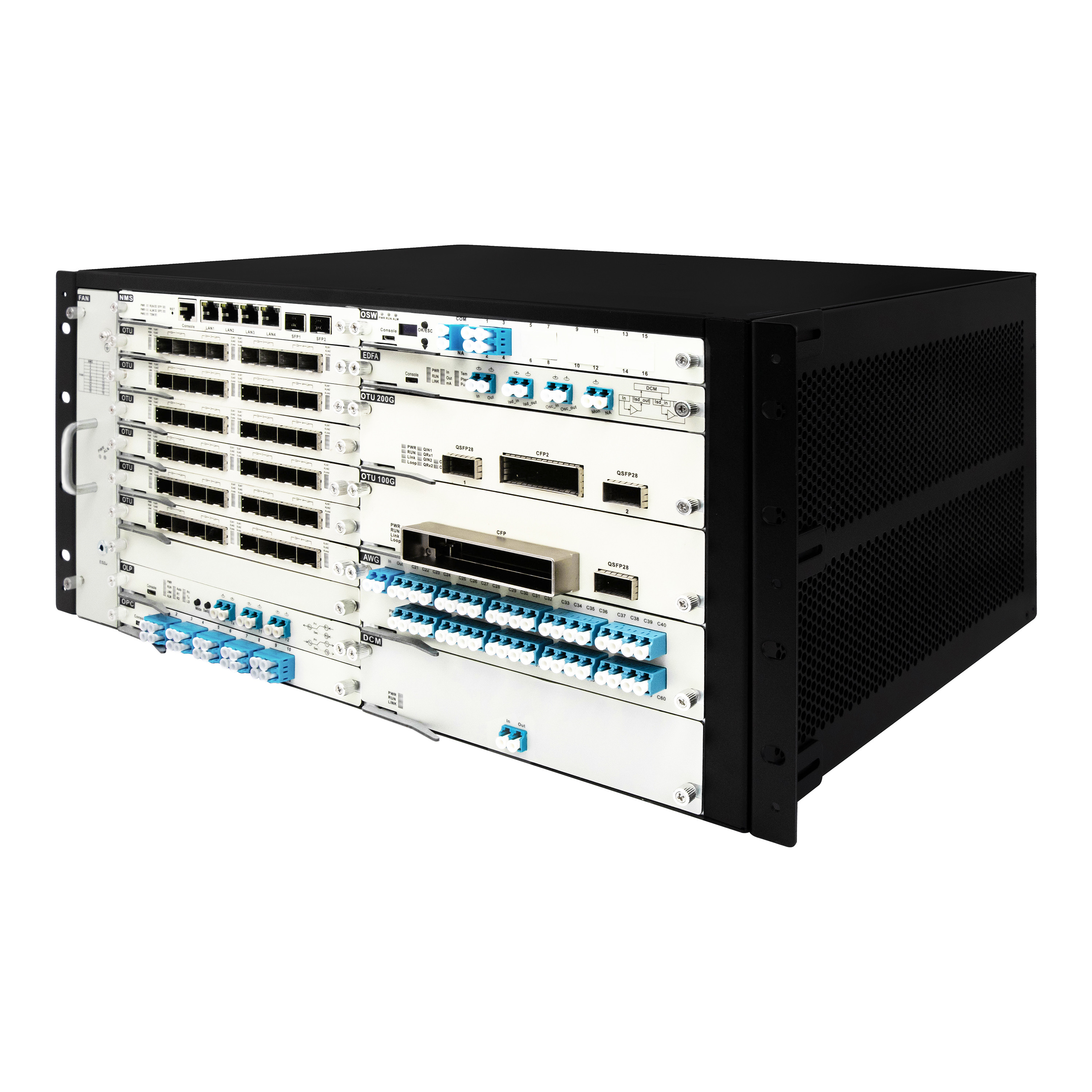

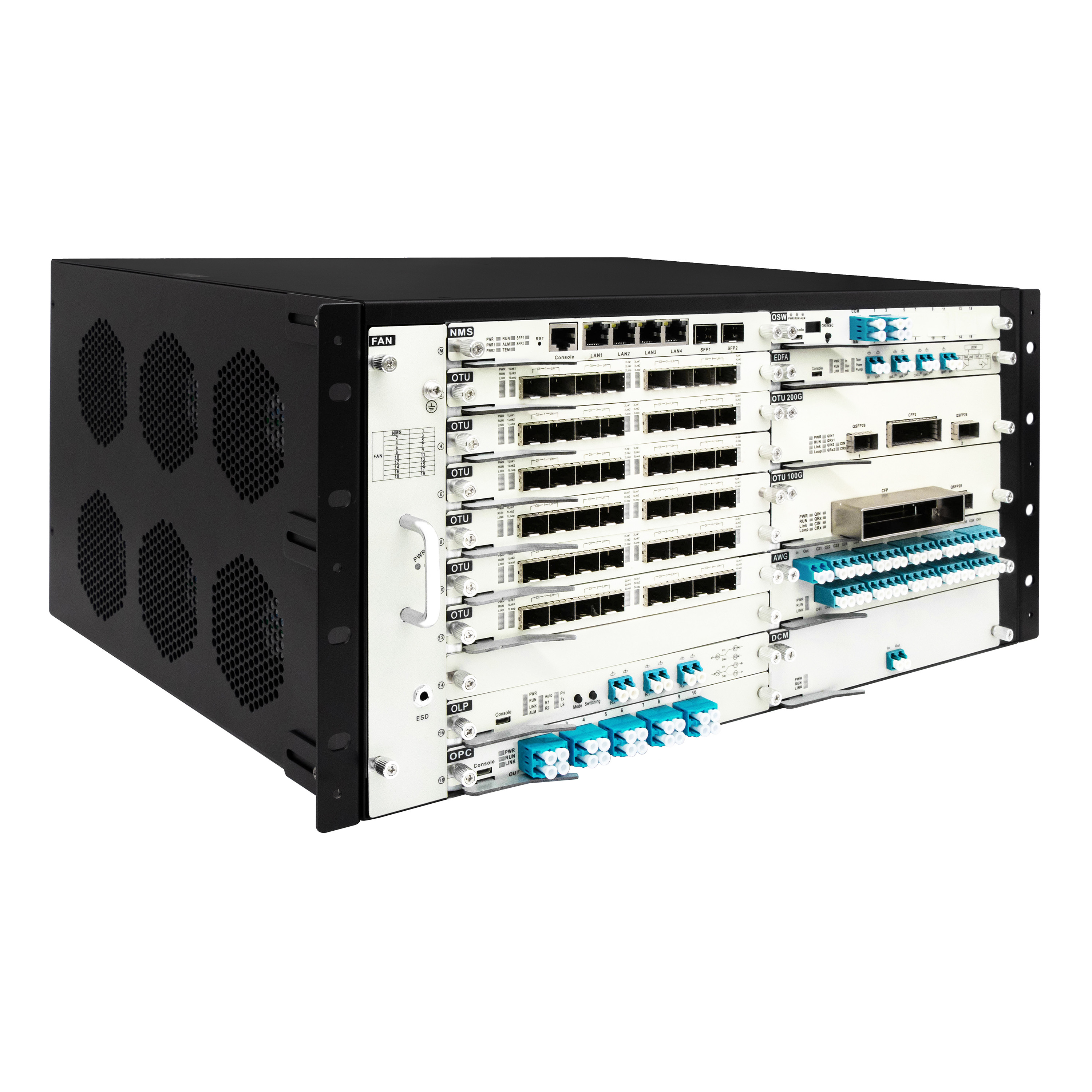

OM6000 is a compact, high-capacity, low-cost OTN optical transmission system which introduced by OLYCOM. It adopts CWDM / DWDM common platform design, supports multi-service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry‘s most cost-effective transmission application platform. Build a large-capacity WDM transmission expansion solution for IDC and ISP operators.
Key Features
Specification
| Transmission Capacity | 96x10Gbps /96x100Gbps |
| Network Management Unit | EMS network management |
| OTU | ● Support 1.25G ~10Gbps,100Gbps ● 1/2/4/8 /10Gbps Fibre Channel ● CPRI 2/3/4/5/6/7 ● 1G/10G Ethernet LAN or WAN PHY ● STM-4/16/64 SONET/SDH |
| MUX/DEMUX | Support 8ch/16ch/40ch/48ch |
| EDFA | EDFA erbium doped fiber amplifier |
| DCM | DCM:G.652/G655 Dispersion compensation fiber module |
| OLP | OLP1 + 1 optical protection |
| Services Card | 191 ( W ) x 253 ( D ) x 20 ( H ) mm |
| 1U 4-slot Chassis | 482.5 ( W ) x 350( D ) x 44.5 ( H ) mm |
| 2U 8-slot Chassis | 482.5 ( W ) x 350( D ) x 89 ( H ) mm |

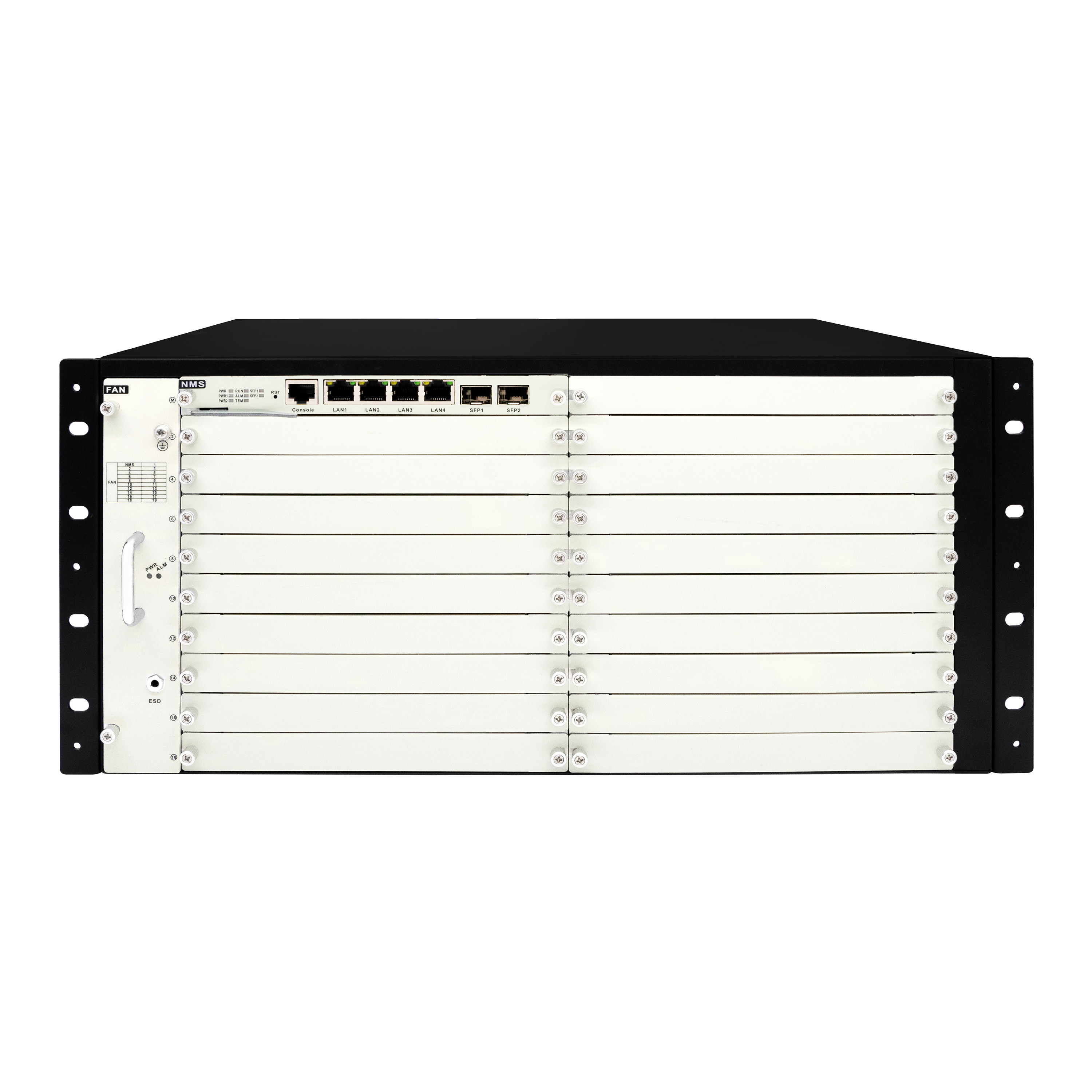

| 5U 20-slot Chassis | 482.5 ( W ) x 350( D ) x 222.5 ( H ) mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Relative Humidity | 5% ~ 95% Non-condensing |
| Power Supply Mode | Dual power supply, AC220V/DC-48V optional |
| Power Consumption | 1U ＜120W, 2U＜200W, 5U＜400W |
Applications
Telecom
Data center
5G Network
Long Haul Network

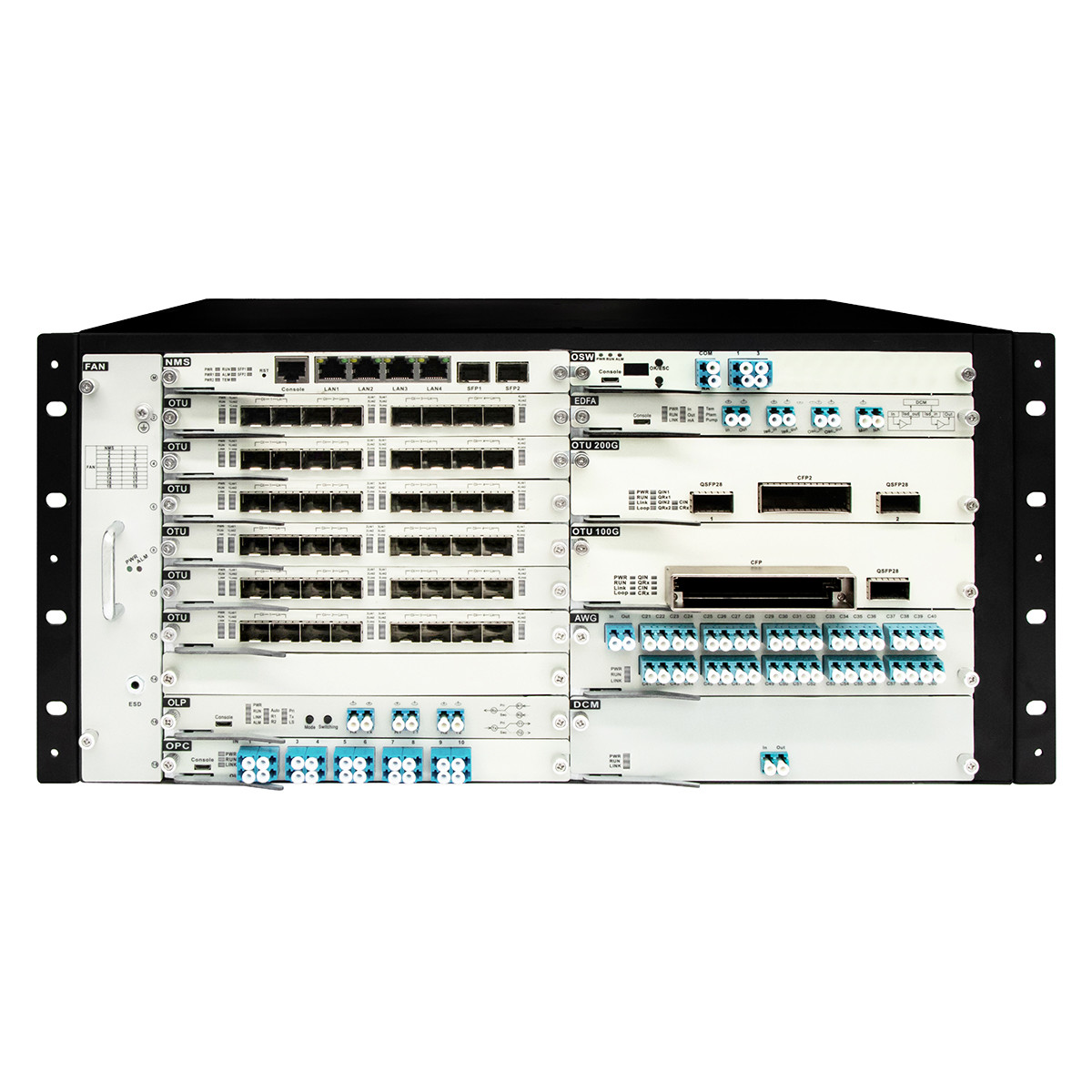

OM6000 include the following cards
| NMS management card | 100G QSFP28 to CFP transponder | 2xQSFP28 to CFP2 200G Muxponder |
| 100G Muxponder: QSFP28 ↔ 4xSFP28 | 40G&100G OEO: 6*QSFP28 | SFP28 25G Quad transponder |
| SFP+ Multi-Rate Quad transponder | Redundant Multi-Rate Dual transponder | EDFA Optical Amplifiers |
| Bidi EDFA Optical Amplifiers | 16ch DWDM MUX/DEMUX | 40ch DWDM MUX/DEMUX(AAWG) |
| OLP Optical Line Protector | DWDM Passive Optical Add/Drop Multiplexers | DCM card |
DWDM transmission solution
DWDM peer-to-peer case
DWDM chain network case
DWDM+OLP optical line protection Case
DWDM Ring network case
DWDM single fiber bidirectional networking case
DWDM ultra long distance solution
