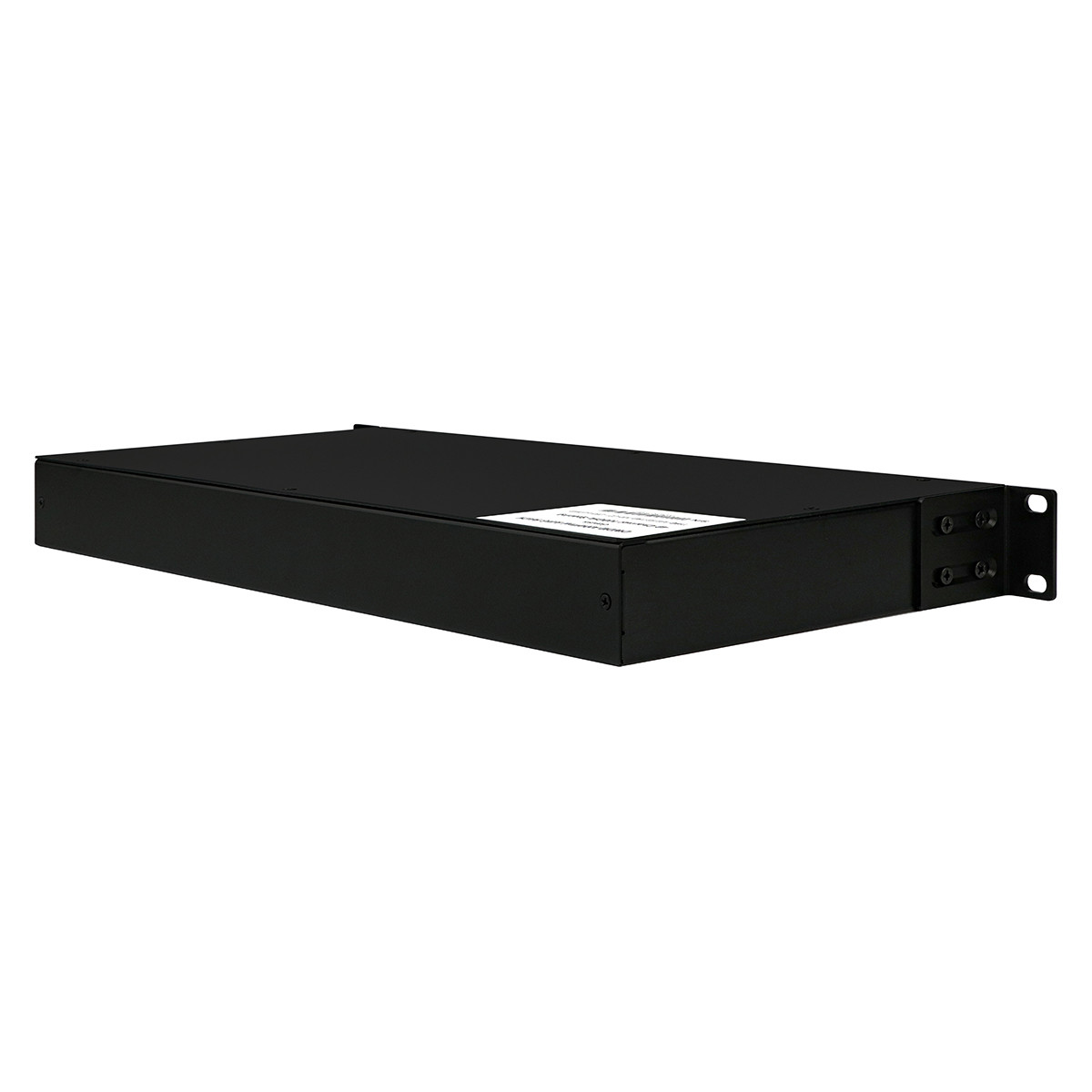

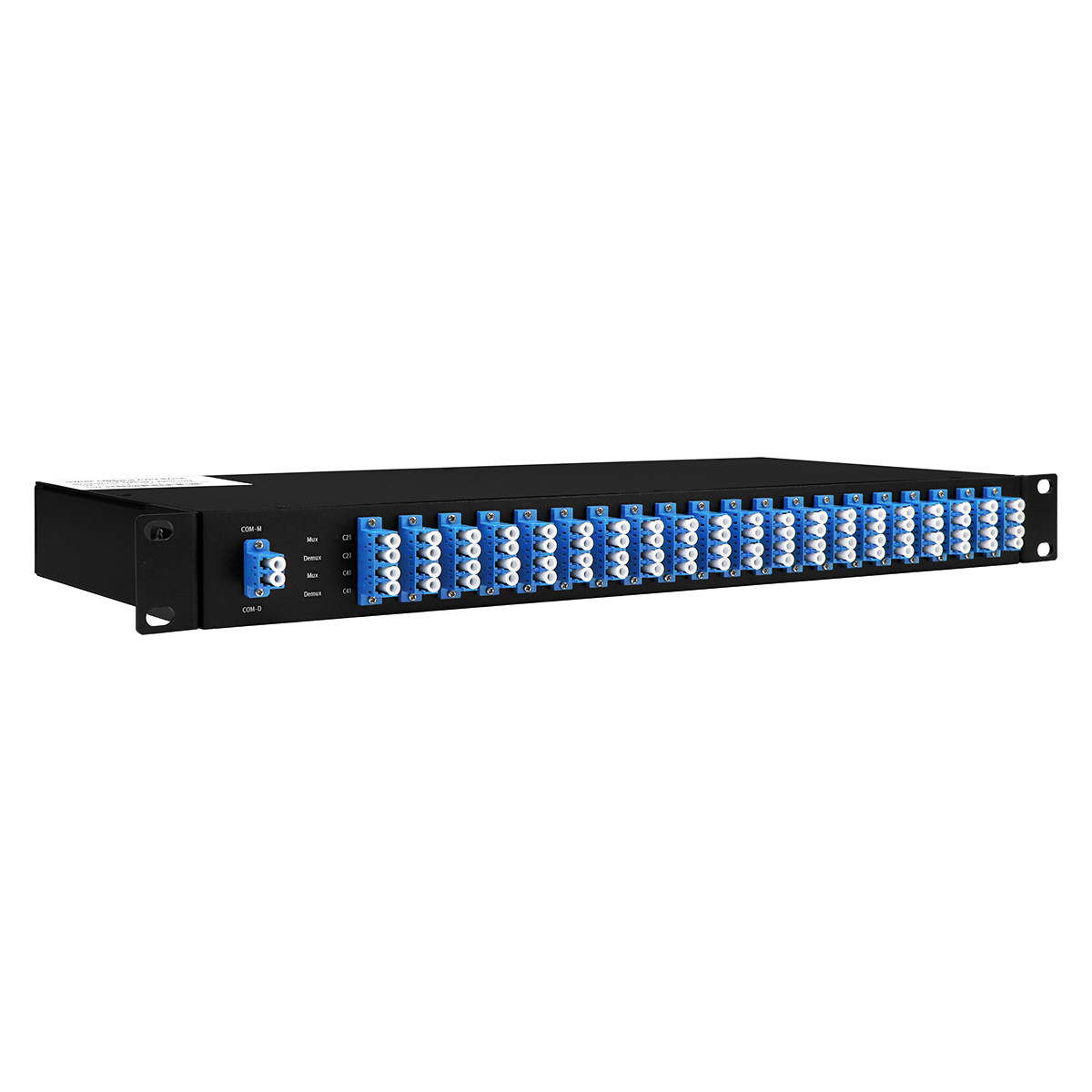

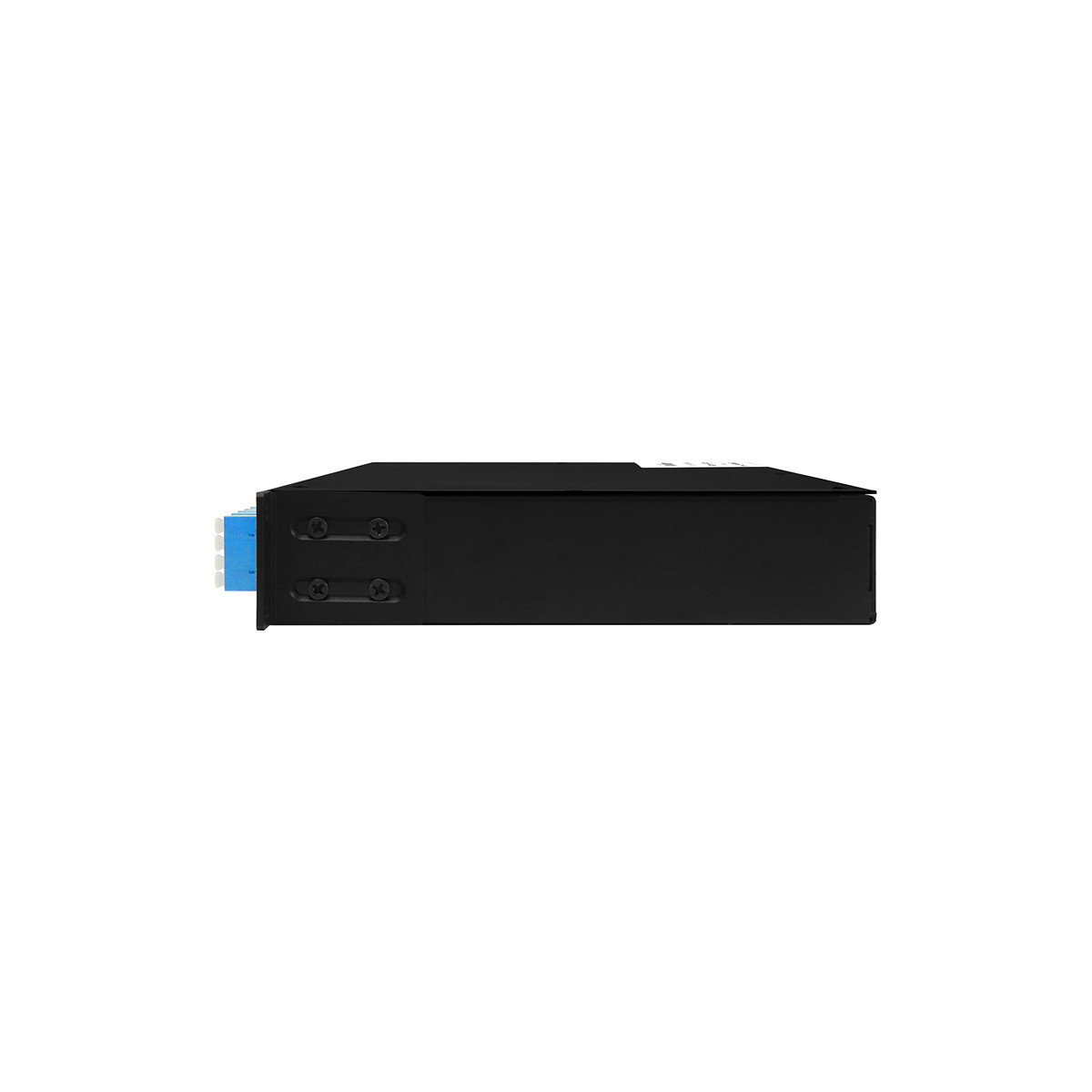

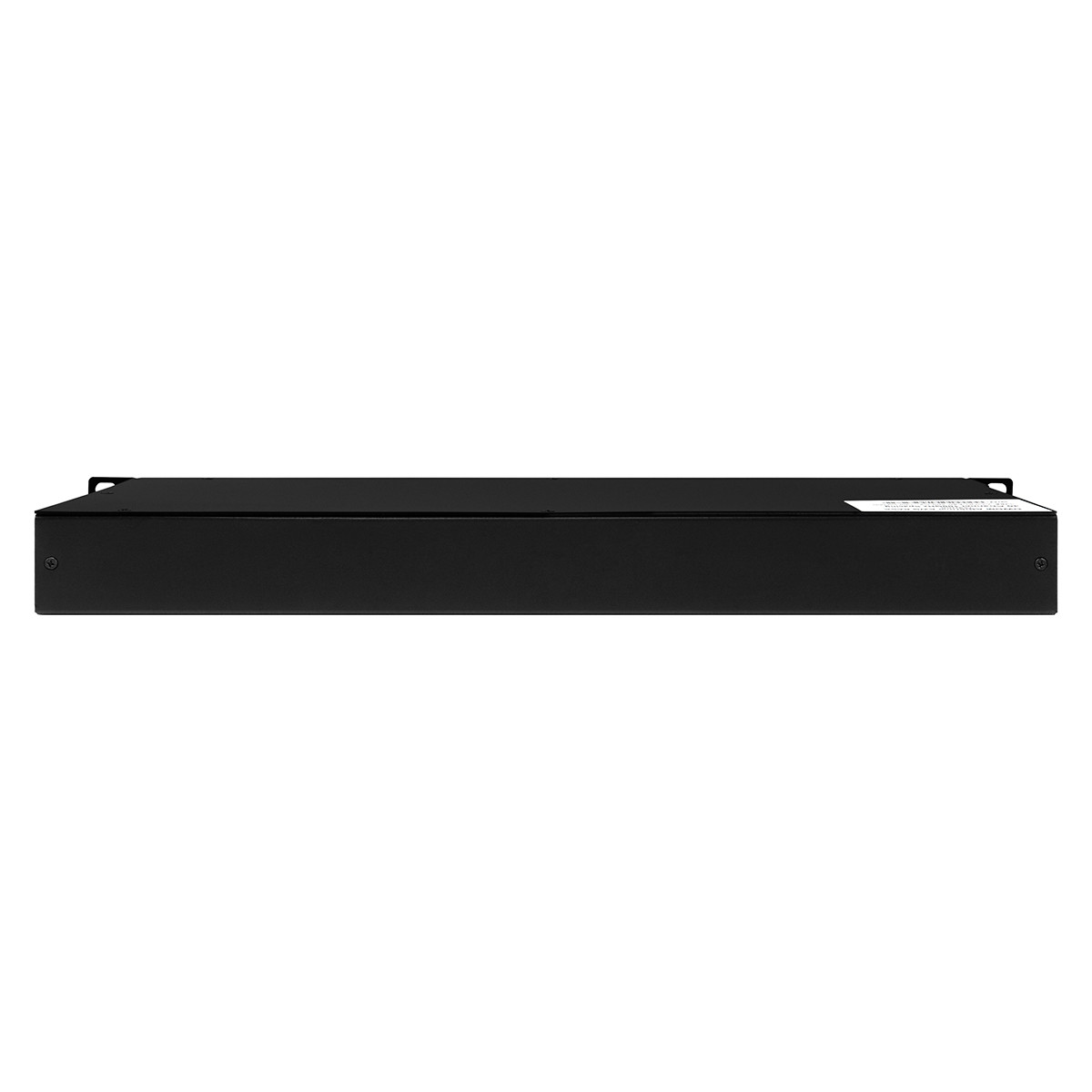

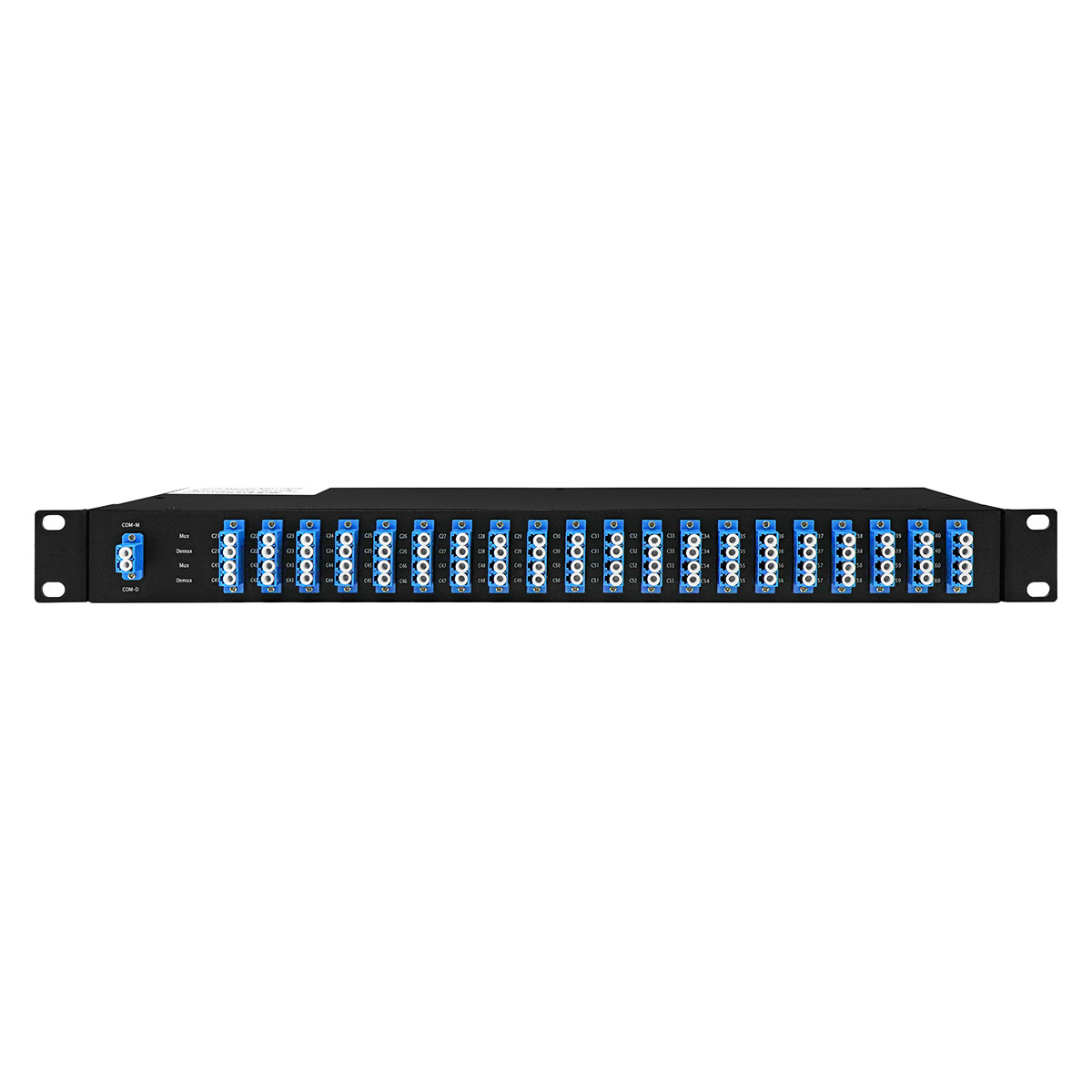

100GHZ 40CH AAWG CWDM/DWDM MUX/DEMUX CH21 ~ CH60 LC UPC Module
Introduction
MUX & DEMUX is a wavelength division multiplexing (WDM) based combiner / demultiplexer board, which multiplexes multiple standard DWDM or CWDM wavelengths on the same optical fiber for transmission. The demultiplexing board is used to demultiplex multiple standard DWDM or CWDM wavelengths transmitted on a single fiber.
Product Features
Low insertion loss broadband transmission high channel isolation High stability and reliability Epoxy-free optical path 19” Rack mounting
Specification
| Product Name | 40ch AWG MUX/DEMUX |
| Channel Wavelength (nm) | 40CH |
| Operating Band | C21 ~ C60 |
| Nominal Channel Spacing (GHz) | 100 |
| Clear Passband (GHz) | ±12.5 |
| Wavelength Accuracy (pm) | ±60 |
| Insertion Loss (dB) | ≤5.5 |
| 1dB Bandwidth (nm) | ≥0.4 |
| 3dB Bandwidth (nm) | ≥0.6 |
| 20dB Bandwidth (nm) | ≤1.2 |
| Insertion Loss Uniformity (dB) | ≤1.2 |
| MON (dB) | ≤23 |
| Ripple (dB) | ≤0.7 |
| Polarization Dependent Loss (dB) | ≤0.7 |
| Adjacent Channel Isolation (dB) | ≥23 |
| Non-adjacent Channel Isolation (dB) | ≥30 |
| Total Crosstalk (dB) | ≥21 |
| Polarization Mode Dispersion(PMD) * (ps) | ≤0.5 |
| Chromatic Dispersion (ps/nm) | ±20 |
| Optical Return Loss* (dB) | ≥40 |
| Fiber Type |
G.652D Compliant Fiber |
| Input Common Fiber Length (mm) | 500±50 |
| Ribbon Fiber Length (mm) | 300±50 |
| Fan-out Fiber Length (mm) | 380±50 |
| Connector Type | LC/UPC |
| Material | AL6061 (Black Anodized) |
| Dimension | 120mm×70mm×10mm |
| The screw space | 110mm×60mm, 4-Φ3.5mm |
| Maximum Continuous Optical Power (mW) | 250 |
| Operating Temperature | -5 ~ +65°C |
| Storage Temperature | -40 ~ +85°C |
| Operating Humidity | 5 ~ +85°C |
Advantage:
1. Manufacturing: We are a powerful factory and has been in this industry about 20 years
2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.
3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
4. Small order accepted: Low MOQ accepted. 1pcs are availabel.
5. Insurance: all products 3 years warranty.
