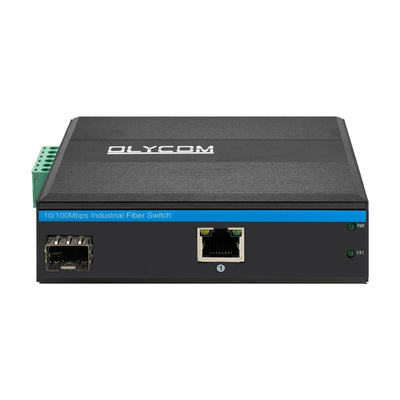

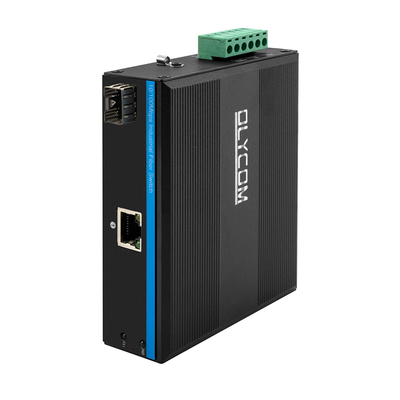

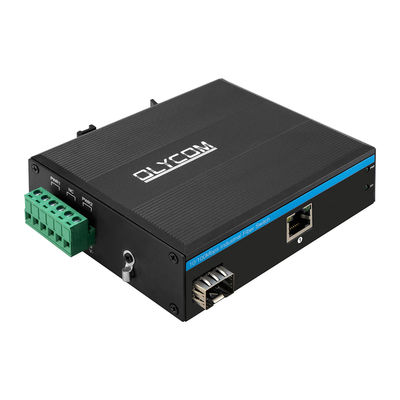

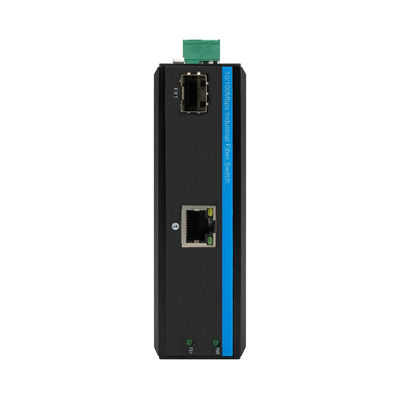

2 port 10/100mpbs fast ethernet industrial fiber media converter with 1RJ45+1SFP
Key Fetaures of industrial media converter
1 x 10/100Mbps Auto-sensing RJ45 ports 1 x 100Mbps SFP fiber port 4 KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism Operating environment temperature:-40 ° ~85 ° c
Specification of 2 port fast ethernet switch
| Product Name | 10/100Mbps Industrial Fiber Media Converter (1TP+1F) |
| Model No. | IM-MC110FE |
| Port |
1 x 100Mpbs port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |

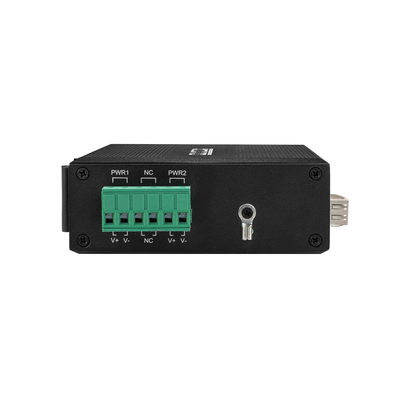

| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection:support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |

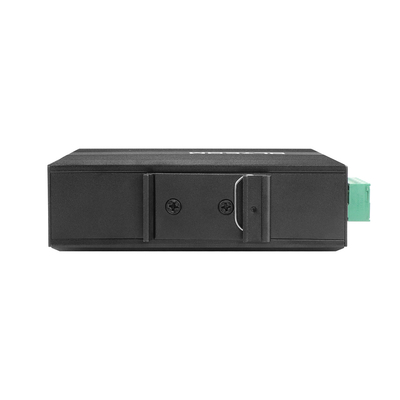

Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 3 years repairing |
Application
Advantage:
1. Manufacturing: We are a powerful factory and has been in this industry about 10 years
2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.
3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
4. Small order accepted: Low MOQ accepted. 1pcs are availabel.
5. Insurance: all products 3 years warranty.
