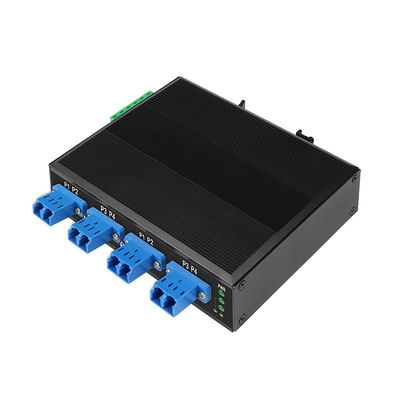

Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V input
Introduction
Specification
| Product Name | Fiber Bypass |
| Power Interface | Standard industrial terminal block. |
| Polarity Protection | Support |
| Optical Fiber Interface | LC |
| Wavelength Range | 850±40/1300±40nm; 1260~1650nm |
| Test Wavelength | 850/1300nm; 1310/1550nm |
| Insert Loss | Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss | MM≥30 dB SM≥50 dB |
| Channel Crosstalk | MM≥35 dB SM≥55 dB |
| Polarization Loss | ≤0.05 dB |
| Wavelength Loss | ≤0.05 dB |
| Temperature Loss | ≤0.05 dB |
| Repeatability | ≤0.05 dB |
| Operating voltage | 3.3V-5V |
| Service life | ≥100000000 times |
| Switching time | ≤10 ms |
| Transmission optical power | ≤500 mw |
| Environment |
Working temperature:-20°～ 70°C Storage temperature:-40°～ 85°C |
Application
Production Steps:
| Welding: Weld the necessary components |
| Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards. |
| Assembling: Builds up components of a product, like panels, screws, PCB boards. |
| Testing: To make sure the product is basically working fine after assembling |
| Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours. |
| Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure. |
| QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label. |
