4 Port PoE Gigabit Unmanaged Ethernet Switch Din Rail 12V 24V

4 Port PoE Gigabit Unmanaged Ethernet Switch Din Rail 12V 24V
Features Gallery Product Description Request A Quote
Product Name: 4 Port 10/100/1000 Ethernet Switch
Function: Unmanaged, Without POE
Mounting: Wall, Din Rail
Weight: 350g
Working Temperature: -40 ℃ To + 85 ℃
Warranty: 3 Years
High Light:

IP40 Protection Unmanaged Ethernet Switch


12V Unmanaged Ethernet Switch


Auto MDI Industrial Network Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE ISO9001 RoHS FCC
Model Number: IM-FS220GE V1
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.45kg gross weight
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

Industrial Compact Ethernet 4 Port Gigabit unmanaged switch


Key Features of fiber switch 4 port sfp


  • 2 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
  • 2 x 1000Mbps SFP fiber ports
  • 4KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • Meet IP40 protection degree and EMC industrial grade requirements

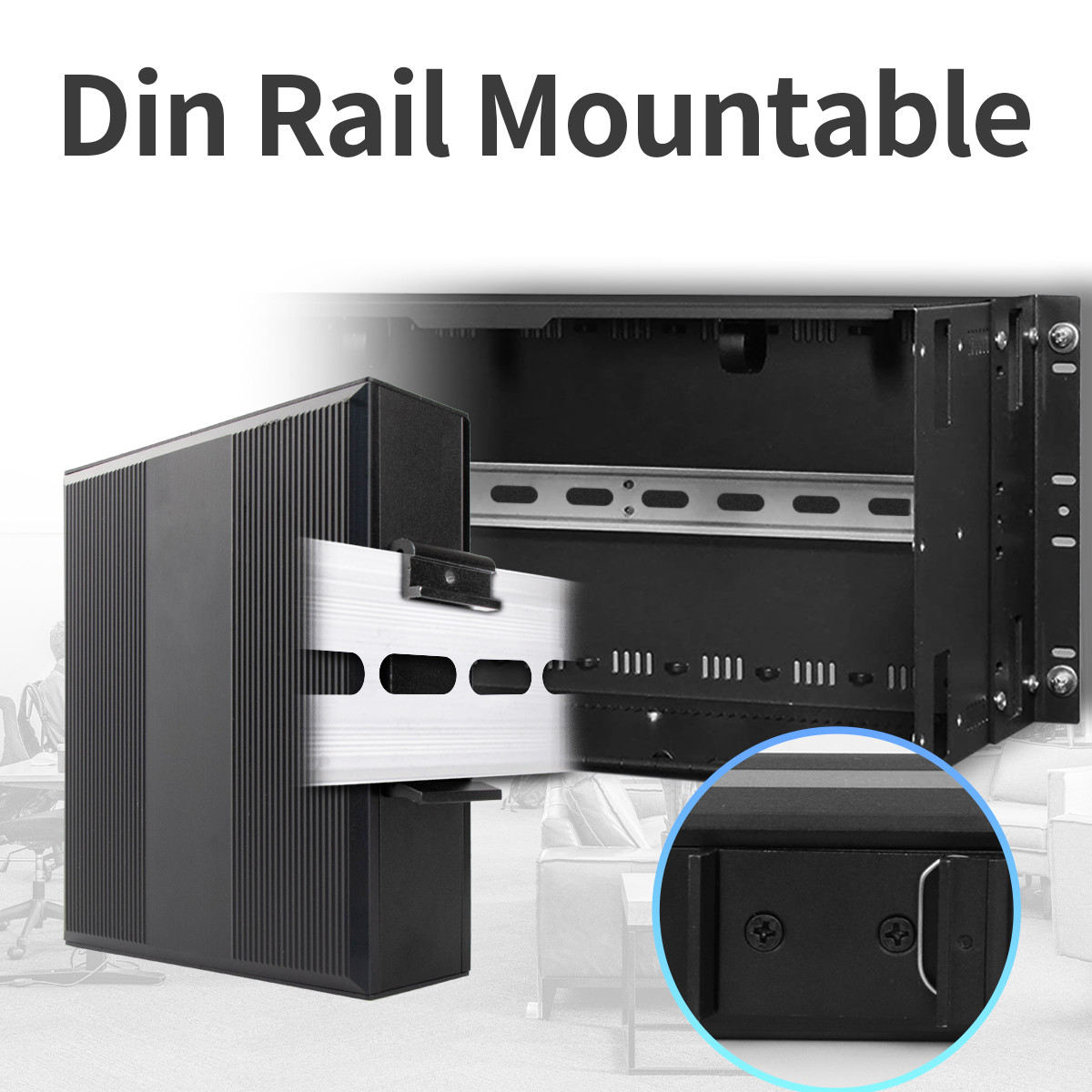

  • DIN rail installation

4 Port PoE Gigabit Unmanaged Ethernet Switch Din Rail 12V 24V 0


Specification of hardened 4 port switch


Product Name 10/100/1000Mbps Industrial Fiber Switch (2F+2TP)

2 x 1000Mpbs SFP ports




2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:8Gbps (non-traffic jam)

Packet Forwarding Rate:5.952Mpps


Queue Buffer:1.75M

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

Input voltage:DC 9-52V

No-load power:5W

Reverse connection:support


Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4


CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method:Din-rail mounting

Weight: 0.35kg

Warranty Replacement within 1 year; 3 years repairing


1 year for commercial products and 3 years for industrial products. Technical support will be offered free.


Products Category Warranty Period
Fiber media converter 1 year
Optical Video Converter 1 year
Fiber Switch 1 year
Ethernet Extender 1 year
Fiber Modem 1 year
PDH Multiplexer 1 year
Industrial switch 3 years


Application of giga switch din rail


4 Port PoE Gigabit Unmanaged Ethernet Switch Din Rail 12V 24V 1


Optional Models of industrial network switch


4 Port PoE Gigabit Unmanaged Ethernet Switch Din Rail 12V 24V 2




1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.


2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.


3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.


4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.
