Gigabit POE POE+ Fiber Optic Converter
Overview
Olycom TA340-PSE-GE 10/100/1000 Mbps copper to fiber media converter
- provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the twisted pair port
- supplys both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras
- performs media conversion as well as providing electric current to the end-device at the remote site
Key Features
Deploying PoE-PSE Media Converters is an ideal solution when PoE-powered network devices need to be installed further than the 100m.
Specification
| Standard |
IEEE802.3(10Mbps), IEEE802.3u (100Mbps), IEEE802.3z(1000Mbps), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE |
| 10/100/1000BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
50/125um(1Km), 62.5/125um MMF (500m), 9/125um SMF (20/40/60/80/100km) |
|
Conversion Mode
Delay Time
|
Store-and-Forward < 10us, straight-through<0.9us |
| Flow control |
Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port |
Auto-MDI/MDIX |
| Fiber Connector |
LC standard, SC/FC optional |
| Wavelength |
1310/1550nm |
| Input Voltage |
48VDC/1A external power supply |
| Power Consumption |
<2.5W |
| PoE pin assignment |
1/2 (V+),3/6 (V-) |
| PoE Output |
-48V, 0.54A, 25W |
| MTBF |
50,000 hours |
| BER |
<1/1000000000 |
| MAC Address Table |
4K |
| Buffer Size |
1.75M |
| Operation Temperature |
0℃~50℃ |
| Storage Temperature |
-20℃~85℃ |
| Storage Humidity |
5%~90% non-condescending |
| Dimensions and Weight |
135mm(L) x 90mm(W) x 28mm(H), Net weight : 0.3kg, Gross weight : 0.5kg |
Application
Ordering Information
| TA340-PSE-GE |
PSE/PoE fiber media converter, 10/100/1000Mbps, single port, 220VAC in -48VDC out, 25W, without SFP module |
| TA340-PSE-GE/S20-SC |
PSE/PoE fiber media converter, 10/100/1000Mbps , single port, 220VAC in -48VDC out, 25W, SMF, dual fiber, 1310nm, 20Km, SC |
| TA540-PSE-GE/S20-SC |
PSE/PoE fiber media converter, 10/100/1000Mbps , single port, 220VAC in -48VDC out, 25W, SMF, single fiber, 1310nm / 1550nm, 20Km, SC |

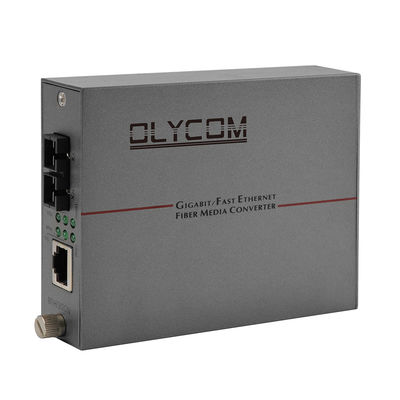

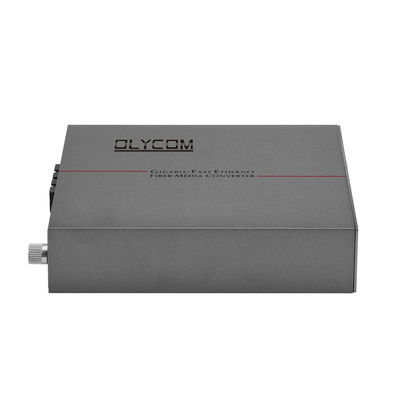

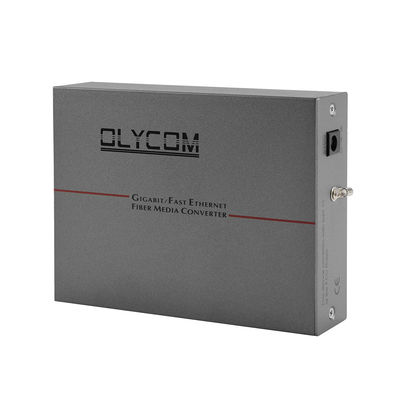

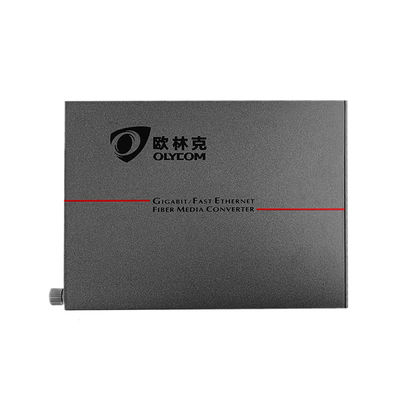

Product Pictures
FAQ
What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
Can I have my own packing box?
Yes, the standard packing box does have not have Chinese letters or logo.
Its fine to customize your own version like putting your logo, model name or slogans on it.
What is your payment terms?
In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.
Do you have any certification?
Yes, our company is ISO9001 certified.
We have CE/FCC/RoHS/E-mark/CCC certificates for our models.
What does the label look like?
There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.
It is available in different languages and contents, so you can add your logo or model name in it.
Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html
