19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter

1 Pcs
MOQ
Negotiable
Price
19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 18 Slots Video Converter Rack Chassis
Power: 220V Dual Power
Operating Temp: -30℃~+75℃
Weight: 5.12kg/piece (Net Weight)
Dimension: 485(L)*300(W)*135(H) Mm
Warranty: 1 Year
High Light:

19inch Media Converter Chassis

,

3U Rack Media Converter Chassis

,

19inch 3u rack mount chassis

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM1918
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 6.12Kg/carton
Delivery Time: 5~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per week
Product Description

19 Inch 3U Rack Chassis For Fiber Optic Video Optic Converter Dual Power AC220V



Introduction

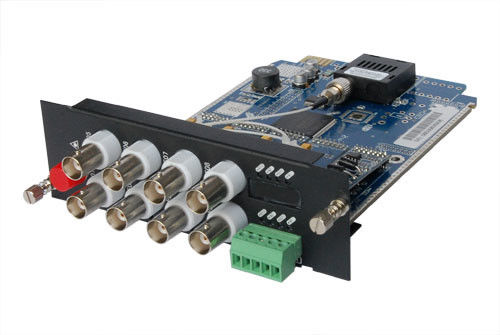

OLYCOM 19 inch 3U video converter rack OM1918V is designed to concentrate OM620 series 1~8 channel video optical receiver cards.

The play-and-plug design provides great convenience in installation.

It can hold 18 pieces of 1~4-ch cards, or 9 pieces of 8-ch cards.



Key Features



  • Lightning-proof solution
  • Dual power supply
  • Robust metal casing
  • Hot plug-and-play with switch power supply
  • Maximum convenience for centralized control



Specification



Slots
Slots quantity 18 slots
Compatibility(with cards) 1~4ch cards(18pcs); 8ch cards(9pcs)
Flexibility Support mixed installation
Power. Environmental. Mechanical
Operating voltage Dual power supply, 220V/-48V
Operating temperature -30℃~+75℃
Storage temperature -40℃~+85℃
MTBF ≥ 5*104 hours
Dimension-standalone 485(L)*300(W)*135(H) mm
Weight 5.12kg/piece (Net Weight), 6.12kg/piece (Gross Weight)





























Ordering Details



OM1918V-220V 19'' 3U rack, 18 slots, dual power supply, 220VAC+220VAC
OM1918V-48V 19'' 3U rack, 18 slots, dual power supply, -48VDC+-48VDC



Application



  • Electronic power oil field, TV station program broadcasting
  • City traffic monitoring system
  • Express way security protection and toll station system

19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter 0

19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter 1



Product Images

19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter 2

19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter 3



19inch Media Converter Chassis , 3u Rack Mount Chassis For Video Optical Converter 4
