10/100Mbps Fiber To Copper Single Mode Media Converter
Introduction
The OM200 series of Ethernet media converters with internal power supply are 10/100Mbps auto-sensing and utilize fiber optics to extend the physical distance range of typical Ethernet links (100m) to 5Km max. on MMF and 100Km max. on SMF.
Key Features
Specification
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX |
50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um single mode fiber cable (20/40/60/80/100km) |
| Conversion Mode Delay Time |
Store-and-Forward < 10us straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 173mm(W) x 128mm(D) x 32mm(H) |
| Weight | Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage | AC100 ~ 240V / 50-60HZ |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Application
Ordering Information
| OM210-FE/SC-A2 | 10/100M, Standalone, dual fiber, multimode, SC, 2km, internal power supply |
| OM210-FE/SC-20 | 10/100M, Standalone, dual fiber, single mode, SC, 20km, internal power supply |
| OM210-FE/SC-40 | 10/100M, Standalone, dual fiber, single mode, SC, 40km, internal power supply |
| OM210-FE/SC-60 | 10/100M, Standalone, dual fiber, single mode, SC, 60km, internal power supply |
| OM210-FE/SC-80 | 10/100M, Standalone, dual fiber, single mode, SC, 80km, internal power supply |
| OM210-FE/SC-100 | 10/100M, Standalone, dual fiber, single mode, SC, 100km, internal power supply |

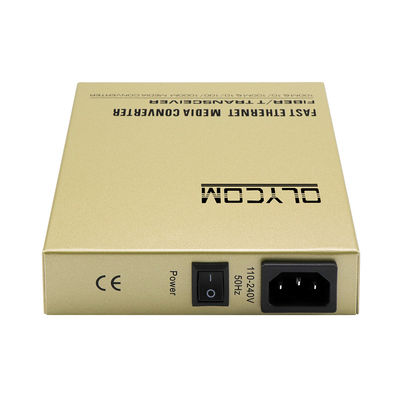

Product Photos
FAQ
Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
