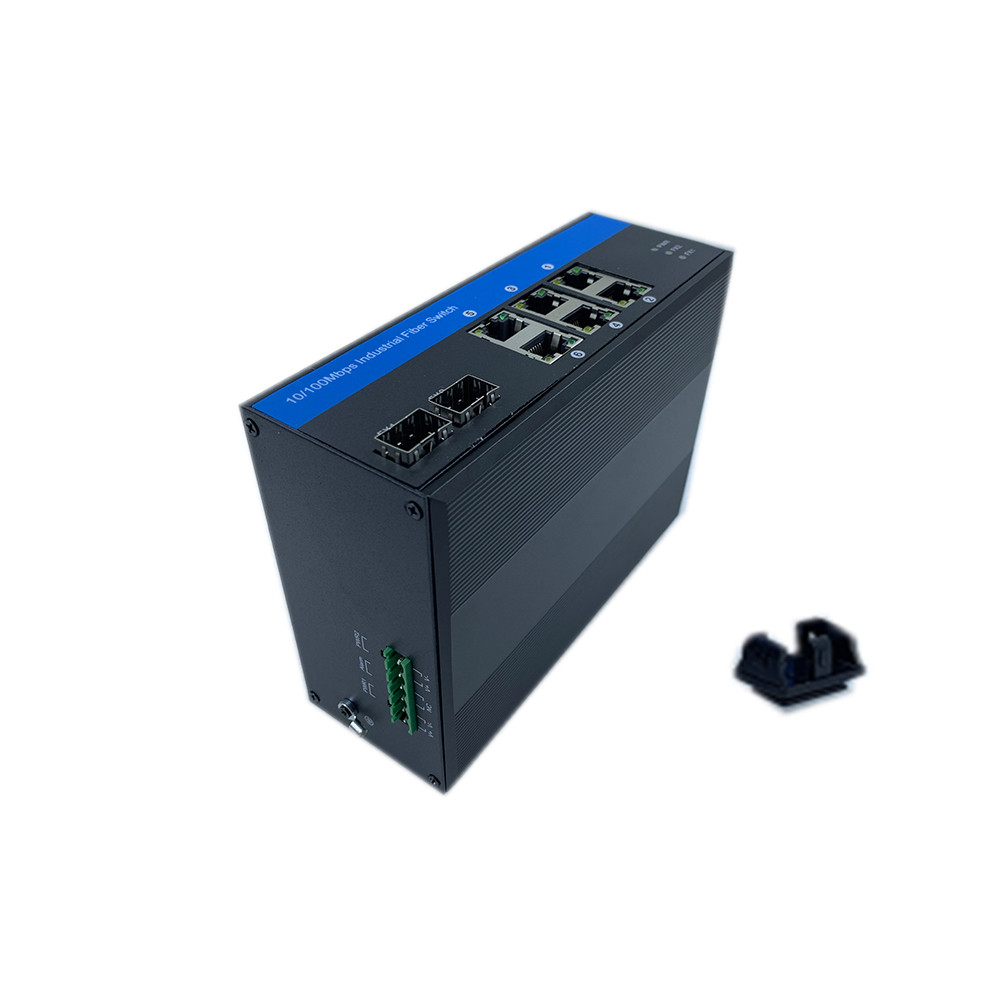

Industrial Unmanaged POE Switch 6 Port

Industrial Unmanaged POE Switch 6 Port
Features Gallery Product Description Request A Quote
Product Name: Unmanaged Poe Switch 10 / 100 Mbps 6 Port Network Switch With 2 SFP Fiber Port
Mounted Way: Din Rail Mounting
Shell: Corrugated Metal Shell
Color: Black
POE Standard: POE AT / AF
Warranty Time: 3 Years
High Light:

EMC Industrial Unmanaged POE Switch


EMC 6 port network switch


6 port Industrial Unmanaged POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP266FE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability: 600 per month
Product Description

Unmanaged Poe Switch 10 / 100 Mbps 6 Port Network Switch With 2 SFP Fiber Port



IM-FP266FE is the 10/100 Mbps industrial Unmanaged POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af power on to 1 ~ 6 RJ45 ports
  • 6 x 10/100Mbps Auto-sensing RJ45 ports
  • 2 x 100Mbps SFP fiber ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • Max power to15.4W under af standard, 30W under at standard to each PoE port
  • Detect the PoE models of electrical equipments.
  • A store-and-forward switching mechanism
  • Operating temperature:-40 ° ~85 ° c
  • Storage temperature:-40°~ 85°C
  • Working humidity:10%~90%,non-condensing

  • Storage humidity:10%~95%,non-condensing

Product Details

  • Transmission mode: storage and forward
  • System bandwidth:40Gbps (non-traffic jam)
  • 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
  • 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
  • Transmission distance: 20Km,40Km,60Km,80Km,100Km
  • LEDs: Power, network, fiber


Model No. IM-FP266FE
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~6)

(802.3at standards required special instructions)

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4


CE Mark, commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP44

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 5 years repairing


Quality Assurance

  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production.
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications.
  5. Always final Inspection before shipment.

Industrial Unmanaged POE Switch 6 Port 0
Industrial Unmanaged POE Switch 6 Port 1
