Full duplex Enterprise Network Switch 1 megabit TX & 1 megabit FX

Full duplex Enterprise Network Switch 1 megabit TX & 1 megabit FX

    • Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX
    • Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX
    • Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX
  • Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX

    Product Details:

    Place of Origin: China
    Brand Name: Hengsion
    Certification: CE, FCC, ROHS
    Model Number: ENR101

    Payment & Shipping Terms:

    Minimum Order Quantity: No less than 50 sets for one order.
    Price: Negotiation
    Packaging Details: Packing in individual boxes, then delivered with outer corrugated cartons.
    Delivery Time: 3-15 working days after prepayment (depending on the stock)
    Payment Terms: T/T at sight, LC, Western Union
    Supply Ability: 3000 sets per month
    Contact Now
    Detailed Product Description
    Input Voltage: Range 9-30VDC Buffer Memory: 2Kb
    Switching Bandwidth: 1Gbps Connection: 5.08mm Industrial Terminal
    Dimension(L*W*H): 110*75*30mm Installation: Wall Mount



    Full duplex Enterprise Network Switch 1 megabit TX & 1 megabit FX



    Introduction:



    HENGSION unmanaged ENR101 Ethernet switches provide 1*100Base FX fiber optic ports and1* 100BaseT(X) fast Ethernet ports. No fan, low power consumption design;

    Its wide operating temperature range and port surge protection design are ideal for application in large flow real-time outdoor environment, and are widely used for occasions including enterprise, intelligent building, cafe, community access or gathering etc., and for industries like finance, education and government etc.



    1 Automatic MDI/MDI-X crossover for plug-and-play

    2 Support IEEE/802.3x full duplex flow control and Backpressure half duplex flow control.

    3 Wire speed forwarding capability of all ports make sure of non-blocking message forwarding.

    4 With power reverse polarity protection.

    5 Support full-loaded operating temperature range -30 to 75℃.

    6 Wall-mount installation

    7 1*100Base T(X) fast Ethernet ports & 1*100Base FX fiber optic ports







    Specification:



    Technology
    Standards IEEE 802.3,802.3u,802.3x
    Interface
    Megabit Ethernet port 10/100 Base-T(X) auto-adaptive RJ45
    Megabit Fiber port 100Base-FX port (SC by default, FC/ST/LC optional)
    Power port 5.08mm industrial terminal
    Switching Features
    Processing Type Store & forward, wire speed switching
    Switching bandwidth 1Gbps
    Buffer Memory 2Kbits
    LED Indicator for
    Power, Ethernet port connection & running status, Fiber port connection & running status
    Power
    Input Voltage Range 9-30VDC
    Connection 5.08mm industrial terminal
    Protection Overload current protection; Reverse polarity protection
    Mechanical
    Dimension(L*W*H) 110*75*30mm
    Installation Wall mount
    Weight 0.2Kg
    Environmental
    Operating Temperature -30℃~+75℃
    Storage Temperature -45℃~+85℃
    Relative Humidity 5~95%,non-condensing
    Warranty
    Warranty Period 2 years

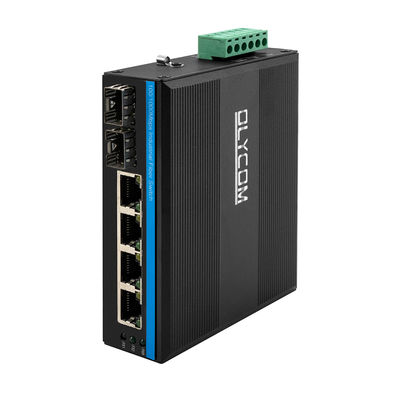

    Product Picture

    Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX





    Ordering Information:



    Available Models Port Interface
    1000Base FX SFP 10/100/1000Base T(X) 100Base F(X) or SFP 100Base T(X)
    ENR101 0 0 1 1



    Package Checklist:



    • Ethernet switch

    • Power adaptor

    • Hardware installation guide(printed)

    • Warranty Card





    Full duplex Enterprise Network Switch 1 megabit TX  & 1 megabit FX
