Megabit Uplink 10/100M 8-Port CCTV PoE Switch

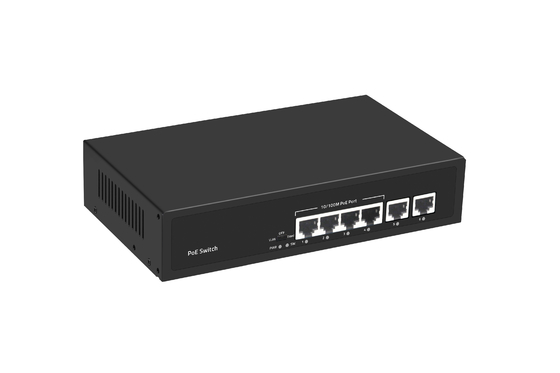

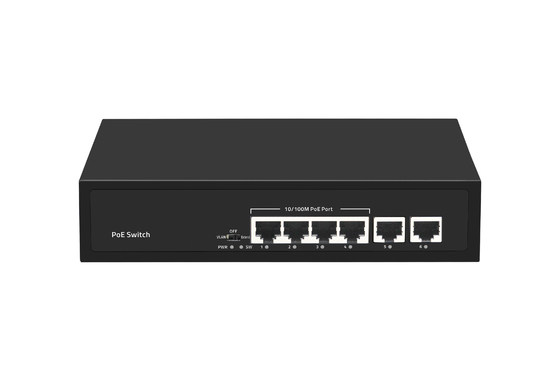

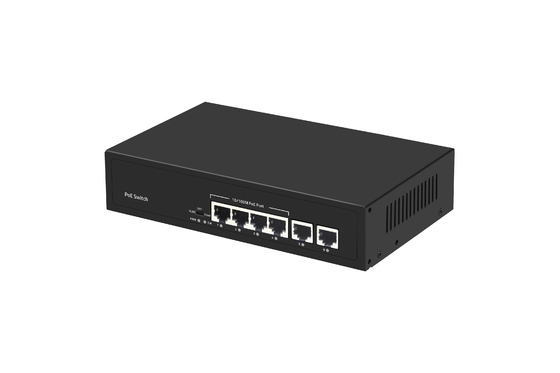

Introduction of 6 port POE switch
6Ports 100M Ethernet Power Switch (PoE Switch), using high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Application of CCTV network switch
Specification of 6 port Ethernet Switch
| I/O Interface | |

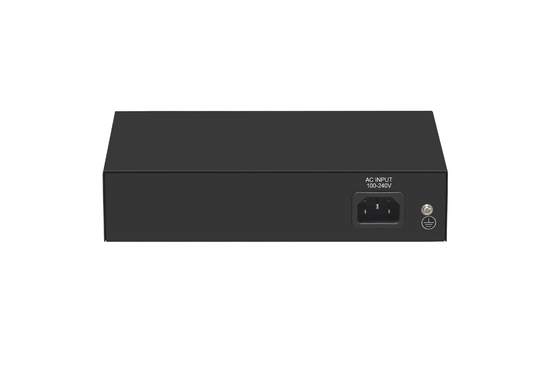

| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 4 Port 10/100M PoE + 2 Port 100M Ethernet Uplink |
| Performance | |
| Switching Capacity | 1.2Gbps |
| Throughput | 0.8928Mpps |
| Packet Buffer | 448Kbit |
| MAC Address | 1K |
| Jumbo Frame | 2Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) |
| Protection | |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Indication | |
| LED Indicators | PWR(power supply),SW(DIP),1-6 Green(Link&Data) |
| DIP Switch |
VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; Extend:Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Mechanical | |
| Structure Size |
Product Dimension : 200mm*118mm*44mm Package Dimension : 245mm*190mm*60mm N.W:0.54kg G.W:0.86kg |
| Packing Info |
Carton MEAS:520*320*400mm Packing Qty:20 units Packing Weight:18.2KG |
| Power Voltage |
Input Voltage :AC 100-240 V Power supply:52V1.05A |
| power |
Product power: maximum 5W POE power: maximum 50W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable) |
Advantage
1. Manufacturing: We are a powerful factory and has been in this industry about 20 years
2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.
3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
4. Small order accepted: Low MOQ accepted. 1pcs are availabel.
5. Insurance: all products 3 years warranty.
