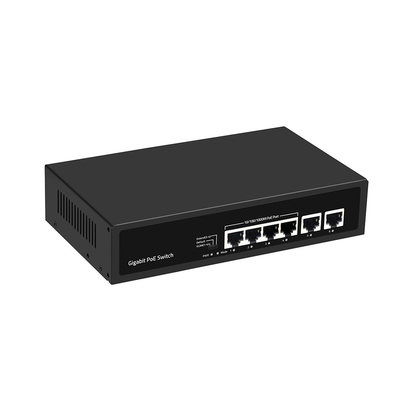

6 Port Full Gigabit 10/100/1000M PoE Ethernet Switch
Features of Commercial PoE Switch
Specification of Gigabit network switch
| I/O Interface | |
| Power | AC 100~240V 50/60Hz |
| Ethernet |
4* Gigabit PoE ports 2* Gigabit Ethernet ports |
| Hardware parameters | |
| Bandwidth | 12Gbps |
| Packet Forwarding Rate | 8.928Mpps |
| Package Cache | 1Mbit |
| Mac Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding mode | Store Forward |
| Protocol Standard | |
| Network Protocol |
IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| PoE Protocol |
IEEE802.3af (15.4 W) IEEE802.3at (30 W) |
| Network Media |
10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX : Cat5 or aboveUTP/STP(≤100m) 1000Base-TX : Cat5 or aboveUTP/STP(≤100m) |
| Safety certification | CE, FCC, RoHS |
| Environment Standard | |
| Working Environment |
Working temperature: - 10~50 ℃ Storage temperature: - 40~70 ℃ Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
| Functional indication | |
| PWR (Power light) | PWR(Power indication), Mode(DIP indication),1-6 Green light(Link&Data) |
| PWR |
On: Powered on Off: Powered off |
| Mode |
On:VLAN(Port isolation) Off:Default(Normal mode) Flashing:Extend(Link extension) |
| 1-6 Green light |
On:Link connection is normal Off:Link not working Flashing:Data transmission |
| DIP switch | VLAN, Default, Extend |
| VLAN | Port isolation: 1-4 ports realize isolation between the each port of the monitoring network and inter working with the uplink ports to protect intranet security. |
| Default | Normal mode, all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive. |
| Extend | In the link extension mode, the 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M. |
| Physical Specification | |
| Structure size |
Product size: 200* 118* 44mm Package size: 245* 190* 60mm Product weight: 0.61Kg Package weight: 0.91Kg |
| Packing information |
Outer box size: 520* 320* 400mm Packing quantity: 20 sets Packing weight: 19.2KG |

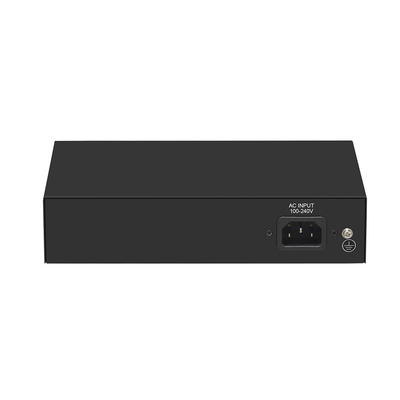

| Supply voltage |
Input voltage: AC 100-240 V 50/60Hz Power supply: 52V1.25A |
| Power |
Mainboard power: maximum 5W POE power: maximum 60W |
| Packing list |
Switch, 1 PCS Power cord, 1PCS Manual and certificate of conformity, 1 PCS |
Our Advantages
FAQ
1 Q: What is warranty time?
A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
2 Q: Do you accept sample order?
A: Yes. Sample order to check our services and quality.
3 Q:Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.
4 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
5 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
