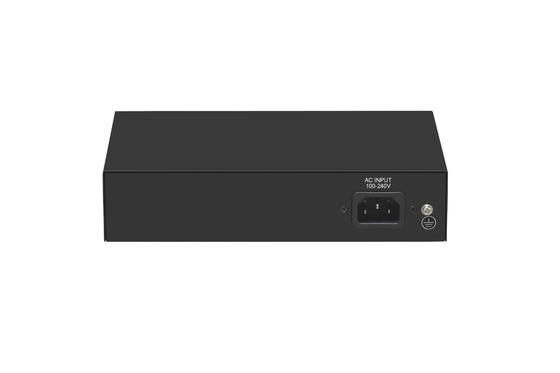

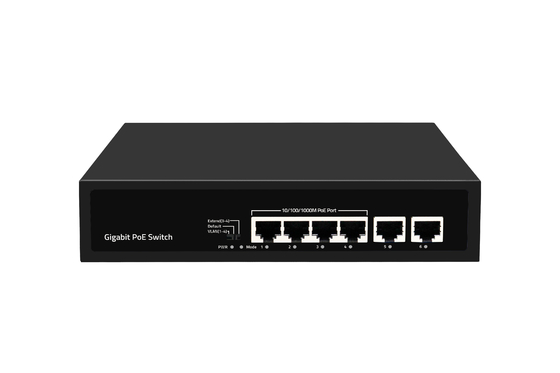

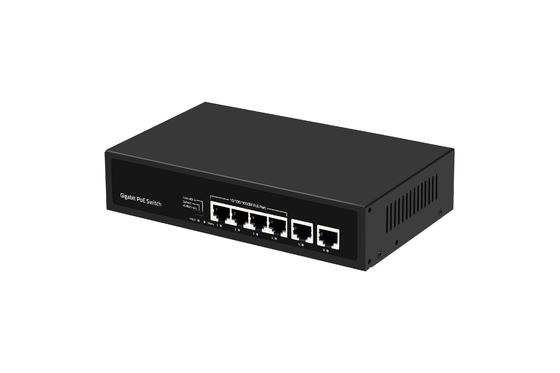

6 port gigabit DC52V1.25A POE Ethernet Switch
Introduction of 10/100/1000mbps POE Switch
The 6-port full Gigabit intelligent standard PoE switch uses high-quality and high-speed network IC and the most stable PoE chip. The PoE ports meet the 802.3af/at standards. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af/ at standards. The intelligent detection of non PoE devices does not provide power, but only transmits data.
PoE technology (Power over Ethernet) refers to Ethernet power supply technology. It refers to providing DC power supply technology for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) while transmitting data signals. These devices that receive DC power supply are referred to as power receiving devices.
Specification of 10/100/1000 POE Ethernet Switch
| I/O Interface | |
| Power | AC 100~240V 50/60Hz |
| Ethernet |
4* Gigabit PoE ports 2* Gigabit Ethernet ports |
| Hardware parameters | |
| Bandwidth | 12Gbps |
| Packet Forwarding Rate | 8.928Mpps |
| Package Cache | 1Mbit |
| Mac Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding mode | Store Forward |
| Protocol Standard | |
| Network Protocol |
IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| PoE Protocol |
IEEE802.3af (15.4 W) IEEE802.3at (30 W) |
| Network Media |
10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX : Cat5 or aboveUTP/STP(≤100m) 1000Base-TX : Cat5 or aboveUTP/STP(≤100m) |
| Safety certification | CE, FCC, RoHS |
