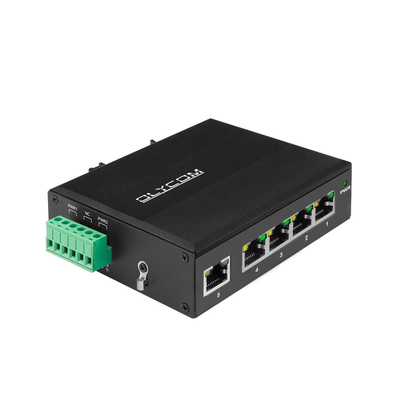

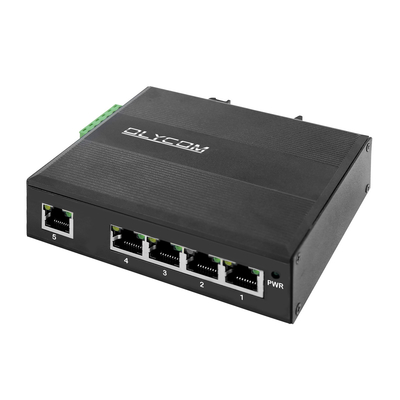

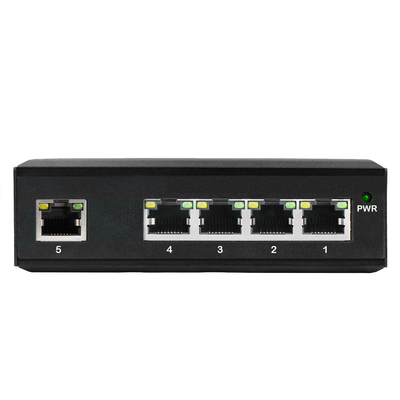

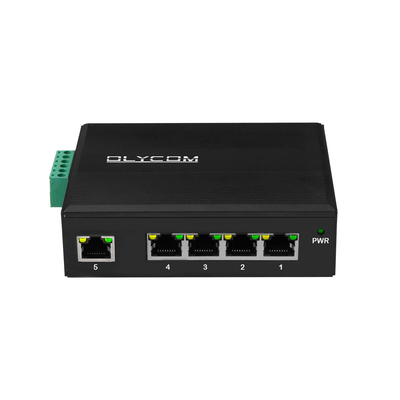

Industrial Ethernet 5 port RJ45 unmanaged IP40 Switch E-Mark
Introduction
Key Features
Specification of Industrial 5 port Ethernet Switch
| Product Name | 10/100/1000Mbps Industrial Ethernet Switch(5TP) |
| Model No. | IM-FS050GE |
| Port |
1 x 10/100/1000Mpbs uplink network port
4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features | Transmission mode:storage and forward System bandwidth:10Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |

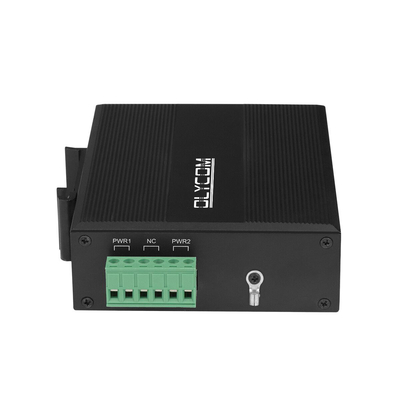

| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection:support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark,commercial, E-mark CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class:IP40 Dimension:114 x 93 x 35mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Application of E-Mark Certified Ethernet Switch
Dimension of 5-port Gigabit switch
Packing box of Din rail unmanaged switch
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5 Q: What is warranty time?
A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
