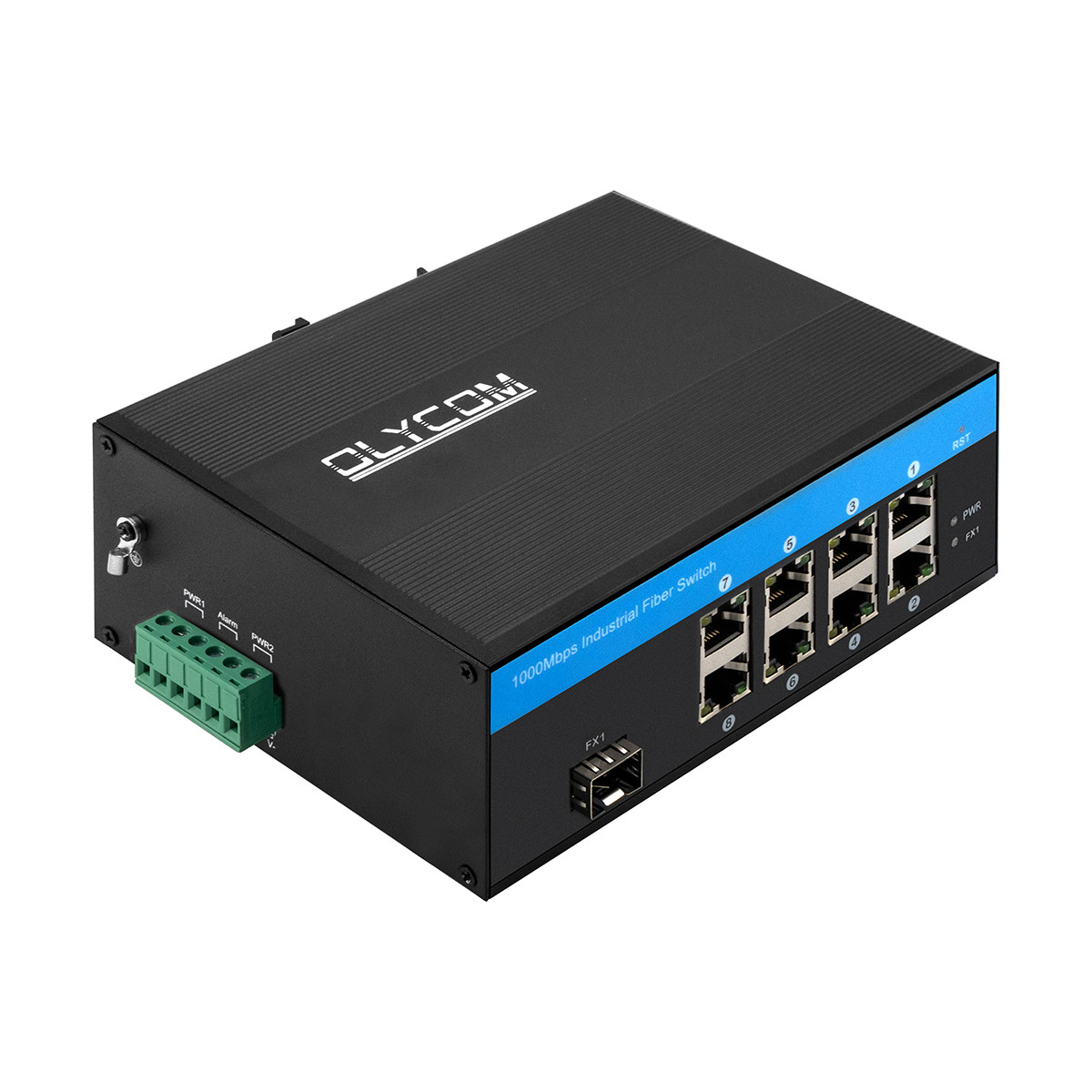

Din Rail Mounting IP40 48v Fiber POE Switch Industrial 8 Port Gigabit

1
MOQ
Negotiable
Price
Din Rail Mounting IP40 48v Fiber POE Switch Industrial 8 Port Gigabit
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Din Rail Ip40 48v Poe 1 Fiber Industrial Poe Switch 8 Port Gigabit
Fiber Ports: 1
POE Ports: 8
Safety Class: IP40
Mounting Method: Din Rail Mounting
Warranty: 3 Years
High Light:

IP40 Fiber POE Switch

,

Industrial 48v Fiber POE Switch

,

Gigabit Industrial Unmanaged POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP188GE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability: 6000 per month
Product Description

Din Rail Ip40 48v Poe 1 Fiber Industrial Poe Switch 8 Port Gigabit



Introduction

8 Port Fiber Switch is the 10/100/1000 Mbps industrial POE switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features

  1. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  2. Auto MDI/MDIX is Supported
  3. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  4. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  5. A store-and-forward switching mechanism



Details

Model No.: IM-FP188GE

Port: 1 x 1000Mpbs SFP ports  SM:1310nm/1550nm,20Km1490nm/1550nm,40~120Km

         MM:1310nm,2Km

         8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Input voltage: DC9-36V

No-load power: 5W

Reverse connection: support

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)



Specification

Network media

10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Environment

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Safety

CE Mark , commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Warranty Replacement within 1year; 5 years repairing



Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4


Quality Assurance

  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production;
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications
  5. Always final Inspection before shipment;



Packing List

User Manual *1 pc

8 Port Industrial POE Fiber Switch *1 pc

Warranty Card *1 pc



Application
Din Rail Mounting IP40 48v Fiber POE Switch Industrial 8 Port Gigabit 0
