Rugged 8 Port 1000mbps Industrial Optical Switch With 4 Fiber Ports

1
MOQ
Negotiable
Price
Rugged 8 Port 1000mbps Industrial Optical Switch With 4 Fiber Ports
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port 10/100/1000 Mbps Industrial Fiber Switch
Ports: 12
Fiber Type: SFP Slot
Device Type: Switch - 8 Ports - Unmanaged
Working Temperature: -45~85℃
Warranty: 3 Years
High Light:

8 port industrial optical switch

,

1000mbps industrial optical switch

,

rugged 8 port optical switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FS480GE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability: 6000 per month
Product Description

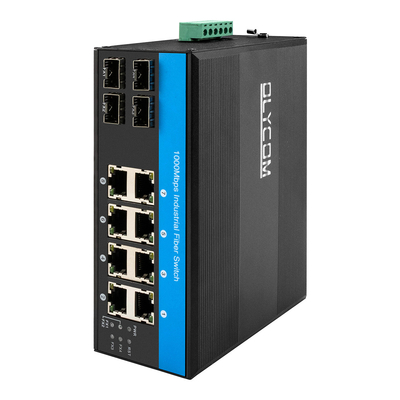

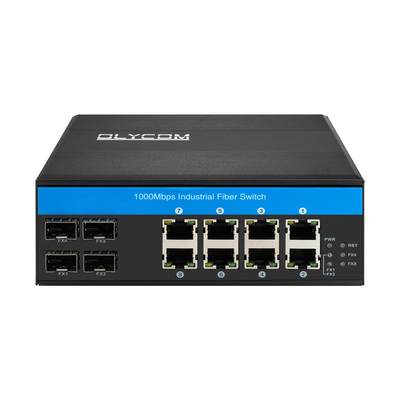

Fiber Switch 8 Port 1000mbps , Rugged Industrial Optical Switch With 4 Fiber Ports



Introduction

8 Port Optical Switch is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features

  1. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  2. Auto MDI/MDIX is Supported
  3. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  4. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  5. A store-and-forward switching mechanism



Specification

Product Name Fiber Switch 8 Port 1000mbps, Industrial Optical Switch With 4 Fiber Ports
Model No. IM-FS480GE
Port

4 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber

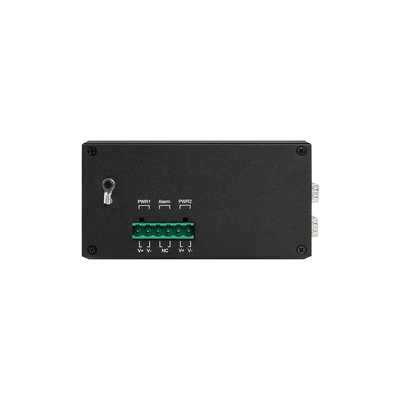

Power supply

Input voltage:DC 9-36V

No-load power:5W

Reverse connection: support

Environment

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety

CE Mark , commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Warranty Replacement within 1year; 5 years repairing


Quality Assurance

  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production;
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications
  5. Always final Inspection before shipment;



Packing List

User Manual *1 pc

8 Port Industrial Optical Switch *1 pc

Warranty Card *1 pc



Application
Rugged 8 Port 1000mbps Industrial Optical Switch With 4 Fiber Ports 0


Rugged 8 Port 1000mbps Industrial Optical Switch With 4 Fiber Ports 1
