Single Mode Fiber To Copper Media Converter , 1.25Gb/S WDM Optical Fiber Converter

1 pair
MOQ
Negotiable
Price
Single Mode Fiber To Copper Media Converter , 1.25Gb/S WDM Optical Fiber Converter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: POE Fiber Optic To Cat6 Converter
Fiber: SC Connector
Rate: 1.25Gb/s, Gigabit Based
POE Standard: Af 15.4W, At 30W
Voltage: DC48V1A
Wavelength: 1310/1550nm
Conversion Mode: Store-and-Forward < 10us
Warranty: 12 Months
High Light:

Single Mode Fiber To Copper Media Converter

,

WDM optical fiber converter

,

1.25Gb/S optical fiber converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: TA540-PSE-GE
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 1.00kg(G.W)
Delivery Time: 3~7 working days
Payment Terms: T/T, Paypal
Supply Ability: 1200 pairs per week
Product Description

48VDC Single Fiber To Copper Gigabit POE PSE Media Converter SC 1310/1550nm



Introduction



  • TA540-PSE-GE copper to fiber media converter provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the twisted pair port
  • supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras
  • Deploying PoE-PSE Media Converters is an ideal solution when PoE-powered network devices need to be installed further than the 100 m
  • distance allowed by twisted pair cabling by using single-mode fiber optic cabling, network managers can install Powered Devices (PD) anywhere around the LAN or enterprise campus.
  • The TA540-PSE-GE series performs media conversion as well as providing electric current to the end-device at the remote site.



Key Features



  1. 1 x 1000Base-FX or SX fiber port
  2. 1 x 10/100/1000Base-TX port for data and power
  3. Support AVB
  4. Rack mounted
  5. Compact premium aluminum case
  6. IEEE802.3af/at compliant
  7. External power supply
  8. Link fault pass through (LFPT)



Parameters



Standard IEEE802.3(10Mbps), IEEE802.3u (100Mbps), IEEE802.3z(1000Mbps), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE
10/100/1000BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
1000BASE-FX 50/125um(1Km), 62.5/125um MMF (500m), 9/125um SMF (20/40/60/80/100km)
Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector LC standard, SC/FC optional
Wavelength 1310/1550nm
Input Voltage 48VDC/1A external power supply
Power Consumption <2.5W



PoE pin assignment 1/2 (V+),3/6 (V-)
PoE Output -48V, 0.54A, 25W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 4K
Buffer Size 1.75M
Operation Temperature 0℃~50℃
Storage Temperature -20℃~85℃
Storage Humidity 5%~90% non-condescending
Dimensions and Weight 135mm(L) x 90mm(W) x 28mm(H), Net weight : 0.3kg, Gross weight : 0.5kg



Application



Single Mode Fiber To Copper Media Converter , 1.25Gb/S WDM Optical Fiber Converter 0

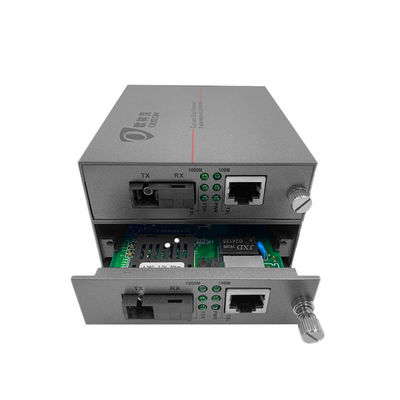

Product Photos

Single Mode Fiber To Copper Media Converter , 1.25Gb/S WDM Optical Fiber Converter 1

Single Mode Fiber To Copper Media Converter , 1.25Gb/S WDM Optical Fiber Converter 2
