4ch Cctv Camera Video Converter BNC To Fiber Media Converter Rack Mountable
Overview
Name: optical video transmitter and receiver
Model: OM610-4V↑WT/R, we support your model
Function: transmit 4ch video signals on optical fiber
Distance: 20Km to 80KM on single mode fiber, 1km on multimode fiber
Features
Available in standalone and 3U rack
Technical Parameters
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 4ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 179mm ×128.5mm ×28.5mm |
| Weight | 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
Ordering Information
| A | Audio |
| D | Data |
| K | Alarm (I/O, contact closure) |
| P | Telephone |
| E | Ethernet |
| M,W | M-Multi-mode, W-Single mode |
| S,U | S-1310nm, U-1550nm |
| T,R | T -Transmitter, R-Receiver |
| FC,ST,SC,LC | Fiber connector type |
| ↑,↓, ↑↓ | ↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional |
| 1,2,3,… | Digits ahead of signal-quantity of required channel |
| 05, 20, 40… | Digits next to fiber connector-working distance |
| OM610-4V↑WT/R-FC20 | 4ch video Tx, single-mode, single fiber, 20Km, FC connector |
| OM610-4V↑MT/R-FC1 | 4ch video Tx, multi-mode, single fiber, 1Km, FC connector |
Application
Industrial monitoring (airport, chemical plant, railway, etc.)
City traffic monitoring system

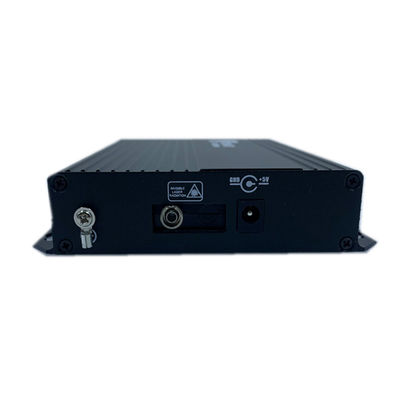

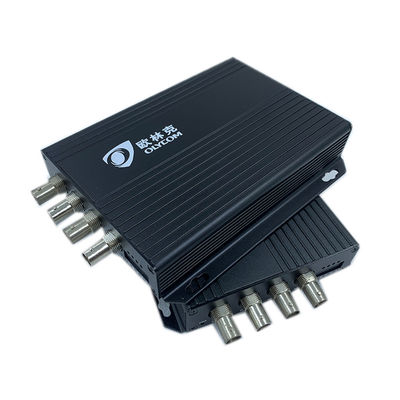

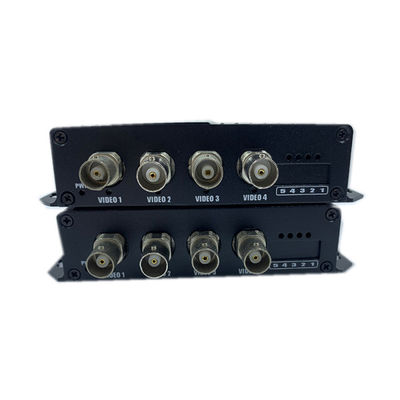

Product Images
